Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALGNE22611DN-GN ILL PB GLSS-LNS XFRMR LED 20 |
0 |
|
- |
- | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC/DC) | 110 V | 24 V | Round, Button | - | Green | LED, Green | 200 ~ 220 VAC | Screw Terminal | IP65 - Dust Tight, Oil and Water Resistant | - | Circular - 30.50mm Dia | -25°C ~ 55°C |
|
|
ALGNE22611DN-RILLUMINATED PUSHBUTTON 30MM |
0 |
|
- |
- | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC/DC) | 110 V | 24 V | Round, Button | - | Red | LED, Red | 200 ~ 220 VAC | Screw Terminal | IP65 - Dust Tight, Oil and Water Resistant | - | Circular - 30.50mm Dia | -25°C ~ 55°C |
|
|
NX302FB1R-61TACTICAL PUSHBUTTON SWITCH |
0 |
|
- |
NX | Bag | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 10A (AC/DC) | 115 V | 28 V | Round, Plunger | No Marking | Red | - | - | Solder Lug | Dust Proof | - | - | - |
|
|
AML21GBA2ECUNSEALED OI-PB SWITCH |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EUS-14-132.025-1892BX(14-132.025-1892BX) PB RND W/RED |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IZNR1F4ANL0GSWITCH PB PUSHBUTTON SPST 24V |
0 |
|
- |
IZ | Bulk | Active | Panel Mount, Rear | Standard, Illuminated | SPST | Off-On | 100mA (DC) | - | 24 V | Round, Button | No Marking | Silver | LED, Green | 3.2 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -40°C ~ 85°C |
|
|
NX304GB1W-61TACTICAL PUSHBUTTON SWITCH |
0 |
|
- |
NX | Bag | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 115 V | 28 V | Round, Plunger | No Marking | White | - | - | Solder Lug | Dust Proof | - | - | - |
|
|
NX304GB1R-61TACTICAL PUSHBUTTON SWITCH |
0 |
|
- |
NX | Bag | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 115 V | 28 V | Round, Plunger | No Marking | Red | - | - | Solder Lug | Dust Proof | - | - | - |
|

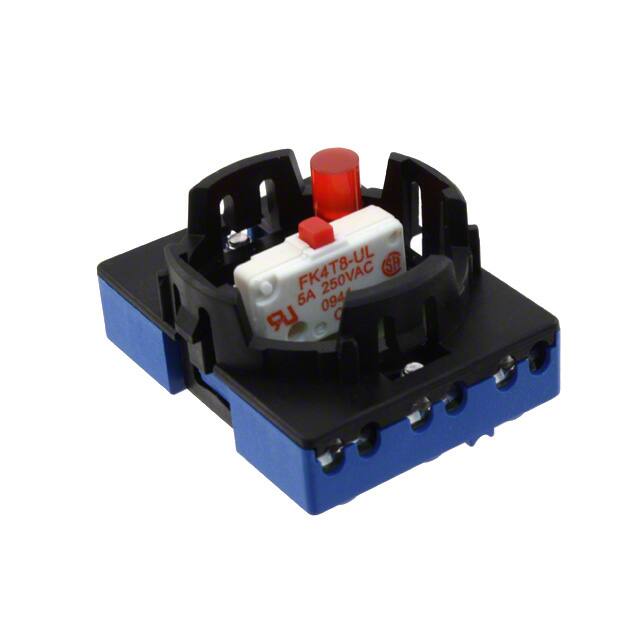

LPI5106R1K51711SWITCH PUSHBUTTON DPST 5A 12V |
0 |
|
Datasheet |
LPI | Tray | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 5A (DC) | - | 12 V | Round, Button, Flush | No Marking | White | LED, Red | 6 VDC | Screw Terminal | IP53 - Dust Protected, Water Resistant | Tactile Feedback | Circular - 38.10mm Dia | -20°C ~ 65°C |
|
A6X30142238ILLUMINATED PUSHBUTTON. WHITE |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | White | LED, White | 230 VAC | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30143065ILLUMINATED PUSHBUTTON. BLUE |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Blue | LED, Blue | 230 VAC | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30142205ILLUMINATED PUSHBUTTON. RED |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Red | LED, Red | 230 VAC | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30142249ILLUMINATED PUSHBUTTON. CLEAR |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Clear | LED, White | 230 VAC | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30142226ILLUMINATED PUSHBUTTON. GREEN |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Green | LED, Green | 230 VAC | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30143029ILLUMINATED PUSHBUTTON. YELLOW |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Yellow | LED, Yellow | 230 VAC | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
3SU11300AB203CA0PUSHBUTTON, MOM, RED, FLUSH |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Red | - | - | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
LW1B-A3C2M-R22MM PUSHBUTTON RED |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Round, Button, Mushroom | - | Red | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
AV031001A200PUSHBUTTON SWITCH AV SECURITY |
0 |
|
Datasheet |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 1A (AC) | 250 V | - | Round, Button, Flush | - | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.20mm Dia | -30°C ~ 70°C |
|
|
AV031001A2PUSHBUTTON SWITCH AV SECURITY |
0 |
|
Datasheet |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 1A (AC) | 250 V | - | Round, Button, Flush | - | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.20mm Dia | -30°C ~ 70°C |
|
|
XALD213H72 STATION WITH 1 AND 0 |
0 |
|
Datasheet |
Harmony XALD | Box | Obsolete | Panel Mount, Front | Standard | - | - | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Green, Red | - | - | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
