Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HW7D-B12F1111-GR1HW DUAL PB MMNTRY FLSH/EXTND T |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard | 4PST-2NO/2NC | On-Mom, Off-Mom | 10A (AC/DC) | 110 V | 24 V | Rectangular, Button | - | Green, Red | - | - | Screw Terminal | IP40 | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
HW7D-B11F2002-WB1HW DUAL PB MMNTRY FLSH/FLSH T- |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard | 4PST-2NO/2NC | On-Mom, Off-Mom | 10A (AC/DC) | 110 V | 24 V | Rectangular, Button, Flush | - | Black, White | - | - | Screw Terminal | IP40 | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
HW7D-B12F2020-GR1HW DUAL PB MMNTRY FLSH/EXTND T |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard | 4PST-NO | Off-Mom | 10A (AC/DC) | 110 V | 24 V | Rectangular, Button | - | Green, Red | - | - | Screw Terminal | IP40 | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
HW7D-B12F2020-WB1HW DUAL PB MMNTRY FLSH/EXTND T |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard | 4PST-NO | Off-Mom | 10A (AC/DC) | 110 V | 24 V | Rectangular, Button | - | Black, White | - | - | Screw Terminal | IP40 | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
HW7D-B12F2002-WB1HW DUAL PB MMNTRY FLSH/EXTND T |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard | 4PST-2NO/2NC | On-Mom, Off-Mom | 10A (AC/DC) | 110 V | 24 V | Rectangular, Button | - | Black, White | - | - | Screw Terminal | IP40 | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
HW7D-B11F1111-GR1HW DUAL PB MMNTRY FLSH/FLSH T- |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard | 4PST-2NO/2NC | On-Mom, Off-Mom | 10A (AC/DC) | 110 V | 24 V | Rectangular, Button, Flush | - | Green, Red | - | - | Screw Terminal | IP40 | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
HW7D-B12F1111-WB1HW DUAL PB MMNTRY FLSH/EXTND T |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard | 4PST-2NO/2NC | On-Mom, Off-Mom | 10A (AC/DC) | 110 V | 24 V | Rectangular, Button | - | Black, White | - | - | Screw Terminal | IP40 | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
HW7D-B11F2020-WB1DUAL PB MMNTRY FLSH/FLSH T-2NO |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard | 4PST-NO | Off-Mom | 10A (AC/DC) | 110 V | 24 V | Rectangular, Button, Flush | - | Black, White | - | - | Screw Terminal | IP40 | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
HW7D-B11F2002-GR1HW DUAL PB MMNTRY FLSH/FLSH T- |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard | 4PST-2NO/2NC | On-Mom, Off-Mom | 10A (AC/DC) | 110 V | 24 V | Rectangular, Button, Flush | - | Green, Red | - | - | Screw Terminal | IP40 | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
HW7D-B11F1111-WB1HW DUAL PB MMNTRY FLSH/FLSH T- |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard | 4PST-2NO/2NC | On-Mom, Off-Mom | 10A (AC/DC) | 110 V | 24 V | Rectangular, Button, Flush | - | Black, White | - | - | Screw Terminal | IP40 | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
HW7D-B12F2002-GR1HW DUAL PB MMNTRY FLSH/EXTND T |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard | 4PST-2NO/2NC | On-Mom, Off-Mom | 10A (AC/DC) | 110 V | 24 V | Rectangular, Button | - | Green, Red | - | - | Screw Terminal | IP40 | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
HW7D-B11F2020-GR1HW DUAL PB MMNTRY FLSH/FLSH T- |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard | 4PST-NO | Off-Mom | 10A (AC/DC) | 110 V | 24 V | Rectangular, Button, Flush | - | Green, Red | - | - | Screw Terminal | IP40 | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
A6X30144202PUSHBUTTON. BLUE |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Blue | - | - | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30143054PUSHBUTTON. CLEAR |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Clear | - | - | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|

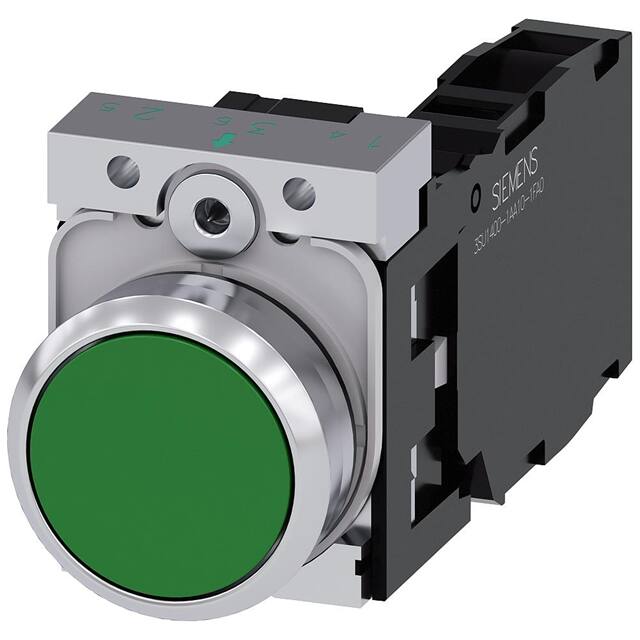

A6X30142965PUSHBUTTON. GREEN |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Green | - | - | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
LW1B-A3C1-R22MM PUSHBUTTON RED |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Round, Button, Mushroom | - | Red | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
LW1B-A3C2-R22MM PUSHBUTTON RED |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Round, Button, Mushroom | - | Red | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
LW1B-A3C2V-R22MM PUSHBUTTON RED |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Round, Button, Mushroom | - | Red | - | - | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
LW1B-A3C2V-SPB DPDT MUSH PCB |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Round, Button, Mushroom | - | Blue | - | - | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
LW1B-A3C2-B22MM PUSHBUTTON BLACK |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Round, Button, Mushroom | - | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
Pushbutton Switches Electronic Components
Explore Pushbutton Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
