Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LB7ML-A1T13PWLB 16MM ILLUMINATED PB SPDT PW |
0 |
|
- |
LB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | - | White | LED, White | 12 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 18.20mm x 18.20mm | -25°C ~ 55°C |
|
|
LB7ML-A1T13YLB 16MM ILLUMINATED PB SPDT Y |
0 |
|
- |
LB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | - | Yellow | LED, Yellow | 12 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 18.20mm Dia | -25°C ~ 55°C |
|
|
LB7ML-A1T14VPWLB 16MM ILLUMINATED PB SPDT PW |
0 |
|
- |
LB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | - | White | LED, White | 24 VAC/DC | PC Pin | IP65 - Dust Tight, Water Resistant | - | Square - 18.20mm x 18.20mm | -25°C ~ 55°C |
|
|
LB7ML-A1T13VSLB 16MM ILLUMINATED PB SPDT S |
0 |
|
- |
LB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | - | Blue | LED, Blue | 12 VAC/DC | PC Pin | IP65 - Dust Tight, Water Resistant | - | Square - 18.20mm x 18.20mm | -25°C ~ 55°C |
|
|
LB6ML-A1T14YLB 16MM ILLUMINATED PB SPDT Y |
0 |
|
- |
LB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Round, Button, Flush | - | Yellow | LED, Yellow | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 18.20mm Dia | -25°C ~ 55°C |
|
|
LB7ML-A1T13VYLB 16MM ILLUMINATED PB SPDT Y |
0 |
|
- |
LB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | - | Yellow | LED, Yellow | 12 VAC/DC | PC Pin | IP65 - Dust Tight, Water Resistant | - | Square - 18.20mm x 18.20mm | -25°C ~ 55°C |
|
|
LB6ML-A1T14VYLB 16MM ILLUMINATED PB SPDT Y |
0 |
|
- |
LB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Round, Button, Flush | - | Yellow | LED, Yellow | 24 VAC/DC | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 18.20mm Dia | -25°C ~ 55°C |
|
|
LB7ML-A1T14SLB 16MM ILLUMINATED PB SPDT S |
0 |
|
- |
LB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | - | Blue | LED, Blue | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 18.20mm x 18.20mm | -25°C ~ 55°C |
|
|
LB7ML-A1T14PWLB 16MM ILLUMINATED PB SPDT PW |
0 |
|
- |
LB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | - | White | LED, White | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 18.20mm x 18.20mm | -25°C ~ 55°C |
|
|
LB6ML-A1T51PWLB 16MM ILLUMINATED PB SPDT PW |
0 |
|
- |
LB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Round, Button, Flush | - | White | LED, White | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 18.20mm Dia | -25°C ~ 55°C |
|
|
LB6ML-A1T51SLB 16MM ILLUMINATED PB SPDT S |
0 |
|
- |
LB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Round, Button, Flush | - | Blue | LED, Blue | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 18.20mm Dia | -25°C ~ 55°C |
|
|
LB6ML-A1T51YLB 16MM ILLUMINATED PB SPDT Y |
0 |
|
- |
LB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Round, Button, Flush | - | Yellow | LED, Yellow | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 18.20mm Dia | -25°C ~ 55°C |
|
XB4BP51HARMONY XB4, PUSH BUTTON, METAL, |
0 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Standard | SPST-NO | On-Off | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button | - | Yellow | - | - | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
XB5AP21HARMONY XB5, PUSH BUTTON, PLASTI |
0 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Standard | SPST-NO | On-Off | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button | - | Black | - | - | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
|
XB5AP51NON-ILLUM CLEAR BOOT-YELLOW EXTE |
0 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button | - | Yellow | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
|
AV190003A900PUSHBUTTON SWITCH AV SECURITY |
0 |
|
Datasheet |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 4A (DC) | - | 48 V | Round, Button, Domed | - | Silver | - | - | Screw Terminal | - | - | Circular - 19.20mm Dia | -30°C ~ 70°C |
|

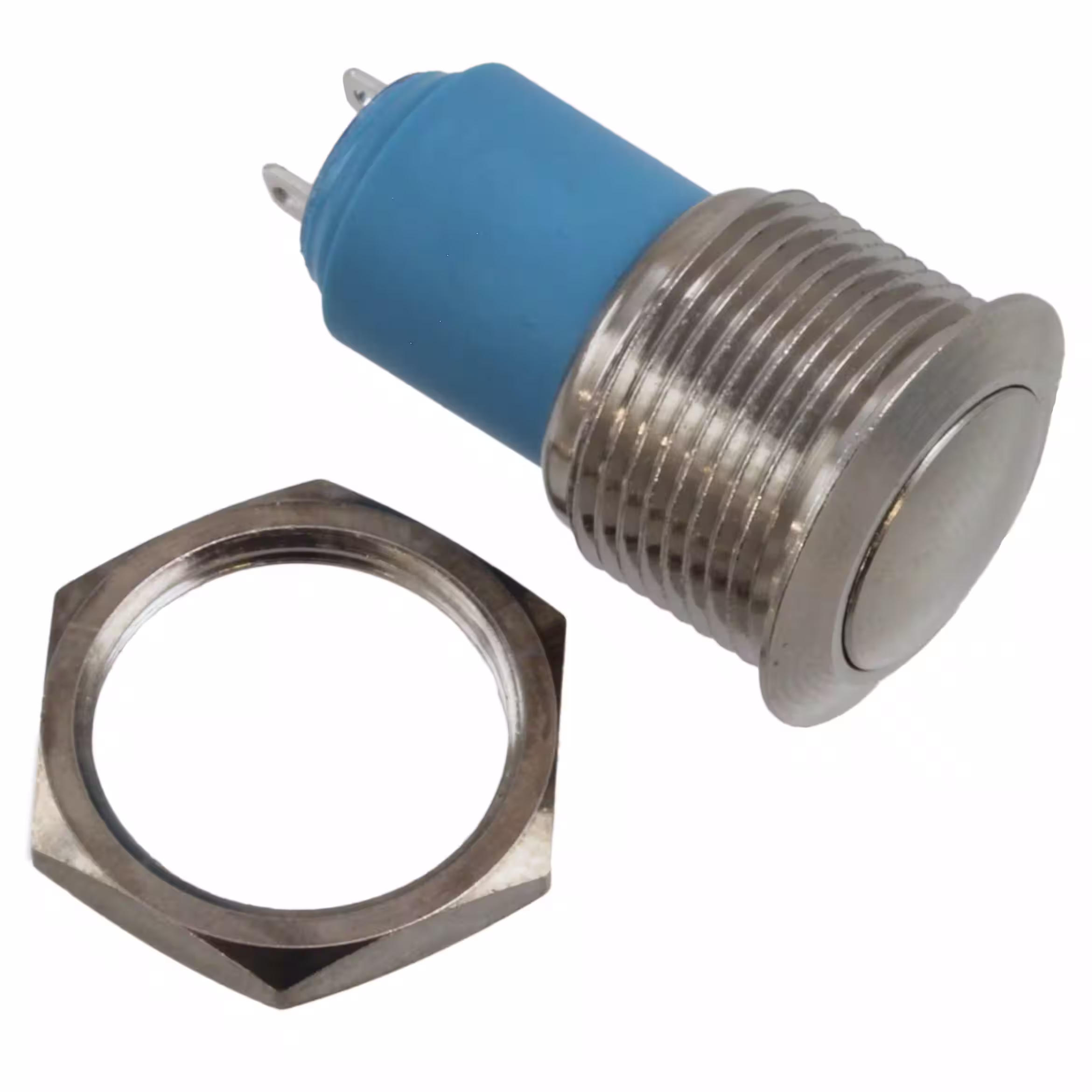

AV1611A200SWITCH PUSHBUTTON SPST 1.5A 250V |
0 |
|
Datasheet |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST | Off-On | 1.5A (AC), 1A (DC) | 250 V | 24 V | Round, Button, Domed | No Marking | Silver | - | - | Solder Lug | IP54 - Dust Protected, Water Resistant | - | Circular - 16.20mm Dia | -30°C ~ 70°C |
|
|
NX201002B-30TACTICAL PUSHBUTTON SWITCH |
0 |
|
- |
NX | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 115 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | - | - | - |
|
|
MML21HA3BAZXXXX20SWITCH PUSHBUTTON SPDT 0.25A 30V |
0 |
|
- |
MML21 | Bulk | Obsolete | Panel Mount, Front | Standard | SPDT | On-Mom | 250mA (DC) | - | 30 V | Square, Button | No Marking | Black | - | - | PC Pin | - | Tactile Feedback | Square - 10.24mm x 10.24mm | -18°C ~ 65°C |
|
|
IZPR1F422L0SPUSHBUTTON SWITCH FD DBLE ICON |
0 |
|
- |
IZ | Bulk | Active | Panel Mount, Rear | Standard, Illuminated | SPST | Off-On | 100mA (DC) | - | 24 V | Round, Button, Domed | - | Black | LED, Red | 2.1 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 16.10mm Dia | -40°C ~ 85°C |
Pushbutton Switches Electronic Components
Explore Pushbutton Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
