Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LW6L-M1C64MW25MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button, Flush | - | White | LED, White | 24 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 25.20mm Dia | -25°C ~ 50°C |
|
|
LW6GB-A1C2VLAPUSH BUTTON NON ILLUMINATED |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Round, Button, Full Guard | - | Amber | - | - | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 25.30mm Dia | -25°C ~ 60°C |
|
|
LW6GB-A1C2VLGPUSH BUTTON NON ILLUMINATED |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Round, Button, Full Guard | - | Green | - | - | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 25.30mm Dia | -25°C ~ 60°C |
|
|
ABQW122-G22MM PUSHBUTTON GREEN |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LW1B-A3C6-R22MM PUSHBUTTON RED |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button, Mushroom | - | Red | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
LW1B-A3C6-B22MM PUSHBUTTON BLACK |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button, Mushroom | - | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
AL6Q-M24P-JW-ENGRAVEDPUSH BUTTON 16MM SQUARE |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AYLD312611N-(W)TWTD LAMP |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
XB6AF4B5BCOMPLETE ILLUMINATED PUSH BUTTON |
0 |
|
Datasheet |
Harmony XB6 | Box | Obsolete | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 3A (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Red | LED, Red | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
XB6DW1B5BCOMPLETE ILLUMINATED PUSH BUTTON |
0 |
|
Datasheet |
Harmony XB6 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 3A (AC), 220mA (DC) | 120 V | 125 V | Rectangular, Button, Flush | - | White | LED, White | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
XB6DF3B5BCOMPLETE ILLUMINATED PUSH BUTTON |
0 |
|
Datasheet |
Harmony XB6 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 3A (AC), 220mA (DC) | 120 V | 125 V | Rectangular, Button, Flush | - | Green | LED, Green | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
XB6DW3B5BCOMPLETE ILLUMINATED PUSH BUTTON |
0 |
|
Datasheet |
Harmony XB6 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 3A (AC), 550mA (DC) | 120 V | 125 V | Rectangular, Button, Flush | - | Green | LED, Green | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|

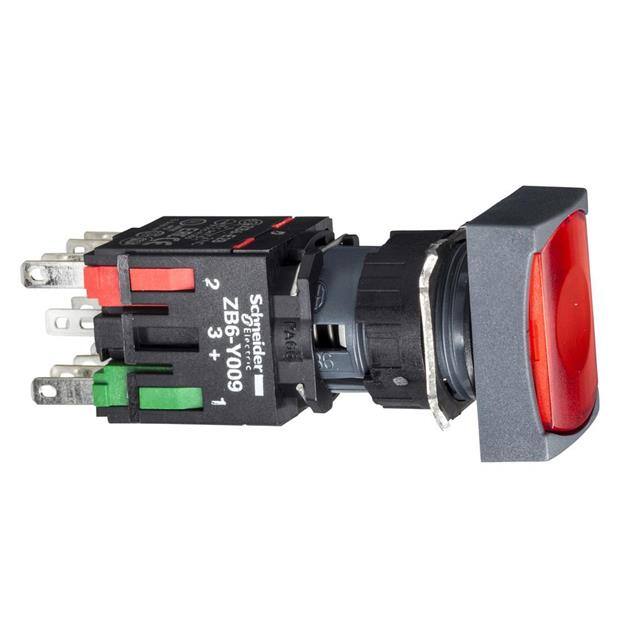

XB6DW4B5BCOMPLETE ILLUMINATED PUSH BUTTON |
0 |
|
Datasheet |
Harmony XB6 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 3A (AC), 220mA (DC) | 120 V | 125 V | Rectangular, Button, Flush | - | Red | LED, Red | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
XB6DF4B5BCOMPLETE ILLUMINATED PUSH BUTTON |
0 |
|
Datasheet |
Harmony XB6 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 3A (AC), 220mA (DC) | 120 V | 125 V | Rectangular, Button, Flush | - | Red | LED, Red | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
30873-0030MM MOM 65MM MUSH 1NO & 1NC |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IRR3F462L0SPUSHBUTTON SWITCH FD DBLE ICON |
0 |
|
- |
IR | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 200mA (AC/DC) | 250 V | 48 V | Round, Button, Domed | - | Red | LED, Red | 2 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 16.20mm Dia | -40°C ~ 85°C |
|
|
LBW6MB-A1T2BLBW FLUSH PB MAIN. BLACK |
0 |
|
- |
LBW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
LBW6MB-A1T2GLBW FLUSH PB MAIN. GREEN |
0 |
|
- |
LBW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Green | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
LBW6MB-A1T2RLBW FLUSH PB MAIN. RED |
0 |
|
- |
LBW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Red | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
LBW6MB-A1T2SLBW FLUSH PB MAIN. BLUE |
0 |
|
- |
LBW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Blue | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
