Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LW1L-M1C60-ALW ILL RND PB DPDT |
0 |
|
Datasheet |
LW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Amber | LED, Amber | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
LW2L-A1C50-GDLED SQ PB SPDT |
0 |
|
Datasheet |
LW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Square, Button, Flush | - | Green | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 25.30mm Dia | -25°C ~ 50°C |
|
|
LW1L-M1C60-SLW ILL PB RND DPDT SLDR/TAB SI |
0 |
|
Datasheet |
LW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Blue | LED, Blue | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
LW1L-M1C60-GDILL RND DPDT |
0 |
|
Datasheet |
LW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button, Flush | - | Green | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 25.30mm Dia | -25°C ~ 50°C |
|
|
LW2L-A1C50-WILL SQ PB SPDT |
0 |
|
Datasheet |
LW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Square, Button | - | White | LED, White | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
LW2L-A1C50-ALW SQUARE PB SPDT |
0 |
|
Datasheet |
LW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Square, Button | - | Amber | LED, Amber | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
LW2L-M1C60-GDIL SQ PB DPDT |
0 |
|
Datasheet |
LW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Square, Button, Flush | - | Green | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 25.30mm Dia | -25°C ~ 50°C |
|
|
LW2L-M1C60-R22MM ILL PB SQ SOLDER/TAB |
0 |
|
Datasheet |
LW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Square, Button | - | Red | LED, Red | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
LW2L-M1C60-S22MM ILL PB SQ SOLDER/TAB |
0 |
|
Datasheet |
LW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Square, Button | - | Blue | LED, Blue | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
LW2L-M1C60-W22MM ILL PB SQ SOLDER/TAB |
0 |
|
Datasheet |
LW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Square, Button | - | White | LED, White | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
LW2L-M1C60-AILL SQ PB DPDT |
0 |
|
Datasheet |
LW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Square, Button | - | Amber | LED, Amber | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
3-102-618MSM MECHANICAL METAL LINE SWITCH |
0 |
|
Datasheet |
MSM | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Silver | LED, Red | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 16.10mm Dia | -25°C ~ 85°C |
|

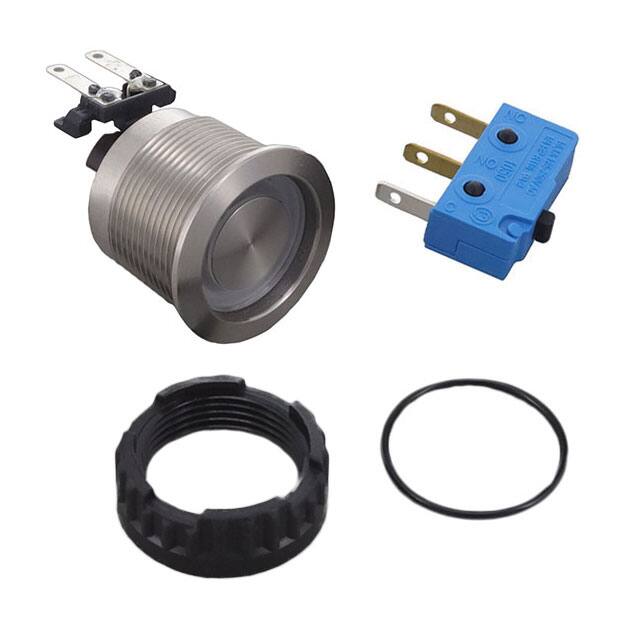

3-102-621MSM MECHANICAL METAL LINE SWITCH |
0 |
|
Datasheet |
MSM | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Silver | LED, Green | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 16.10mm Dia | -25°C ~ 85°C |
|
3-102-623MSM MECHANICAL METAL LINE SWITCH |
0 |
|
Datasheet |
MSM | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 10A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Green | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 16.10mm Dia | -25°C ~ 85°C |
|

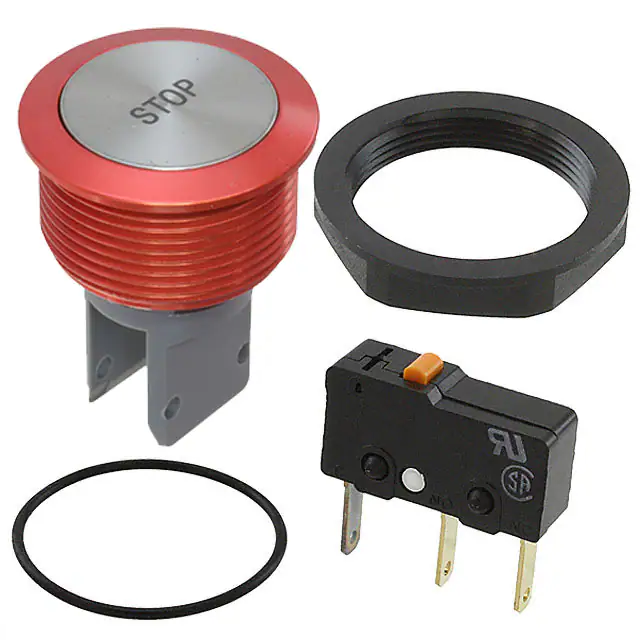

1241.6632.3120057SWITCH PUSHBUTTON SPDT 5A 250V |
0 |
|
Datasheet |
MSM | Tray | Obsolete | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 5A (AC) | 250 V | - | Round, Button, Flush | No Marking | Red | - | - | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 22.10mm Dia | -25°C ~ 85°C |
|
|
NX301CB3BTACTICAL PUSHBUTTON SWITCH |
0 |
|
- |
NX | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 115 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | Dust Proof | - | - | - |
|
|
NX302BB1BTACTICAL PUSHBUTTON SWITCH |
0 |
|
- |
NX | Bag | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 10A (AC/DC) | 115 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | Dust Proof | - | - | - |
|
|
NX301CB3RTACTICAL PUSHBUTTON SWITCH |
0 |
|
- |
NX | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 115 V | 28 V | Round, Plunger | No Marking | Red | - | - | Solder Lug | Dust Proof | - | - | - |
|
|
EUS-14-473.036-1697A(14-473.036-1697A) PUBHBUTTON/ M |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NX223CB6BTACTICAL PUSHBUTTON SWITCH |
0 |
|
- |
NX | Bulk | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom | 10A (AC/DC) | 115 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | - | - | - |
