Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NX301FB1RTACTICAL PUSHBUTTON SWITCH |
0 |
|
- |
NX | Bag | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 115 V | 28 V | Round, Plunger | No Marking | Red | - | - | Solder Lug | Dust Proof | - | - | - |
|
|
NX221CB6B-50TACTICAL PUSHBUTTON SWITCH |
0 |
|
- |
NX | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 115 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | - | - | - |
|
|
NX303001R-02TACTICAL PUSHBUTTON SWITCH |
0 |
|
- |
NX | Bag | Active | Panel Mount, Rear | Standard | DPST-NO/NC | On-Mom | 10A (AC/DC) | 115 V | 28 V | Round, Plunger | No Marking | Red | - | - | Solder Lug | Dust Proof | - | - | - |
|

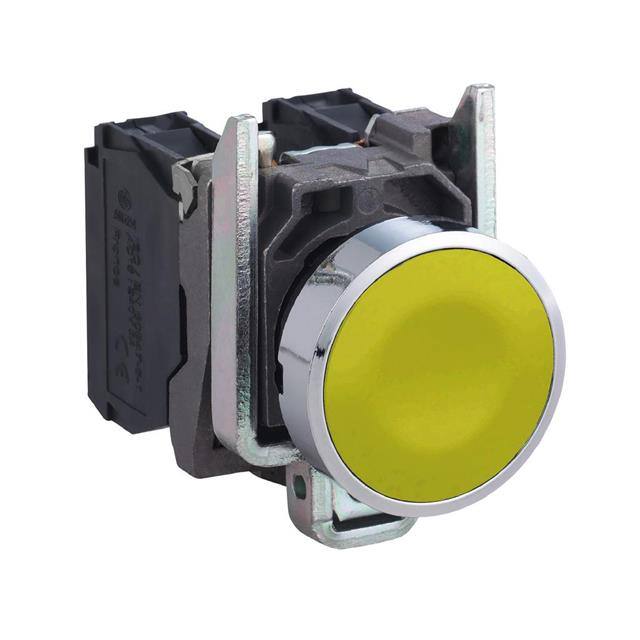

XB4BA55PUSH BUTTON, HARMONY XB4, 22 MM |
5 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Yellow | - | - | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|

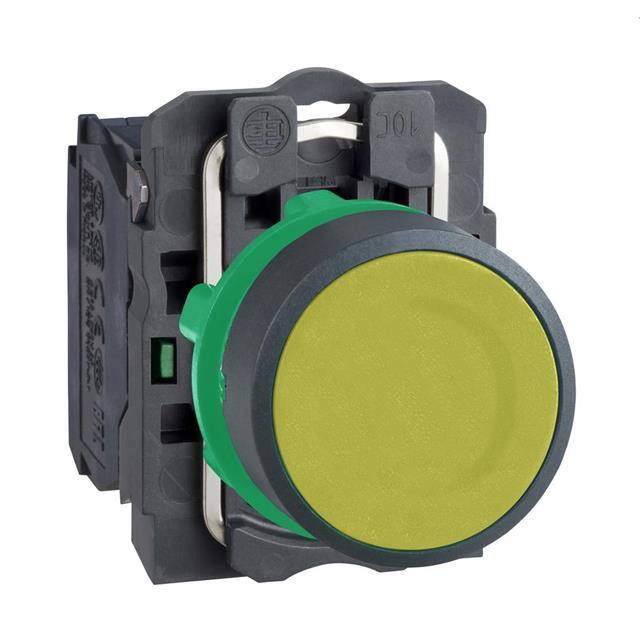

XB5AA51HARMONY XB5, PUSH BUTTON, PLASTI |
0 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Standard | SPST-NO | On-Off | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Yellow | - | - | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
|
NX321CB1BTACTICAL PUSHBUTTON SWITCH |
0 |
|
- |
NX | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 115 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | Dust Proof | - | - | - |
|
|
UB15SKG036DG-JDG13LOW PROFILE PUSHBUTTON |
0 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | - | Clear (Amber Filter/Diffuser) | LED, Amber/Blue | 2.0, 3.0 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
|
|
AML21FBA3ABSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
AML21 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Rectangular, Button (Not Included) | No Marking | - | Incandescent | - | PC Pin | - | - | Rectangular - 28.98mm x 19.05mm | - |
|
|
FPAR1A1422X0XPUSHBUTTON SWITCH FD DBLE ICON |
0 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LBW6GB-M1T2BLBW FLUSH PB MOME. BLACK |
0 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button, Full Guard | No Marking | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
LBW6GB-M1T2GLBW FLUSH PB MOME. GREEN |
0 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button, Full Guard | No Marking | Green | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
LBW6GB-M1T2RLBW FLUSH PB MOME. RED |
0 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button, Full Guard | No Marking | Red | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
LBW6GB-M1T2SLBW FLUSH PB MOME. BLUE |
0 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button, Full Guard | No Marking | Blue | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
LBW6GB-M1T2VBLBW FLUSH PB MOME. BLACK |
0 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button, Full Guard | No Marking | Black | - | - | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
LBW6GB-M1T2VGLBW FLUSH PB MOME. GREEN |
0 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button, Full Guard | No Marking | Green | - | - | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
LBW6GB-M1T2VRLBW FLUSH PB MOME. RED |
0 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button, Full Guard | No Marking | Red | - | - | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
LBW6GB-M1T2VSLBW FLUSH PB MOME. BLUE |
0 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button, Full Guard | No Marking | Blue | - | - | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
LBW6GB-M1T2VWLBW FLUSH PB MOME. WHITE |
0 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button, Full Guard | No Marking | White | - | - | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
LBW6GB-M1T2VYLBW FLUSH PB MOME. YELLOW |
0 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button, Full Guard | No Marking | Yellow | - | - | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
LBW6GB-M1T2WLBW FLUSH PB MOME. WHITE |
0 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button, Full Guard | No Marking | White | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
