Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FPBR3C1222D12A6PUSHBUTTON SWITCH FD DBLE ICON |
0 |
|
Datasheet |
FP | Bulk | Active | Panel Mount, Snap-In | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 12 V | Round, Button | - | Black | LED, Yellow | 12 VDC | Solder Lug | IP54 - Dust Protected, Water Resistant | - | Circular - 24.20mm Dia | -40°C ~ 75°C |
|
|
HA2L-M1C51-A16MM PUSHBUTTON ILLUMINATED |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HA2L-M1C51-G16MM PUSHBUTTON ILLUMINATED |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HA2L-M1C51-R16MM PUSHBUTTON ILLUMINATED |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PS9-200GSWITCH PUSHBUTTON DPDT 1A 125V |
0 |
|
Datasheet |
PS | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 1A (AC/DC) | 125 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
NX204002RTACTICAL PUSHBUTTON SWITCH |
0 |
|
- |
NX | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 115 V | 28 V | Round, Plunger | No Marking | Red | - | - | Solder Lug | - | - | - | - |
|
|
IPR3SAD6L0S100PUSHBUTTON SWITCH FD DBLE ICON |
0 |
|
Datasheet |
IP | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 500mA (AC), 5A (DC) | 125 V | 28 V | Round, Button | - | Red | LED, Red | 2.1 VDC | Solder Lug | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
|
MPI002/RP/RD/12SWITCH PUSH SPST-NO 0.05A 24V |
0 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Red | 12 VDC | Solder Lug | IP66 - Dust Tight, Water Resistant | Stainless Steel | Circular - 19.20mm Dia | -30°C ~ 70°C |
|
MPI002/RP/RD/24SWITCH PUSH SPST-NO 0.05A 24V |
0 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Red | 24 VDC | Solder Lug | IP66 - Dust Tight, Water Resistant | Stainless Steel | Circular - 19.20mm Dia | -30°C ~ 70°C |
|

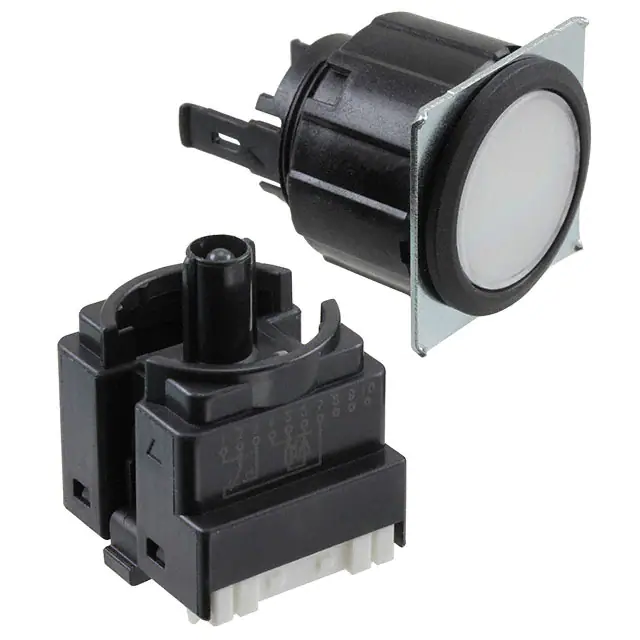

A3UL-TBW-3A1C-MSWITCH PUSHBUTTON SPDT 0.1A 30V |
0 |
|
Datasheet |
A3U | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (White Filter/Diffuser) | LED, White | 24 VDC | Connector | IP40 | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
|
AOLQFW-2B0600TW FLUSH/EXT SQ PB |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HA2L-M1C14-S16MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
L6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Square, Button | - | Blue | LED, Blue | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
HA2L-M1C14-A16MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
L6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Square, Button | - | Amber | LED, Amber | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
LW2B-A1C5-R22MM PUSHBUTTON RED |
0 |
|
Datasheet |
LW | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Square, Button, Flush | - | Red | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
LW2B-A1C5-Y22MM PUSHBUTTON YELLOW |
0 |
|
Datasheet |
LW | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Square, Button, Flush | - | Yellow | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
LW2B-A1C5-G22MM PUSHBUTTON GREEN |
0 |
|
Datasheet |
LW | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Square, Button, Flush | - | Green | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
IPR1FAD6104PUSHBUTTON SWITCH FD DBLE ICON |
0 |
|
Datasheet |
IP | Bulk | Active | Panel Mount, Front | Standard | SPST | Off-On | 2A (AC), 4A (DC) | 125 V | 12 V | Round, Button | - | Red | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
|
HW1L-M2F10Q0-RHW W/O LAMP PB FV |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | Red | LED, Red | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
SP45W02000142PUSHBUTTON SWITCH SP WASHABLE |
0 |
|
- |
SP | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 1A (DC) | - | 30 V | Round, Plunger | - | Black | - | - | PC Pin | - | - | Circular - 6.50mm Dia | -20°C ~ 85°C |
|
|
13445AKPUSH SWITCH 13000 HIGH SPEC |
0 |
|
Datasheet |
1300 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 4A (AC/DC) | 125 V | 30 V | Plunger for Cap | - | Silver | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -40°C ~ 85°C |
