Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AL6Q-M22P-HJWPUSH BUTTON OVERSIZE RECTANGLE |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AL6Q-M22P-HW16MM PUSHBUTTON ILLUMINATED |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
82-5163.200082-5163.2000.PUSHBUTTON.MAINTAIN |
0 |
|
Datasheet |
82 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 200mA (AC/DC) | 24 V | 24 V | Round, Button, Flush | - | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 19.00mm Dia | -30°C ~ 70°C |
|
|
AML22CBM3AASWITCH PUSHBUTTON SPDT 3A 125V |
3 |
|
Datasheet |
AML22 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Square, Button (Not Included) | No Marking | - | LED, Yellow | 24 VDC | PC Pin | - | - | Square - 19.05mm x 19.05mm | - |
|
IQC3V222SWITCH PUSHBUTTON SPST-NO 4A 48V |
0 |
|
Datasheet |
IQ | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 4A (DC) | - | 48 V | Square, Button | No Marking | Black | - | - | Screw Terminal | IP54 - Dust Protected, Water Resistant | Epoxy Sealed Terminals | Circular - 15.90mm Dia | -40°C ~ 85°C |
|

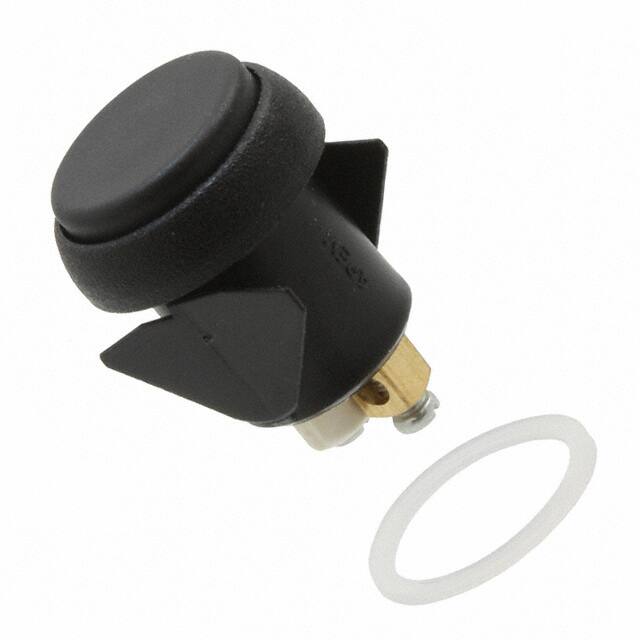

IQP3V222SWITCH PUSHBUTTON SPST-NO 4A 48V |
0 |
|
Datasheet |
IQ | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 4A (DC) | - | 48 V | Round, Button | No Marking | Black | - | - | Screw Terminal | IP54 - Dust Protected, Water Resistant | Epoxy Sealed Terminals | Circular - 15.90mm Dia | -40°C ~ 85°C |
|
|
UB225SKW036B-1JBLOW PROFILE PUSHBUTTON |
0 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | - | Clear (White Filter/Diffuser) | LED, White | 3.1 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
|
|
UB225SKW036B-3JBLOW PROFILE PUSHBUTTON |
0 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | - | Amber (White Filter/Diffuser) | LED, White | 3.1 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
|
|
AH1NASMXWA2SWITCH PB SPST NO + SPST NC 20A |
0 |
|
Datasheet |
AH | Bag | Active | Panel Mount, Front | Anti-Vandal | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | Stainless Steel 316 | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
ILR3FAD6L0SPUSHBUTTON SWITCH |
0 |
|
- |
IL | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 24 V | Round, Button, Domed | - | Red | LED, Red | 2.1 VDC | Wire Leads | IP54 - Dust Protected, Water Resistant | - | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
|
13435AGKPUSH SWITCH 13000 HIGH SPEC |
0 |
|
Datasheet |
1300 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 4A (AC/DC) | 125 V | 30 V | Plunger for Cap | - | Black | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -40°C ~ 85°C |
|
|
8636ADB6X934PUSHBUTTON SWITCH 8000 |
0 |
|
- |
8000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Plunger for Cap | - | Silver | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -40°C ~ 85°C |
|
|
YB225CWCKW01-6F-JSSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Silver | LED, Green | 3.3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
YB225CWCKW01-6B-JSSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Silver | LED, White | 3.3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
ICP3FAD2SWITCH PUSH SPST-NO 5A 48V |
0 |
|
Datasheet |
IC | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 500mA (AC), 5A (DC) | 48 V | 28 V | Round, Button | No Marking | Black | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
|
13435WCDGPUSH SWITCH 13000 HIGH SPEC |
0 |
|
- |
1300 | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | SPDT | On-Mom | 100mA (DC) | - | 30 V | Plunger for Cap | - | Black | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -40°C ~ 85°C |
|
|
IPR1Z1AD0105PUSHBUTTON SWITCH FD DBLE ICON |
0 |
|
Datasheet |
IP | Bulk | Active | Panel Mount, Front | Standard | SPST | Off-On | 2A (AC), 4A (DC) | 125 V | 12 V | Round, Button | - | - | - | - | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
|
82-6151.121282-6151.1212.ILLUMINATED PUSHBUT |
0 |
|
- |
82 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | - | Silver | LED, Red | 6 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -30°C ~ 70°C |
|
|
82-6151.115582-6151.1155.ILLUMINATED PUSHBUT |
0 |
|
- |
82 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | - | Silver | LED, White | 110 VAC | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -30°C ~ 70°C |
|
|
82-6151.113582-6151.1135.ILLUMINATED PUSHBUT |
0 |
|
Datasheet |
82 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | - | Silver | LED, Green | 110 VAC | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -30°C ~ 70°C |
Pushbutton Switches Electronic Components
