Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
00720100PLUNGER SWITCH 2-WAY DIN - N.C. |
0 |
|
- |
* | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
82-5151.2123.B001SWITCH PB SPDT 5A 120V |
2 |
|
Datasheet |
82 | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 5A (AC), 1A (DC) | 120 V | 24 V | Round, Button, Flush | - | Silver | LED, Blue | 12 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 19.00mm Dia | -30°C ~ 70°C |
|
13435WASWITCH PUSHBUTTON SPDT 4A 125V |
0 |
|
Datasheet |
13000 | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | SPDT | On-Mom | 4A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | Silver | - | - | PC Pin | - | - | Circular - 6.50mm Dia | -40°C ~ 85°C |
|
|
18245WAD5SWITCH PUSHBUTTON DPDT 1A 125V |
0 |
|
Datasheet |
18000 | Tray | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Plunger | No Marking | - | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 65°C |
|
|
AV1-1B211D-R01SWITCH ANTI VANDAL |
0 |
|
- |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 10A (DC) | - | 12 V | Round, Button, Flush | - | Silver | LED, White | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -30°C ~ 70°C |
|
|
AV1-1A211E-R03SWITCH ANTI VANDAL |
0 |
|
- |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 10A (DC) | - | 12 V | Round, Button, Flush | - | Silver | LED, Blue | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -30°C ~ 70°C |
|
|
AV1-1A211D-R01SWITCH ANTI VANDAL |
0 |
|
- |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 10A (DC) | - | 12 V | Round, Button, Flush | - | Silver | LED, White | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -30°C ~ 70°C |
|
|
AV1-1A211E-R07SWITCH ANTI VANDAL |
0 |
|
- |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 10A (DC) | - | 12 V | Round, Button, Flush | - | Silver | LED, Blue | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -30°C ~ 70°C |
|
|
IRR3Z422PUSHBUTTON SWITCH FD DBLE ICON |
0 |
|
Datasheet |
IR | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 2A (AC), 4A (DC) | 250 V | 48 V | Round, Button, Domed | - | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 16.20mm Dia | -40°C ~ 85°C |
|
|
AH1NABXWA2SWITCH PB SPST NO + SPST NC 20A |
0 |
|
Datasheet |
AH | Bag | Active | Panel Mount, Front | Anti-Vandal | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Black | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1NASXWA2SWITCH PB SPST NO + SPST NC 20A |
0 |
|
Datasheet |
AH | Bag | Active | Panel Mount, Front | Anti-Vandal | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
YB26RKW01-5D12-JDSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, Amber | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
IPR1Z1AD1L0YSWITCH PUSHBUTTON SPST 4A 12V |
0 |
|
Datasheet |
IP | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST | Off-On | 2A (AC), 4A (DC) | 125 V | 12 V | Round, Button | No Marking | Blue | LED, Yellow | 2 VDC | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|

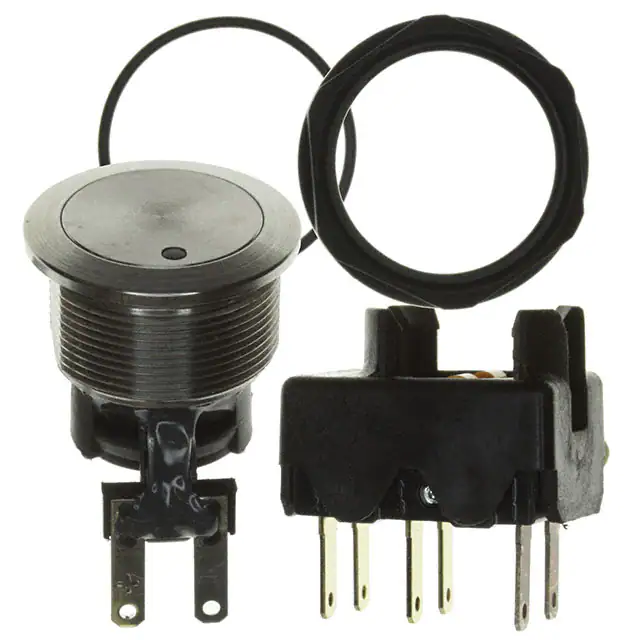

1241.6923.1121000SWITCH PUSHBUTTON DPDT 5A 125V |
0 |
|
Datasheet |
MSM DP | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Red | 1.9 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
1241.6923.1122000SWITCH PUSHBUTTON DPDT 5A 125V |
0 |
|
Datasheet |
MSM DP | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Green | 2.1 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
YB25KKW01-2CF12-JBSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
YB | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
VAQ-4B-LMINIATURE BASIC SWITCH ASSY |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PV8F2V0SS-321SWITCH PUSHBUTTON 4PST 2A 36V |
0 |
|
Datasheet |
PV8, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | 4PST-2NO/2NC | On-Mom, Off-Mom | 2A (DC) | - | 36 V | Round, Button, Flush | No Marking | Silver | LED, Orange | 1.8 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 25.00mm Dia | -20°C ~ 55°C |
|
|
HW2B-M1F02-B22MM PUSHBUTTON BLACK |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HW2B-M1F02-W22MM PUSHBUTTON WHITE |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
