Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

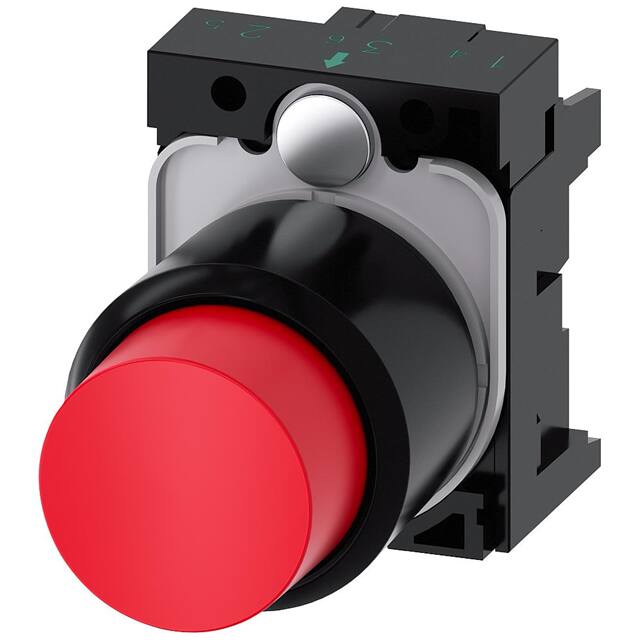

3SU12000FB200AA0PUSHBUTTON. RED. EXTENDED STROKE |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | - | - | - | - | - | Round, Button | - | Red | - | - | - | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
3SU12000FB100AA0PUSHBUTTON, MOM, BLK, RAISED, CO |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | - | - | - | - | - | Round, Button | - | Black | - | - | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
IPR5PAD3PUSHBUTTON SWITCH FD DBLE ICON |
0 |
|
Datasheet |
IP | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 500mA (AC), 200mA (DC) | 125 V | 48 V | Round, Button | - | Green | - | - | PC Pin | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
|
IPR5PAD6PUSHBUTTON SWITCH FD DBLE ICON |
0 |
|
Datasheet |
IP | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 500mA (AC), 200mA (DC) | 125 V | 48 V | Round, Button | - | Red | - | - | PC Pin | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
|
13435WAKPUSH SWITCH 13000 HIGH SPEC |
0 |
|
Datasheet |
1300 | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | SPDT | On-Mom | 4A (AC/DC) | 125 V | 30 V | Plunger for Cap | - | Silver | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -40°C ~ 85°C |
|
|
HA1B-A3C2-R16MM PUSHBUTTON RED |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HA4B-M1C1L-R16MM PUSHBUTTON SQUARE MOMENT |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HA4B-M1C1L-G16MM MOMENT SQUARE PUSHBUTTON |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IPR3FAD9104PUSHBUTTON SWITCH FD DBLE ICON |
0 |
|
Datasheet |
IP | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 500mA (AC), 5A (DC) | 125 V | 28 V | Round, Button | - | Orange | - | - | Wire Leads | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
|
AH1LABXWA1SWITCH PB SPST NO + SPST NC 20A |
0 |
|
Datasheet |
AH | Bag | Active | Panel Mount, Front | Anti-Vandal | SPST-NO + SPST-NC | On-Off, Off-On | 10A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Black | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
YB16KKG01-2CF24-JBSWITCH PUSHBUTTON SPDT 0.4VA 28V |
0 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
3SU12000EB400AA0PUSHBUTTON, MOM, GRN, FLUSH, COM |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | - | - | - | - | - | Round, Button | - | Green | - | - | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
IRC3S472PUSHBUTTON SWITCH FD DBLE ICON |
0 |
|
- |
IR | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 200mA (AC/DC) | 250 V | 48 V | Square, Button | - | White | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.20mm Dia | -40°C ~ 85°C |
|
|
ABN2F00PUSHBUTTON ROUND EXT. SHROUD |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AL6H-M22P-G16MM PUSHBUTTON ILLUMINATED |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AL6H-M22P-A16MM PUSHBUTTON ILLUMINATED |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HA2L-M1C55-Y16MM PUSHBUTTON ILLUMINATED |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HA1L-M1C15V-G16MM PUSHBUTTON ILLUMINATED |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HA1L-M1C16V-S16MM PUSHBUTTON ILLUMINATED |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HA1L-M1C15V-A16MM PUSHBUTTON ILLUMINATED |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
