Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AB6M-A2P-R16MM PUSHBUTTON RED |
0 |
|
Datasheet |
TW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Off | 1A (AC/DC) | 120 V | 24 V | Round, Button | - | Red | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Oil and Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 55°C |
|
|
AB6M-A2P-S16MM PUSHBUTTON BLUE |
0 |
|
Datasheet |
A6 | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 1A (AC/DC) | 120 V | 24 V | Round, Button | - | Blue | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 55°C |
|
|
AB6M-A2P-B16MM PUSHBUTTON BLACK |
0 |
|
Datasheet |
TW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Off | 1A (AC/DC) | 120 V | 24 V | Round, Button | - | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Oil and Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 55°C |
|
|
AB6Q-A2P-G16MM PUSHBUTTON GREEN |
0 |
|
Datasheet |
TW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Off | 1A (AC/DC) | 120 V | 24 V | Square, Button | - | Green | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Oil and Water Resistant | - | Square - 20.20mm x 20.20mm | -25°C ~ 55°C |
|
|
AB6Q-A2P-B16MM PUSHBUTTON BLACK |
0 |
|
Datasheet |
TW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Off | 1A (AC/DC) | 120 V | 24 V | Square, Button | - | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Oil and Water Resistant | - | Square - 20.20mm x 20.20mm | -25°C ~ 55°C |
|
|
AB6Q-A2P-R16MM PUSHBUTTON RED |
0 |
|
Datasheet |
TW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Off | 1A (AC/DC) | 120 V | 24 V | Square, Button | - | Red | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Oil and Water Resistant | - | Square - 20.20mm x 20.20mm | -25°C ~ 55°C |
|
|
AB6Q-A2P-Y16MM PUSHBUTTON YELLOW |
0 |
|
Datasheet |
TW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Off | 1A (AC/DC) | 120 V | 24 V | Square, Button | - | Yellow | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Oil and Water Resistant | - | Square - 20.20mm x 20.20mm | -25°C ~ 55°C |
|
|
AB6Q-A2P-S16MM PUSHBUTTON BLUE |
0 |
|
Datasheet |
TW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Off | 1A (AC/DC) | 120 V | 24 V | Square, Button | - | Blue | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Oil and Water Resistant | - | Square - 20.20mm x 20.20mm | -25°C ~ 55°C |
|
|
AB6Q-A2P-W16MM PUSHBUTTON WHITE |
0 |
|
Datasheet |
TW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Off | 1A (AC/DC) | 120 V | 24 V | Square, Button | - | White | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Oil and Water Resistant | - | Square - 20.20mm x 20.20mm | -25°C ~ 55°C |
|
MP0045/1E2AM012SSWITCH PB DPST ON-OFF ILLUM AMB |
0 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Amber | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 16.20mm Dia | -20°C ~ 55°C |
|

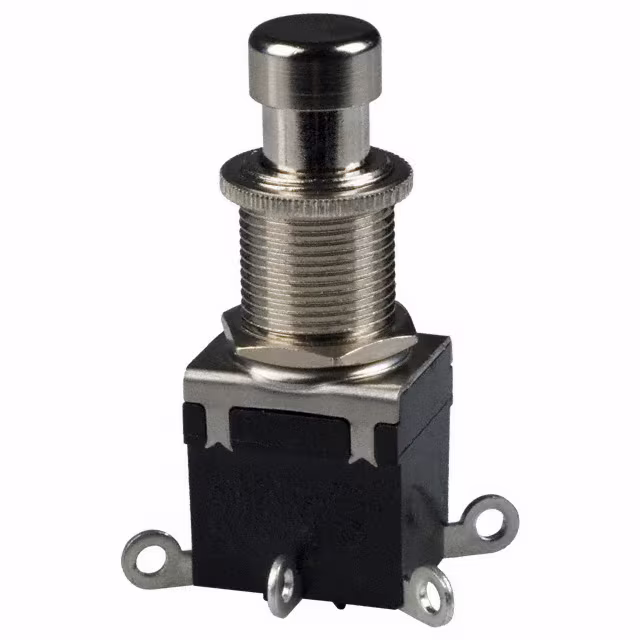

64112220SWITCH PUSHBUTTON DPDT 5A 125V |
0 |
|
Datasheet |
641 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-On | 5A (AC) | 125 V | - | Round, Button | No Marking | Silver | - | - | Solder Lug | - | - | Circular - 12.70mm Dia | - |
|
|
PV4FWB0SSG-3R1-M26SWITCH PB SPDT 2A 24V |
0 |
|
Datasheet |
PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 2A (DC) | - | 24 V | Round, Button, Flush | - | Silver | LED, Blue/Green/Red | 1.8, 2.8 VDC | Wire Leads | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
|
PV4FWB0SS-3R5-M26SWITCH PB SPDT 2A 48V |
0 |
|
Datasheet |
PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 2A (DC) | - | 24 V | Round, Button, Flush | - | Silver | LED, Blue/Green/Red | 24 VDC | Wire Leads | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
|
PV7F2Y0SS-3R1-M16SWITCH PB DPST-NO/NC 2A 48V |
0 |
|
Datasheet |
PV7, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | - | Silver | LED, Blue/Green/Red | 1.8, 2.8, 2.8 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|
|
46-201 BLKSWITCH PUSH DPDT 0.25A 115V |
0 |
|
Datasheet |
46 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 250mA (AC) | 115 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 6.75mm Dia | -40°C ~ 85°C |
|
|
46-201 REDSWITCH PUSH DPDT 0.25A 115V |
0 |
|
Datasheet |
46 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 250mA (AC) | 115 V | - | Round, Button | No Marking | Red | - | - | Solder Lug | - | - | Circular - 6.75mm Dia | -40°C ~ 85°C |
|
|
AL6H-M21-SPUSH BUTTON 16MM RECTANGULAR |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
A165L-AAM-12-2SWITCH PUSHBUTTON DPDT 5A 125V |
5 |
|
Datasheet |
A16 | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 5A (AC) | 125 V | - | Square, Button | No Marking | Blue | Incandescent, Blue | 12 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
|
A165L-AAM-5-2SWITCH PUSHBUTTON DPDT 5A 125V |
5 |
|
Datasheet |
A16 | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 5A (AC) | 125 V | - | Square, Button | No Marking | Blue | Incandescent, Blue | 5 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
A165L-AYM-5-2SWITCH PUSHBUTTON DPDT 5A 125V |
5 |
|
Datasheet |
A16 | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 5A (AC) | 125 V | - | Square, Button | No Marking | Yellow | Incandescent, Yellow | 5 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
