Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PVS7F2HSS311SWITCH PB DPDT 2A 24V |
0 |
|
Datasheet |
PVS7 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 2A (DC) | - | 24 V | Round, Button, Flush | - | Silver | LED, Red | 1.8 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|
PVS7F2HSS341SWITCH PB DPDT 2A 24V |
0 |
|
Datasheet |
PVS7 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 2A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|
|
3-126-732MSS 19 SWITCH BZ CONNECTOR |
0 |
|
Datasheet |
MSS | Box | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 100mA (DC) | - | 60 V | Round, Button, Flush | - | Silver | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -40°C ~ 85°C |
|
|
3-126-729MSS 19 SWITCH BZ CONNECTOR |
0 |
|
Datasheet |
MSS | Box | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 100mA (DC) | - | 60 V | Round, Button, Flush | - | Silver | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -40°C ~ 85°C |
|
3-126-727MSS 19 SWITCH BZ CONNECTOR |
0 |
|
Datasheet |
MSS | Box | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 100mA (DC) | - | 60 V | Round, Button, Flush | - | Silver | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -40°C ~ 85°C |
|
|
3-126-741MSS 19 SWITCH BZ CONNECTOR |
0 |
|
Datasheet |
MSS | Box | Active | Panel Mount, Front | Anti-Vandal | SPST | On-Off | 100mA (DC) | - | 60 V | Round, Button, Flush | - | Silver | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -40°C ~ 85°C |
|
3-126-735MSS 19 SWITCH BZ CONNECTOR |
0 |
|
Datasheet |
MSS | Box | Active | Panel Mount, Front | Anti-Vandal | SPST | On-Off | 100mA (DC) | - | 60 V | Round, Button, Flush | - | Silver | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -40°C ~ 85°C |
|
|
3-126-731MSS 19 SWITCH BZ CONNECTOR |
0 |
|
Datasheet |
MSS | Box | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 100mA (DC) | - | 60 V | Round, Button, Flush | - | Silver | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -40°C ~ 85°C |
|
|
3-126-736MSS 19 SWITCH BZ CONNECTOR |
0 |
|
Datasheet |
MSS | Box | Active | Panel Mount, Front | Anti-Vandal | SPST | On-Off | 100mA (DC) | - | 60 V | Round, Button, Flush | - | Silver | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -40°C ~ 85°C |
|
|
3-126-739MSS 19 SWITCH BZ CONNECTOR |
0 |
|
Datasheet |
MSS | Box | Active | Panel Mount, Front | Anti-Vandal | SPST | On-Off | 100mA (DC) | - | 60 V | Round, Button, Flush | - | Silver | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -40°C ~ 85°C |
|
|
3-126-730MSS 19 SWITCH BZ CONNECTOR |
5 |
|
Datasheet |
MSS | Box | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 100mA (DC) | - | 60 V | Round, Button, Flush | - | Silver | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -40°C ~ 85°C |
|
|
3-126-737MSS 19 SWITCH BZ CONNECTOR |
4 |
|
Datasheet |
MSS | Box | Active | Panel Mount, Front | Anti-Vandal | SPST | On-Off | 100mA (DC) | - | 60 V | Round, Button, Flush | - | Silver | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -40°C ~ 85°C |
|
|
D16EER40REDSWITCH PUSHBUTTON 4PDT 8A 125V |
0 |
|
Datasheet |
D16 | Bulk | Active | Panel Mount, Front | Standard | 4PDT | On-On | 8A (AC), 6A (DC) | 125 V | 24 V | Round, Button, Mushroom | No Marking | Red | - | - | Solder Lug | - | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
A22NL-BNA-TWA-G101-WASWITCH PUSH DPST-NO 10A 120V |
0 |
|
Datasheet |
A22NL | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO | Off-On | 10A (AC/DC) | 120 V | 24 V | Round, Button, Flush | No Marking | Clear (White Filter/Diffuser) | LED, White | 6 VAC/DC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|

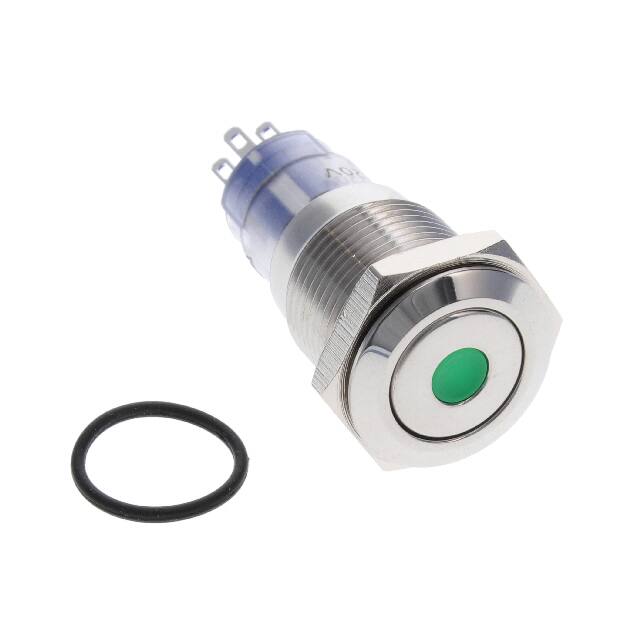

MP0045/1E1GN220SSWITCH PB DPST ON-OFF ILLUM GRN |
0 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Green | 220 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 16.20mm Dia | -20°C ~ 55°C |
|
MP0045/1E1AM012SSWITCH PB DPST ON-OFF ILLUM AMB |
0 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Amber | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 16.20mm Dia | -20°C ~ 55°C |
|
|
ABFS210N-BTWS PB RND EXTD/SHRD MOM 2NO |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IPR3SAD3101SWITCH PUSH SPST-NO 0.5A 48V |
0 |
|
Datasheet |
IP | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 500mA (AC), 200mA (DC) | 48 V | 48 V | Round, Button | No Marking | Green | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Tactile Feedback | Circular - 13.60mm Dia | -40°C ~ 125°C |
|
|
112-PMSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
110 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Silver | - | - | Solder Lug | - | - | Circular - 12.70mm Dia | 0°C ~ 85°C |
|
A22NL-RNM-TAA-G100-ADSWITCH PUSH SPST-NO 10A 120V |
0 |
|
Datasheet |
A22NL | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button, Flush | No Marking | Clear (Blue Filter/Diffuser) | LED, Blue | 100 ~ 120 VAC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
