Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A22NL-MMM-TGA-G002-GCSWITCH PUSH |
0 |
|
Datasheet |
A22NL | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button, Mushroom | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 24 VAC/DC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|

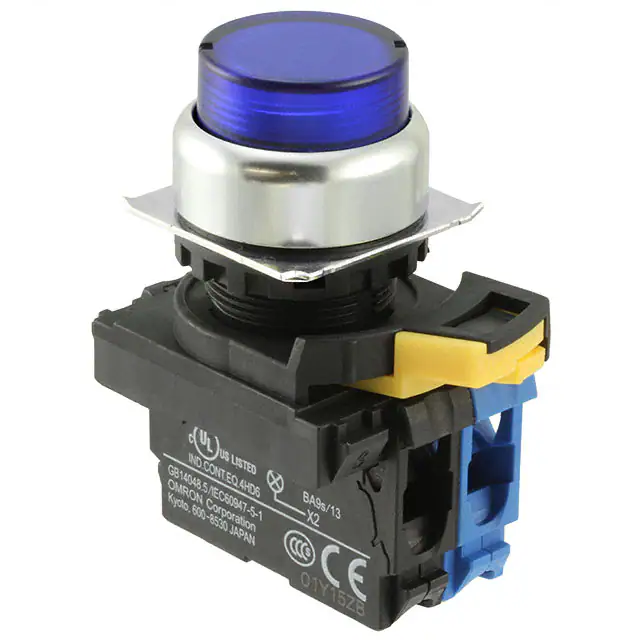

A22NL-RPM-TAA-G100-ACSWITCH PUSH SPST-NO 10A 120V |
0 |
|
Datasheet |
A22NL | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Clear (Blue Filter/Diffuser) | LED, Blue | 24 VAC/DC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
A22NL-RPM-TGA-G002-GCSWITCH PUSH SPST-NC 10A 120V |
0 |
|
Datasheet |
A22NL | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 24 VAC/DC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
A22NL-RPM-TGA-G100-GCSWITCH PUSH SPST-NO 10A 120V |
0 |
|
Datasheet |
A22NL | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 24 VAC/DC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
A22NL-RPM-TRA-G002-RCSWITCH PUSH SPST-NC 10A 120V |
0 |
|
Datasheet |
A22NL | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 24 VAC/DC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
A22NL-RPM-TWA-G002-WCSWITCH PUSH SPST-NC 10A 120V |
0 |
|
Datasheet |
A22NL | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 24 VAC/DC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
A22NL-RPM-TWA-G100-WCSWITCH PUSH SPST-NO 10A 120V |
0 |
|
Datasheet |
A22NL | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 24 VAC/DC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
A22NL-RPM-TYA-G002-YCSWITCH PUSH SPST-NC 10A 120V |
0 |
|
Datasheet |
A22NL | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Clear (Yellow Filter/Diffuser) | LED, Yellow | 24 VAC/DC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
A22NL-RPM-TYA-G100-YCSWITCH PUSH SPST-NO 10A 120V |
0 |
|
Datasheet |
A22NL | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Clear (Yellow Filter/Diffuser) | LED, Yellow | 24 VAC/DC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
AL6M-M12-R16MM PUSHBUTTON ILLUMINATED |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AL6M-M12-W16MM PUSHBUTTON ILLUMINATED |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AL6Q-M12-JWPUSH BUTTON 16MM SQUARE |
0 |
|
Datasheet |
A6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 120 V | 24 V | Square, Button | - | White | LED, White | 6 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
DH282LBSRGNSWITCH PB 4PST-2NO/2NC 2A 125V |
0 |
|
Datasheet |
DH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Off, Off-On | 2A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 28.00mm Dia | -25°C ~ 70°C |
|
|
DH282LBBRGNSWITCH PB 4PST-2NO/2NC 2A 125V |
0 |
|
Datasheet |
DH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Off, Off-On | 2A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Black | LED, Green/Red | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 28.00mm Dia | -25°C ~ 70°C |
|
|
IXP3S03MSWITCH PB IP67 SEALED GREEN ROUN |
0 |
|
Datasheet |
IX | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 100mA (DC) | - | 28 V | Round, Button, Domed | - | Green | - | - | Solder Lug | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 11.90mm Dia | -40°C ~ 85°C |
|
|
YB16CKW01-1C12-JASWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
YB | Bulk | Last Time Buy | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Black Filter/Diffuser) | LED, Red | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB16CKW01-1F05-JASWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
YB | Bulk | Last Time Buy | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Black Filter/Diffuser) | LED, Green | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
8432WAD9PUSHBUTTON SWITCH 8000 |
0 |
|
- |
8000 | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | SPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Plunger for Cap | - | Silver | - | - | PC Pin | - | - | Circular - 6.50mm Dia | -40°C ~ 85°C |
|
A165L-AGM-24-1SWITCH PUSHBUTTON SPDT 5A 125V |
0 |
|
Datasheet |
A16 | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 5A (AC) | 125 V | - | Square, Button | No Marking | Green | Incandescent, Green | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
A165L-ARM-12-1SWITCH PUSHBUTTON SPDT 5A 125V |
0 |
|
Datasheet |
A16 | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 5A (AC) | 125 V | - | Square, Button | No Marking | Red | Incandescent, Red | 12 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
Pushbutton Switches Electronic Components
Explore Pushbutton Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
