Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A22NL-BNA-TYA-G100-YCSWITCH PUSH SPST-NO 10A 120V |
0 |
|
Datasheet |
A22NL | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-On | 10A (AC/DC) | 120 V | 24 V | Round, Button, Flush | No Marking | Clear (Yellow Filter/Diffuser) | LED, Yellow | 24 VAC/DC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
10831800PLUNGER SWITCH N.C.WITH BELLOWS |
0 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
39-103-EWSWITCH PUSH W/LEADS EXTENDED OVE |
0 |
|
- |
39 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 500mA (AC) | 115 V | - | Round, Plunger | No Marking | White | - | - | Wire Leads | - | Epoxy Sealed Terminals | Circular - 8.61mm Dia | -40°C ~ 85°C |
|
|
99-481.837SWITCH PB DPST-NO 0.1A 42V |
0 |
|
- |
99 | Bulk | Obsolete | Panel Mount, Front | Standard | DPST-NO | Off-On | 100mA (AC/DC) | 42 V | 42 V | Rectangular, Button | No Marking | White | - | - | - | IP40 | - | - | -25°C ~ 55°C |
|
|
TPF11CGRA2SWITCH PUSH SPST-NO 0.4VA 20V |
0 |
|
Datasheet |
TP | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Red | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
|
LB26SGW01-5F-JFSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 2.1 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
LB26SGW01-5C-JCSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
PV8F2Y0SS-341-M14SWITCH PB DPST-NO/NC 2A 48V |
0 |
|
Datasheet |
PV8, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | - | Silver | LED, Blue | 2.8 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 25.00mm Dia | -20°C ~ 55°C |
|
|
PV8F2Y0SS-331-M14SWITCH PB DPST-NO/NC 2A 48V |
0 |
|
Datasheet |
PV8, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | - | Silver | LED, Green | 2.8 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 25.00mm Dia | -20°C ~ 55°C |
|
|
PVA3F2B0SS3R3Switches |
0 |
|
Datasheet |
PVA3 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 2A (DC) | - | 36 V | Round, Button, Flush | - | Silver | LED, Blue/Green/Red | 6 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
|
LA1L-M1C14V-R16MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
L6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button | - | Red | LED, Red | 24 VAC/DC | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
LA1L-M1C53-W16MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
L6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 5A (AC), 3A (DC) | 125 V | 30 V | Round, Button | - | White | LED, White | 12 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
LA1L-M1C13V-G16MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
L6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button | - | Green | LED, Green | 12 VAC/DC | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
LA1L-M1C54-Y16MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
L6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 5A (AC), 3A (DC) | 125 V | 30 V | Round, Button | - | Yellow | LED, Yellow | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
LA2L-M1C54-W16MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
L6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 5A (AC), 3A (DC) | 125 V | 30 V | Square, Button | - | White | LED, White | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
LA2L-M1C53-R16MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
L6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 5A (AC), 3A (DC) | 125 V | 30 V | Square, Button | - | Red | LED, Red | 12 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
ABW101-W/AW-R1COLOR BUTTN |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PV4FWB011G-301-M26Switches |
0 |
|
Datasheet |
PV4 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 2A (DC) | - | 24 V | Round, Button, Flush | - | Black | LED, White | 2.8 VDC | Wire Leads | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
IMP7P4B2SWITCH PUSHBUTTON SPDT 3A 28V |
0 |
|
Datasheet |
IM | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (DC) | - | 28 V | Round, Button | No Marking | Blue, Dark | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|

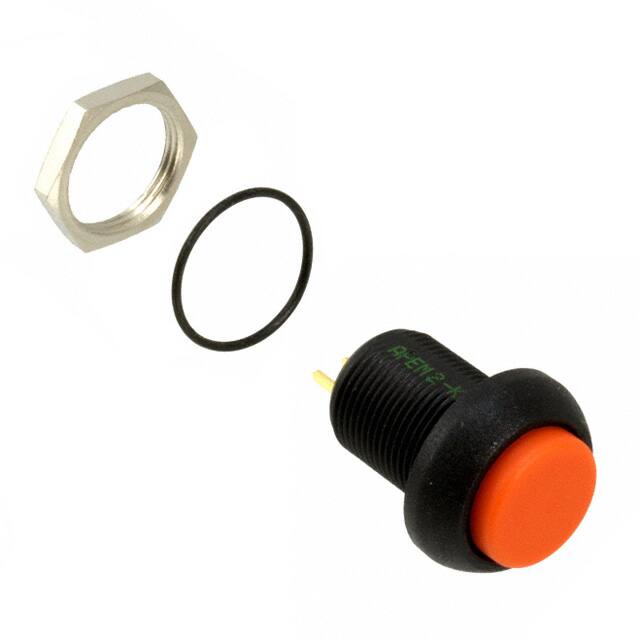

IMP7P492SWITCH PUSHBUTTON SPDT 3A 28V |
0 |
|
Datasheet |
IM | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (DC) | - | 28 V | Round, Button | No Marking | Orange | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
