Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D16OAR11KYELYELSWITCH PUSHBUTTON SPDT 8A 125V |
0 |
|
Datasheet |
D16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 8A (AC), 6A (DC) | 125 V | 24 V | Round, Button | No Marking | Yellow | LED, Yellow | 24 VDC | Solder Lug | - | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
PB-12600AQSWITCH PUSHBUTTON SPDT 6A 125V |
0 |
|
Datasheet |
PB | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | SPDT | On-Mom | 6A (AC/DC) | 125 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | - | - |
|
|
PS14-2112GSWITCH PUSHBUTTON DPDT 1A 125V |
0 |
|
Datasheet |
PS | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 1A (AC/DC) | 125 V | 28 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | - | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C |
|
|
PS14-2122BSWITCH PUSH DPDT 0.4VA 28V |
0 |
|
Datasheet |
PS | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | White | - | - | Solder Lug | - | - | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C |
|
|
PS15-2124QSWITCH PUSHBUTTON DPDT 1A 125V |
0 |
|
Datasheet |
PS | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 1A (AC/DC) | 125 V | 28 V | Square, Button | No Marking | White | - | - | Solder Lug | - | - | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C |
|
|
PS9-200QSWITCH PUSHBUTTON DPDT 1A 125V |
0 |
|
Datasheet |
PS | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 1A (AC/DC) | 125 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
NP8S5L203QESWITCH PUSHBUTTON SPDT 5A 32V |
4 |
|
Datasheet |
NP | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (DC) | - | 32 V | Round, Button, Domed | No Marking | Yellow | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.30mm Dia | -40°C ~ 85°C |
|
|
WB15S-DBSWITCH PUSHBUTTON SPDT 6A 125V |
0 |
|
Datasheet |
WB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | White | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 12.50mm Dia | -30°C ~ 70°C |
|
|
PV7F2Y0SS-303-M03SWITCH PB DPST-NO/NC 2A 48V |
0 |
|
Datasheet |
PV7, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | - | Silver | LED, White | 6 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|
|
PV4FW30SS-341-M26SWITCH PB SPDT 2A 48V |
0 |
|
Datasheet |
PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 2A (DC) | - | 24 V | Round, Button, Flush | - | Silver | LED, Blue | 2.8 VDC | Wire Leads | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
IMR7P412SWITCH PUSHBUTTON SPDT 3A 28V |
0 |
|
Datasheet |
IM | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (DC) | - | 28 V | Round, Button, Domed | No Marking | Blue | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|

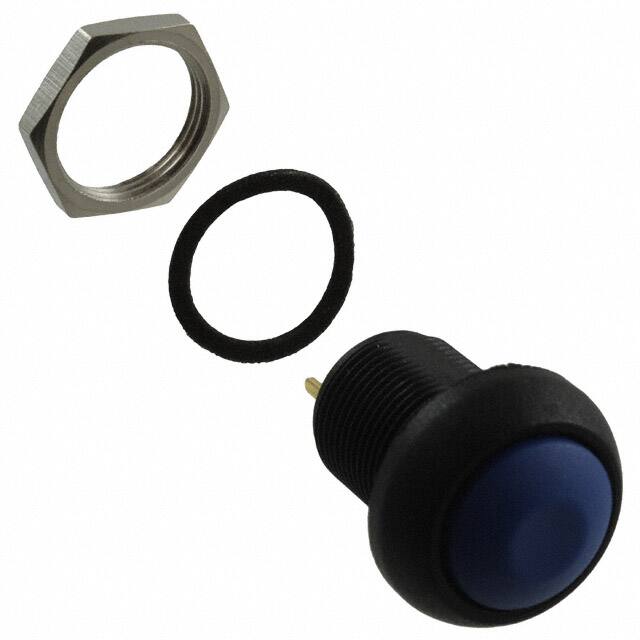

IMR7P4B2SWITCH PUSHBUTTON SPDT 3A 28V |
0 |
|
Datasheet |
IM | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (DC) | - | 28 V | Round, Button, Domed | No Marking | Blue, Dark | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|

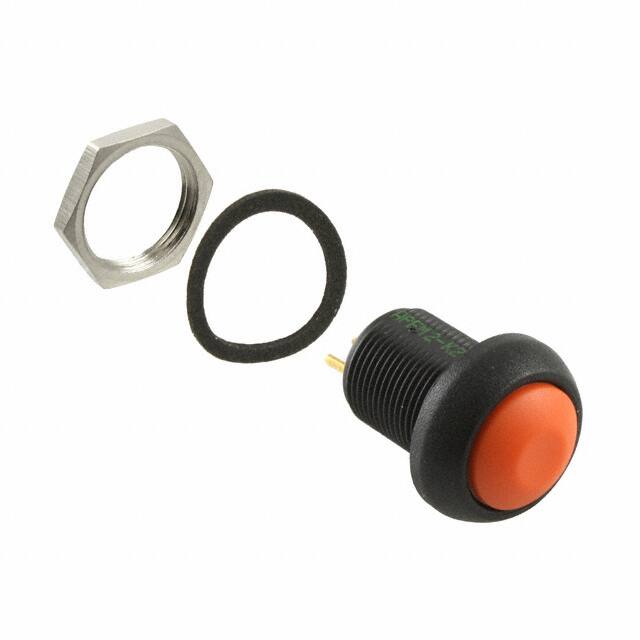

IMR7P492SWITCH PUSHBUTTON SPDT 3A 28V |
0 |
|
Datasheet |
IM | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (DC) | - | 28 V | Round, Button, Domed | No Marking | Orange | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
IMR7P432SWITCH PUSHBUTTON SPDT 3A 28V |
0 |
|
Datasheet |
IM | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (DC) | - | 28 V | Round, Button, Domed | No Marking | Green | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
IMR7P452SWITCH PUSHBUTTON SPDT 3A 28V |
0 |
|
Datasheet |
IM | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (DC) | - | 28 V | Round, Button, Domed | No Marking | Yellow | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
|
DHU281NGBRGNBSWITCH PB SPDT 16A 125V |
0 |
|
Datasheet |
DHU | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 16A (AC) | 125 V | - | Round, Button, Flush | No Marking | Black | LED, Green/Red | - | Quick Connect - 0.110"/0.250" | IP67 - Dust Tight, Waterproof | - | Circular - 28.00mm Dia | -40°C ~ 85°C |
|
|
DHU281NBBRGNBSWITCH PB SPDT 16A 125V |
0 |
|
Datasheet |
DHU | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 16A (AC) | 125 V | - | Round, Button, Flush | No Marking | Black | LED, Green/Red | - | Quick Connect - 0.110"/0.250" | IP67 - Dust Tight, Waterproof | - | Circular - 28.00mm Dia | -40°C ~ 85°C |
|
|
DHU281NGSRGNBSWITCH PB SPDT 16A 125V |
0 |
|
Datasheet |
DHU | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 16A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Green/Red | - | Quick Connect - 0.110"/0.250" | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 28.00mm Dia | -40°C ~ 85°C |
|
|
DHU281NBSRGNBSWITCH PB SPDT 16A 125V |
0 |
|
Datasheet |
DHU | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 16A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Green/Red | - | Quick Connect - 0.110"/0.250" | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 28.00mm Dia | -40°C ~ 85°C |
|
|
TPF11FGPC0SWITCH PUSHBUTTON SPDT 0.4VA 20V |
0 |
|
- |
TP | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 65°C |
