Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GP0115ACCG30-RSWITCH PUSH SPST-NO 0.4VA 28V |
1,000 |
|
Datasheet |
GP01 | Tape & Reel (TR) | Last Time Buy | Surface Mount, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | J Lead | - | - | - | -40°C ~ 85°C |
|
1825097-9SWITCH PUSHBUTTON SPDT 0.4VA 20V |
292 |
|
Datasheet |
TP | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
|
|
TPB11FGPC004Pushbutton Switches SPDT TINY MO |
292 |
|
- |
* | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
GP0115ACAG30-RSWITCH PUSH SPST-NO 0.4VA 28V |
292 |
|
Datasheet |
GP01 | Tape & Reel (TR) | Last Time Buy | Surface Mount, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | J Lead | - | - | - | -40°C ~ 85°C |
|
|
MB2065SD3W01-BFSWITCH PUSHBUTTON SPDT 6A 125V |
133 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Green | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
F8UEESWITCH PUSH 8PDT 0.5A 125V |
173 |
|
Datasheet |
F | Bulk | Active | Through Hole, Right Angle | Standard | 8PDT | On-On | 500mA (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin, Solder Lug | - | - | - | -40°C ~ 70°C |
|
|
GB25AP-XBSWITCH PUSH DPDT 0.4VA 28V |
0 |
|
Datasheet |
GB | Box | Active | Through Hole | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | White | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|

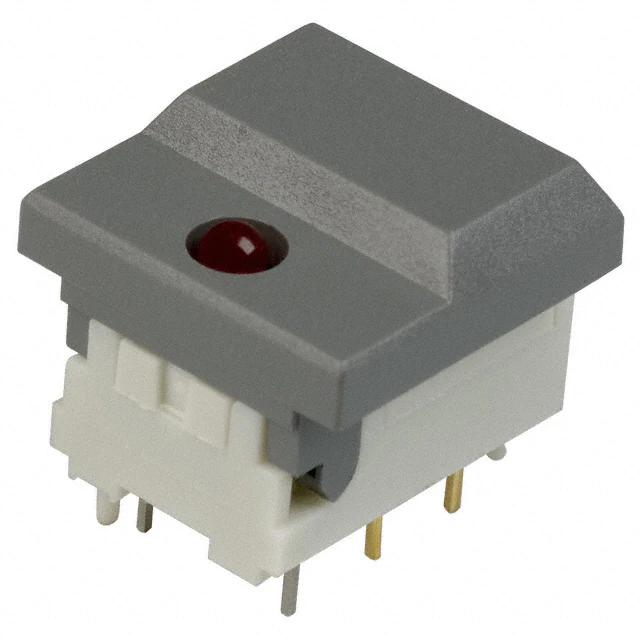

SETL GY RD 7.62 AU OASWITCH PUSH SPDT 0.01A 24V |
305 |
|
Datasheet |
DIGITAST | Tray | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 10mA (DC) | - | 24 V | Square, Button | No Marking | Gray | LED, Red | - | PC Pin | - | - | - | -25°C ~ 85°C |
|
|
1241.1104.7059SWITCH PUSH SPST-NO 125MA 48V |
200 |
|
Datasheet |
MCS18 | Bulk | Obsolete | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 125mA (DC) | - | 48 V | Round, Button, Flush | No Marking | - | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 13.00mm Dia | -25°C ~ 60°C |
|
C7053AFNABSWITCH PB ON-OFF DP ILLUM |
198 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPST | On-Off | 16A (AC) | 250 V | - | Round, Button | No Marking | Green | - | - | Quick Connect - 0.250" (6.3mm) | IP40 | - | Circular - 25.00mm Dia | - |
|
|
1-1571990-4SWITCH PUSH SPST-NO 0.4VA 20V |
0 |
|
Datasheet |
TSP | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | Wire Wrap | - | Process Sealed | - | -30°C ~ 85°C |
|
|
EB2011P-BBLIGHT TOUCH MINIATURE PUSHBUTTON |
0 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | - | White | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -10°C ~ 70°C |
|
|
SB4011NCM-2CSWITCH PUSH SPST-NC 3A 125V |
0 |
|
Datasheet |
SB40 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -10°C ~ 70°C |
|
|
EB2011P-BGSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Blue | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|
|
EB2011P-CCSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Red | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|
|
EB2011P-CGSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Blue | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|
|
EB2011P-CHSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Gray | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|
|
EB2011P-CESWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Yellow | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|

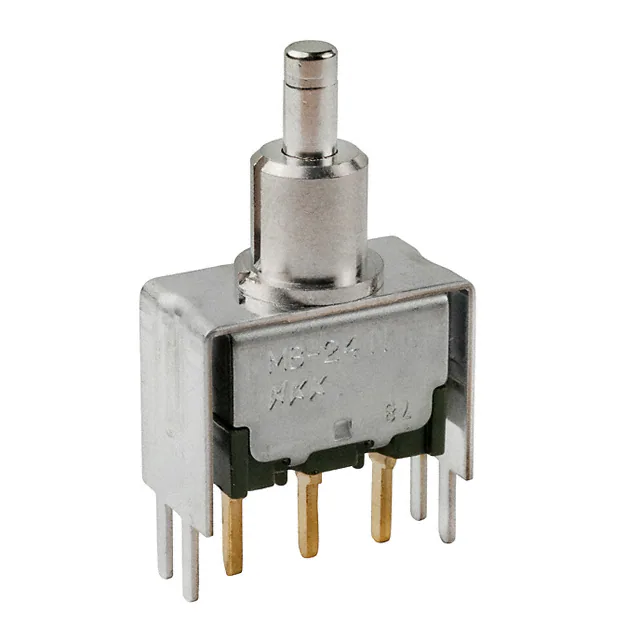

MB2411A2G13SWITCH PUSH SPDT 0.4VA 28V |
115 |
|
- |
MB2400 | Bulk | Obsolete | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
MB2011LS1W03-CCSWITCH PUSHBUTTON SPDT 6A 125V |
413 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
