Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XB6EAF8B2PILLUMINATED MONOLITHIC PUSH BUTT |
0 |
|
Datasheet |
Harmony XB6E | Box | Obsolete | Panel Mount, Front | Standard, Illuminated | DPST-NC | Off-On | - | - | - | Round, Button, Flush | - | Orange | LED, Orange | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
YB16WCKG01-5C-JBSWITCH PUSHBUTTON SPDT 0.4VA 28V |
0 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB16WCKG01-5D-JBSWITCH PUSHBUTTON SPDT 0.4VA 28V |
0 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Amber | 2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
DHU251LGSBNBSWITCH PB SPDT 16A 125V |
0 |
|
Datasheet |
DHU | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 16A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | - | Quick Connect - 0.110"/0.250" | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 25.00mm Dia | -40°C ~ 85°C |
|
|
00711160PLUNGER SWITCH 2P- N.O. |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D16EER12SWITCH PB DPDT 8A 125V |
0 |
|
Datasheet |
D16 | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 8A (AC), 6A (DC) | 125 V | 24 V | Round, Button (Not Included) | - | - | - | - | Solder Lug | - | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
D16EET12SWITCH PB DPDT 8A 125V |
0 |
|
Datasheet |
D16 | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 8A (AC), 6A (DC) | 125 V | 24 V | Rectangular, Button (Not Included) | - | - | - | - | Solder Lug | - | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
D16EES12SWITCH PB DPDT 8A 125V |
0 |
|
Datasheet |
D16 | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 8A (AC), 6A (DC) | 125 V | 24 V | Square, Button (Not Included) | - | - | - | - | Solder Lug | - | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
AH1NBBWNSWITCH PB DPST-NO/NC 1A 125V |
0 |
|
Datasheet |
AH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Mom, Off-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Black | LED, White | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel 316 | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1NBSONSWITCH PB DPST-NO/NC 1A 125V |
0 |
|
Datasheet |
AH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Mom, Off-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | LED, Orange | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
MSPM101CSSWITCH PUSHBUTTON SPST-NO 100MA |
0 |
|
Datasheet |
MSPM | Bulk | Obsolete | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 100mA (DC) | - | 50 V | Plunger for Cap | No Marking | Red | - | - | Solder Turret | - | Audible Click | Circular - 6.35mm Dia | -10°C ~ 80°C |
|
|
UB26KKG015C-ABSWITCH PUSHBUTTON DPDT 0.4VA 28V |
0 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Black (White Window) | LED, Red | 1.85 VDC | Solder Lug | - | Stainless Steel | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|

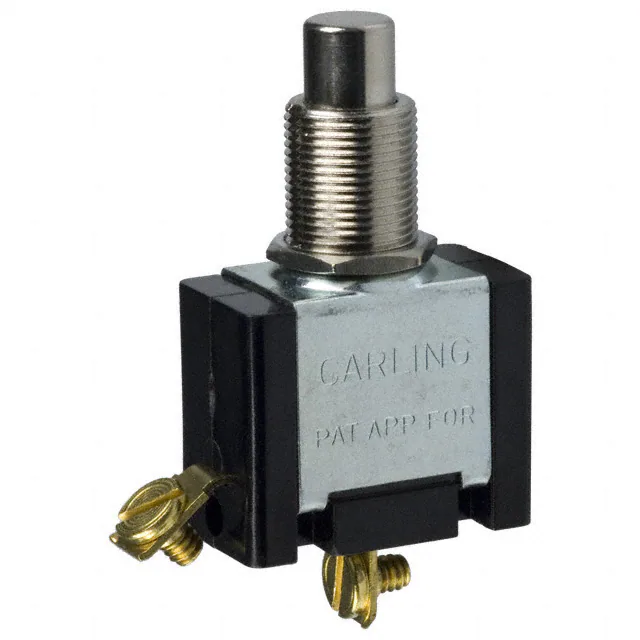

PA304SWITCH PUSH SPST 20A 125V |
0 |
|
Datasheet |
P | Bulk | Active | Panel Mount, Rear | Standard (Footswitch) | SPST | On-Off | 20A (AC) | 125 V | - | Round, Plunger, Metal | No Marking | Silver | - | - | Screw Terminal | - | - | Circular - 12.70mm Dia | 0°C ~ 85°C |
|
|
D16EER130GRNSWITCH PUSHBUTTON 3PDT 8A 125V |
0 |
|
Datasheet |
D16 | Bulk | Active | Panel Mount, Front | Standard | 3PDT | On-On | 8A (AC), 6A (DC) | 125 V | 24 V | Round, Button | No Marking | Green | - | - | Solder Lug | - | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
MSPM101B0SWITCH PUSHBUTTON SPST-NC 100MA |
0 |
|
Datasheet |
MSPM | Bulk | Obsolete | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 100mA (DC) | - | 50 V | Round, Button | No Marking | Black | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -10°C ~ 80°C |
|
|
AVH22LSSFE15121604SWITCH PUSHBUTTON SPDT 16A 125V |
0 |
|
- |
AVH | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 16A (AC) | 125 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Yellow | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -25°C ~ 85°C |
|
|
AVH22MSSFE15241604SWITCH PUSHBUTTON SPDT 16A 125V |
0 |
|
- |
AVH | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 16A (AC) | 125 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Yellow | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -25°C ~ 85°C |
|
AVH22LSSFE11121604SWITCH PUSHBUTTON SPDT 16A 125V |
0 |
|
- |
AVH | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 16A (AC) | 125 V | - | Round, Button, Flush | Power Symbol | Silver | LED, White | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -25°C ~ 85°C |
|
|
AVH22LSSFE15241604SWITCH PUSHBUTTON SPDT 16A 125V |
0 |
|
- |
AVH | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 16A (AC) | 125 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Yellow | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -25°C ~ 85°C |
|
|
AVH22LSSFE11241604SWITCH PUSHBUTTON SPDT 16A 125V |
0 |
|
- |
AVH | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 16A (AC) | 125 V | - | Round, Button, Flush | Power Symbol | Silver | LED, White | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -25°C ~ 85°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
