Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AV2521E324Q04SWITCH PUSHBUTTON DPDT 3A 250V |
0 |
|
Datasheet |
AV25 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Red | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
|
AV2521E524Q04SWITCH PUSHBUTTON DPDT 3A 250V |
0 |
|
Datasheet |
AV25 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Yellow | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
|
AV2520E624Q04SWITCH PUSHBUTTON DPDT 3A 250V |
0 |
|
Datasheet |
AV25 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Green | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
|
AV2520E324Q04SWITCH PUSHBUTTON DPDT 3A 250V |
0 |
|
Datasheet |
AV25 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Red | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
|
AV2520E524Q04SWITCH PUSHBUTTON DPDT 3A 250V |
0 |
|
Datasheet |
AV25 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Yellow | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
|
AV2511E724Q04SWITCH PUSHBUTTON SPDT 3A 250V |
0 |
|
Datasheet |
AV25 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
|
AV2510E724Q04SWITCH PUSHBUTTON SPDT 3A 250V |
0 |
|
Datasheet |
AV25 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
|
AV2510E124Q04SWITCH PUSHBUTTON SPDT 3A 250V |
0 |
|
Datasheet |
AV25 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, White | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
|
SCB25S10C-4AASWITCH PUSHBUTTON DPDT 10A 125V |
0 |
|
Datasheet |
SCB | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-Mom | 10A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Screw Terminal | - | With Shroud | Circular - 12.50mm Dia | -40°C ~ 85°C |
|
|
PA344SWITCH PUSH BUTTON |
0 |
|
- |
P | Bulk | Active | Panel Mount, Rear | Standard (Footswitch) | SPST | On-Off | 15A (AC) | 125 V | - | Round, Plunger, Metal | - | Silver | - | - | Screw Terminal | - | - | Circular - 12.70mm Dia | 0°C ~ 85°C |
|
|
D16EER1JGRNGRNTRANSPARENSWITCH PB SPDT 8A 125V |
0 |
|
Datasheet |
D16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 8A (AC), 6A (DC) | 125 V | 24 V | Round, Button, Mushroom | - | Green | LED, Green | 12 VDC | Solder Lug | - | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
DH221NBSB24SWITCH PB DPST-NO/NC 2A 125V |
0 |
|
Datasheet |
DH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Mom, Off-Mom | 2A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
DH252NASZZSWITCH PB 4PST-2NO/2NC 2A 125V |
0 |
|
Datasheet |
DH | Tray | Active | Panel Mount, Front | Anti-Vandal | DPST-NO/NC | On-Mom, Off-Mom | 2A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 25.00mm Dia | -25°C ~ 70°C |
|
|
DH252NABZZSWITCH PB 4PST-2NO/2NC 2A 125V |
0 |
|
Datasheet |
DH | Tray | Active | Panel Mount, Front | Anti-Vandal | DPST-NO/NC | On-Mom, Off-Mom | 2A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 25.00mm Dia | -25°C ~ 70°C |
|
|
DH221NBSB12SWITCH PB DPST-NO/NC 2A 125V |
0 |
|
Datasheet |
DH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Mom, Off-Mom | 2A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 22.00mm Dia | -25°C ~ 70°C |
|

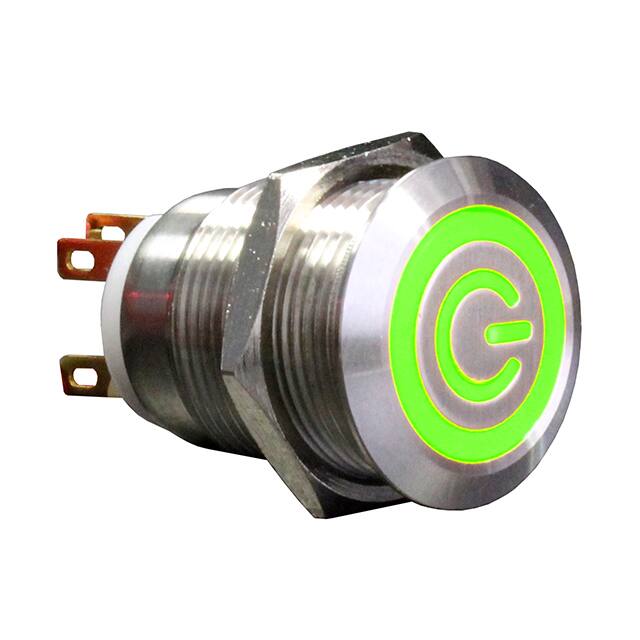

AH1NGSRGNSWITCH PB DPST-NO/NC 1A 125V |
0 |
|
Datasheet |
AH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Mom, Off-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
MWPM3B4M9SWITCH PB DPST 10A 250VAC |
0 |
|
Datasheet |
M | Bulk | Active | Panel Mount, Front | Standard | DPST-NO | Off-Mom | 10A (AC/DC) | 125 V | 14 V | Round, Button | - | Green | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 22.50mm Dia | - |
|
|
MWLM1B12VG4M9SWITCH PB SPST 10A 250VAC |
0 |
|
Datasheet |
M | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 125 V | 14 V | Round, Button | - | Green | LED, Green | 12 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 22.50mm Dia | - |
|
|
MWLA1B12VA3M9SWITCH PB SPST 10A 250VAC |
0 |
|
Datasheet |
M | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-On | 10A (AC/DC) | 125 V | 14 V | Round, Button | - | Amber | LED, Amber | 12 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 22.50mm Dia | - |
|
|
PB-12632Z3QSwitches |
0 |
|
- |
PB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC/DC) | 125 V | 28 V | Round, Button | - | White | - | - | Quick Connect - 0.062" (1.5mm) | - | - | - | - |
