Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AL1M-A11JW10MM ROUND MAINT LED PB SPDT |
0 |
|
Datasheet |
A2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 1A (AC/DC) | 120 V | 24 V | Round, Button | - | White | LED, White | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 10.00mm Dia | -25°C ~ 55°C |
|
|
AL1M-A11-ARND LED PB SPDT IP4 |
0 |
|
Datasheet |
A2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 1A (AC/DC) | 120 V | 24 V | Round, Button | - | Amber | LED, Amber | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 10.00mm Dia | -25°C ~ 55°C |
|
|
AL1Q-A11JW10MM SQUARE MAINT LED PB SPDT |
0 |
|
Datasheet |
A2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 1A (AC/DC) | 120 V | 24 V | Square, Button | - | White | LED, White | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 10.00mm Dia | -25°C ~ 55°C |
|
|
AL1H-A11-YRCT LED PB SPDT IP4 |
0 |
|
Datasheet |
A2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 1A (AC/DC) | 120 V | 24 V | Rectangular, Button | - | Yellow | LED, Yellow | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 10.00mm Dia | -25°C ~ 55°C |
|
|
YB15KKW03-5C05-JBSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Red | 5 VDC | PC Pin | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB15KKW03-5F05-JBSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 5 VDC | PC Pin | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 50°C |
|

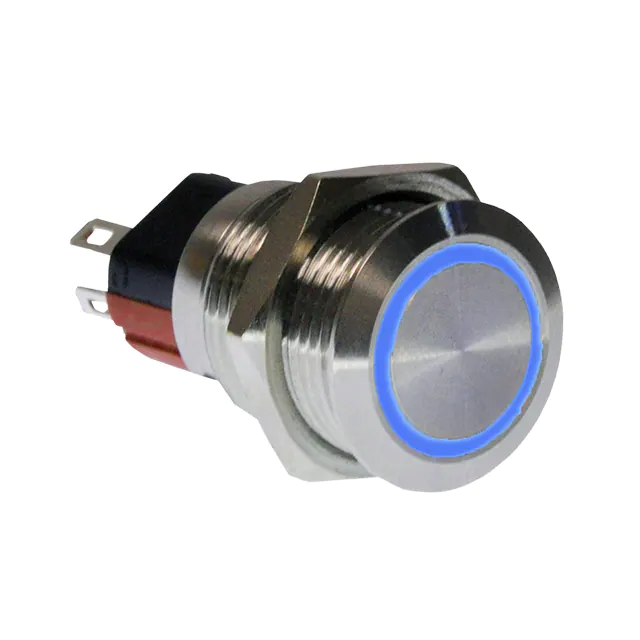

PVA3H230SS341SWITCH PB SPST 2A 36V |
0 |
|
Datasheet |
PVA3 | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 2A (DC) | - | 36 V | Round, Button | No Marking | Silver | LED, Blue | 2.8 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
1977737-1SWITCH PUSHBUTTON SPDT 60MA |
0 |
|
Datasheet |
Blue | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-On | 60mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Tactile/Audible Feedback | - | -20°C ~ 80°C |
|
1977738-2SWITCH PUSHBUTTON SPDT 60MA |
0 |
|
Datasheet |
Blue | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 60mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Tactile/Audible Feedback | - | -20°C ~ 80°C |
|
|
ISR3Z1AD7/100PUSHBUTTON SWITCH FD DBLE ICON |
0 |
|
- |
IS | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 400mA (AC), 100mA (DC) | 32 V | 48 V | Round, Button, Domed | - | White | - | - | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
|
LB15WGW01/USWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
HA2B-M1C6-B16MM PUSHBUTTON BLACK |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MBN12SB1W03-AT4043LARGE BUSHING MINIATURE PUSHBUTT |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MBN25SB1G01LARGE BUSHING MINIATURE PUSHBUTT |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MBN15SB3G03LARGE BUSHING MINIATURE PUSHBUTT |
0 |
|
- |
MB2000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | - | - | - | - | PC Pin | IP67 - Dust Tight, Waterproof | - | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
|
PV4F2Y011-345-M26Switches |
0 |
|
Datasheet |
PV4 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 2A (DC) | - | 24 V | Round, Button, Flush | - | Black | LED, Blue | 24 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
|
D16OAR12SWITCH PB DPDT 8A 125V |
0 |
|
Datasheet |
D16 | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 8A (AC), 6A (DC) | 125 V | 24 V | Round, Button (Not Included) | - | - | - | - | Solder Lug | - | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
D16OAS12SWITCH PB DPDT 8A 125V |
0 |
|
Datasheet |
D16 | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 8A (AC), 6A (DC) | 125 V | 24 V | Square, Button (Not Included) | - | - | - | - | Solder Lug | - | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
LAKOAV11JREDREDSWITCH PUSHBUTTON SPDT 8A 125V |
0 |
|
Datasheet |
LA | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 8A (AC), 6A (DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Red | LED, Red | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|
|
PV4F6Y0SS-3G5SWITCH PB DPST-NO/NC 2A 24V |
0 |
|
Datasheet |
PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 2A (DC) | - | 24 V | Round, Button, Flush | - | Silver | LED, Green/Red | 24 VDC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
