Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P16EET11FGRNGRNSWITCH PUSHBUTTON SPDT 8A 125V |
0 |
|
Datasheet |
P16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 8A (AC), 6A (DC) | 125 V | 24 V | Rectangular, Button | No Marking | Green | Neon, Green | 110 VAC | Quick Connect - 0.110" (2.8mm) | - | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
1825041-8SWITCH PUSHBUTTON 4PDT 6A 125V |
0 |
|
Datasheet |
MPE | Bulk | Obsolete | Panel Mount, Rear | Standard | 4PDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | Splash Proof | - | Circular - 6.35mm Dia | -20°C ~ 80°C |
|
|
1-1825042-2SWITCH PUSHBUTTON 4PDT 6A 125V |
0 |
|
Datasheet |
MPG | Bulk | Obsolete | Panel Mount, Rear | Standard | 4PDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 28 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 11.80mm Dia | -20°C ~ 80°C |
|
|
1-1825042-1SWITCH PUSHBUTTON 4PDT 6A 125V |
0 |
|
Datasheet |
MPG | Bulk | Obsolete | Panel Mount, Rear | Standard | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 28 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 11.80mm Dia | -20°C ~ 80°C |
|
|
MBN15SB3G01-DALARGE BUSHING MINIATURE PUSHBUTT |
0 |
|
Datasheet |
M | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | - | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
|
D16OAS21HREDREDSWITCH PUSHBUTTON SPDT 8A 125V |
0 |
|
Datasheet |
D16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 8A (AC), 6A (DC) | 125 V | 24 V | Square, Button, Flush | No Marking | Red | LED, Red | 6 VDC | Solder Lug | - | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
C7053AFBG2DPST PUSH BUTTON SWITCH GREEN |
0 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPST | On-Off | 16A (AC) | 250 V | - | Round, Button | No Marking | Green | Neon, Green | 125 VAC | Quick Connect - 0.250" (6.3mm) | IP40 | - | Circular - 25.00mm Dia | - |
|
|
PV4H2B0SS-315SWITCH PB SPDT 2A 24V |
0 |
|
Datasheet |
PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 2A (DC) | - | 24 V | Round, Button | - | Silver | LED, Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
|
PV4H2B0SS-245SWITCH PB SPDT 2A 24V |
0 |
|
Datasheet |
PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 2A (DC) | - | 24 V | Round, Button | - | Silver | LED, Blue | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
|
PV4H2B0SS-335SWITCH PB SPDT 2A 24V |
0 |
|
Datasheet |
PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 2A (DC) | - | 24 V | Round, Button | - | Silver | LED, Green | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
|
PV4H2B0SS-325SWITCH PB SPDT 2A 24V |
0 |
|
Datasheet |
PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 2A (DC) | - | 24 V | Round, Button | - | Silver | LED, Orange | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
|
PV4H2B0SS-305SWITCH PB SPDT 2A 24V |
0 |
|
Datasheet |
PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 2A (DC) | - | 24 V | Round, Button | - | Silver | LED, White | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
|
PV4H2B0SS-235SWITCH PB SPDT 2A 24V |
0 |
|
Datasheet |
PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 2A (DC) | - | 24 V | Round, Button | - | Silver | LED, Green | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|

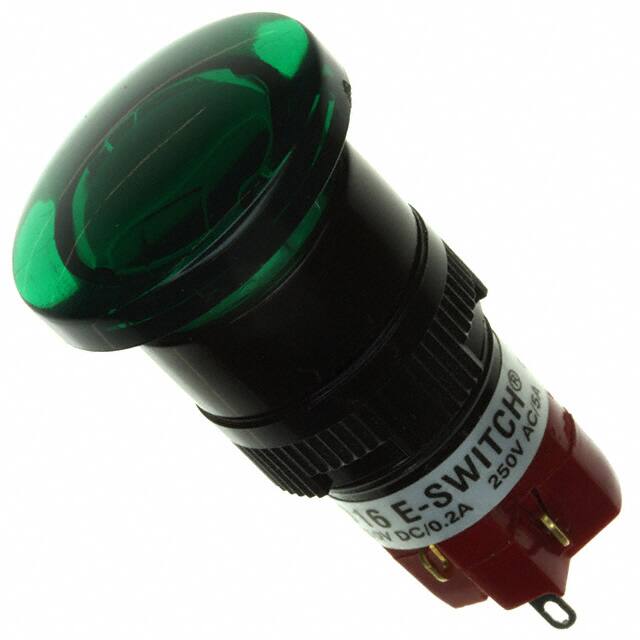

D16OAR1JGRNGRNSWITCH PUSHBUTTON SPDT 8A 125V |
0 |
|
Datasheet |
D16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 8A (AC), 6A (DC) | 125 V | 24 V | Round, Button, Mushroom | No Marking | Green | LED, Green | 12 VDC | Solder Lug | - | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
TP43W003050SWITCH PUSH DPST-NO 0.4VA 20V |
0 |
|
Datasheet |
TP | Bulk | Active | Through Hole, Right Angle | Standard | DPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Overtravel | - | -30°C ~ 85°C |
|
|
ULV8F2BSS301SWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
ULV8 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, White | 3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 25.00mm Dia | -20°C ~ 55°C |
|
|
SV8FW3SS-341SWITCH PB SPST 2A 36V |
0 |
|
Datasheet |
SV8 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Flush | - | Silver | LED, Blue | 3.1 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 25.20mm Dia | -20°C ~ 70°C |
|
|
MBN15SB1W03-BCLARGE BUSHING MINIATURE PUSHBUTT |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MBN15SB1W03-BALARGE BUSHING MINIATURE PUSHBUTT |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
U821SD3V4GESWITCH PUSHBUTTON DPDT 1A 120V |
0 |
|
Datasheet |
8020 | Tray | Active | Through Hole | Standard | DPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 65°C |
