Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MFLM6B2VA2M9SWITCH PB SPST 10A 250VAC |
0 |
|
Datasheet |
M | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 125 V | 14 V | Round, Button | - | Clear | LED, Amber | 2 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 22.50mm Dia | - |
|
|
3-145-274SWITCH PUSHBUTTON SPDT 10A 250V |
0 |
|
- |
MSM II | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9633NAKBSWITCH PUSH SPST-NO 1A 30V |
0 |
|
Datasheet |
9000 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 1A (DC) | - | 30 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Voltage Reduction Lighting | Circular - 6.50mm Dia | -30°C ~ 65°C |
|
1241.2857SWITCH PUSH SPST-NO 125MA 48V |
0 |
|
Datasheet |
MCS | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 125mA (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Yellow | 2 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 19.00mm Dia | -25°C ~ 60°C |
|
|
LB15CKW01/USWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|

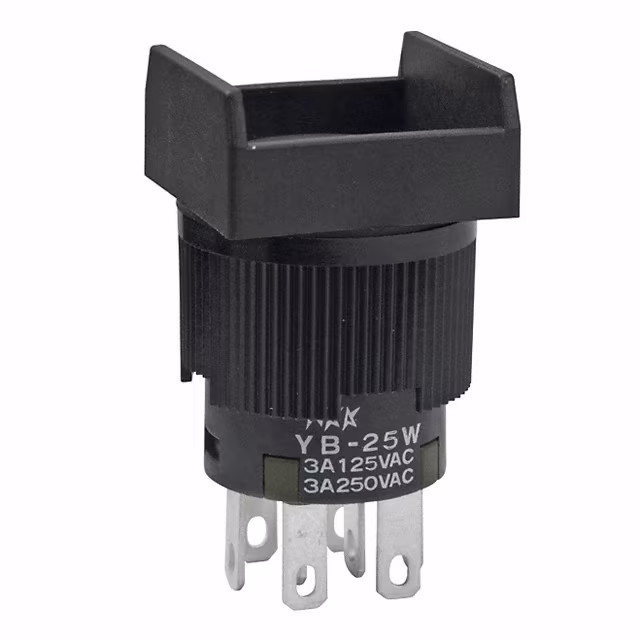

YB25WSKW01/UCSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
YB | Bulk | Obsolete | Panel Mount, Front | Standard | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
LB15SGW01/USWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 70°C |
|
|
LB15SKW01/USWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 70°C |
|
|
SAV7F13SS645Switches |
0 |
|
Datasheet |
SAV7 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 15A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, Blue | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.00mm Dia | -25°C ~ 85°C |
|
|
PVT4FW4SS345SWITCH PB SPST 0.05A 24V |
0 |
|
Datasheet |
PVT4 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | - | Silver | LED, Blue | 24 VDC | Wire Leads | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -25°C ~ 55°C |
|
|
PVT4FW4SS315SWITCH PB SPST 0.05A 24V |
0 |
|
Datasheet |
PVT4 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | - | Silver | LED, Red | 24 VDC | Wire Leads | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -25°C ~ 55°C |
|
|
LB15SKG01-CF-ASWITCH PUSHBUTTON SPDT 0.4VA 28V |
0 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Black | LED, Green/Red | 2.0, 2.2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
8632ADBPUSHBUTTON SWITCH 8000 |
0 |
|
- |
8000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Plunger for Cap | - | Silver | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -40°C ~ 85°C |
|
|
MBN12SB1W03LARGE BUSHING MINIATURE PUSHBUTT |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MBN12SB1W03-DALARGE BUSHING MINIATURE PUSHBUTT |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1-1825098-5SWITCH PUSH DPST-NO 1A 125V |
0 |
|
Datasheet |
TP | Bulk | Obsolete | Panel Mount, Rear | Standard | DPST-NO | Off-Mom | 1A (AC/DC) | 125 V | 20 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | - | Circular - 4.83mm Dia | -30°C ~ 65°C |
|
|
SAV8F13SS301Switches |
0 |
|
Datasheet |
SAV8 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 15A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, White | 3 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 25.20mm Dia | -25°C ~ 85°C |
|
|
ULV8F2GSS351SWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
ULV8 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-On | 3A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, Yellow | 3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 25.00mm Dia | -20°C ~ 55°C |
|
|
ULV8F2GSS315SWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
ULV8 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-On | 3A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 25.00mm Dia | -20°C ~ 55°C |
|
|
ULV8F2GSS335SWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
ULV8 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-On | 3A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, Green | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 25.00mm Dia | -20°C ~ 55°C |
