Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

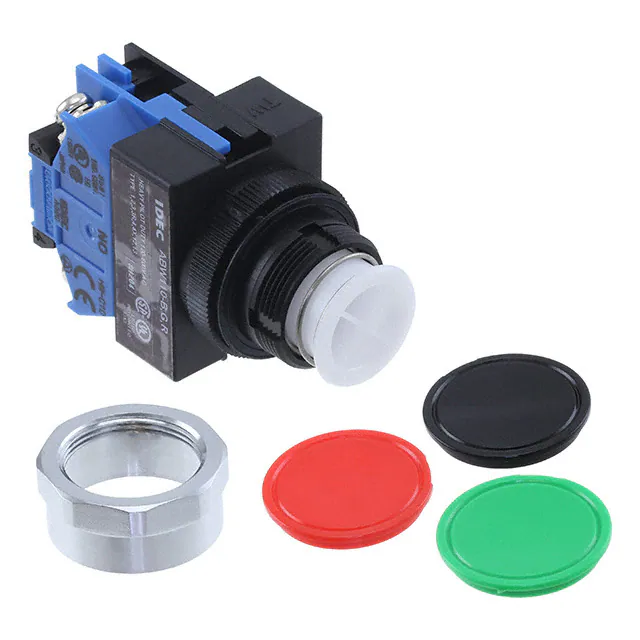

ABW110-BGRPUSHBUTTON 22MM FLUSH 1NO IDEC |
150 |
|
Datasheet |
TW | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC), 8A (DC) | 110 V | 24 V | Round, Button, Flush | No Marking | Black, Green, Red | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|

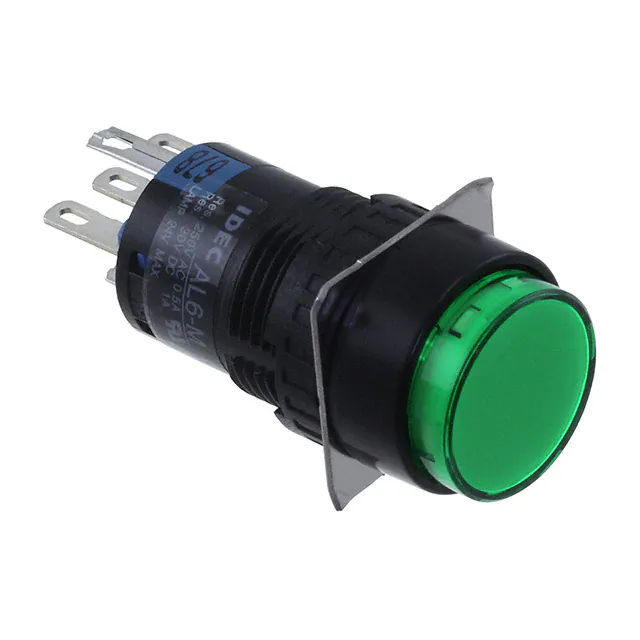

AL6M-M14P-G16MM PUSHBUTTON ILLUMINATED IDEC |
185 |
|
Datasheet |
A6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Green | LED, Green | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Oil and Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|

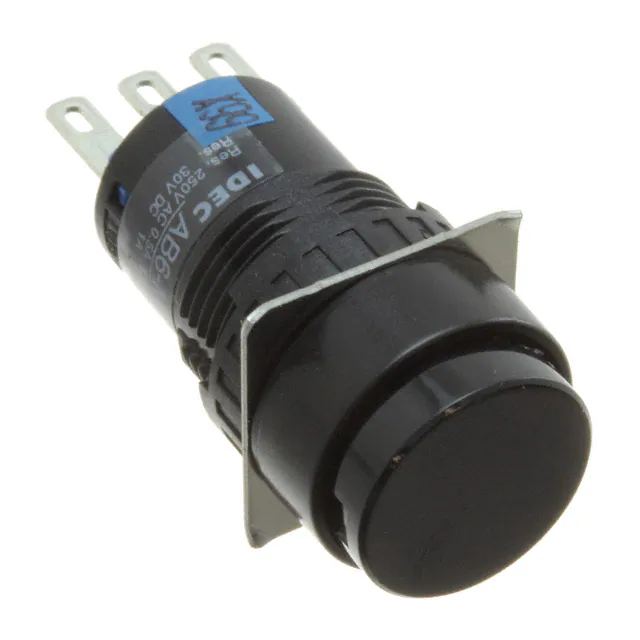

AB6M-M1P-B16MM PUSHBUTTON BLACK IDEC |
211 |
|
Datasheet |
A6 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Oil and Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
PN1L-M2AFB002E0W30MM PIEZO RING 24VDC WHITE IDEC |
38 |
|
Datasheet |
PN1L | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, White | 24 VDC | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 75°C |
|
LW7GB-M1C2LW25MM PUSHBUTTON WHITE IDEC |
70 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Full Guard | - | White | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Oil and Water Resistant | - | Square - 24.50mm x 24.50mm | -25°C ~ 60°C |
|
HW1B-M1F10-S22MM PUSHBUTTON BLUE IDEC |
55 |
|
Datasheet |
HW | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC), 8A (DC) | 110 V | 24 V | Round, Button, Flush | No Marking | Blue | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
HW1B-M1F10-G22MM PUSHBUTTON GREEN IDEC |
26 |
|
Datasheet |
HW | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC), 8A (DC) | 110 V | 24 V | Round, Button, Flush | No Marking | Green | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|

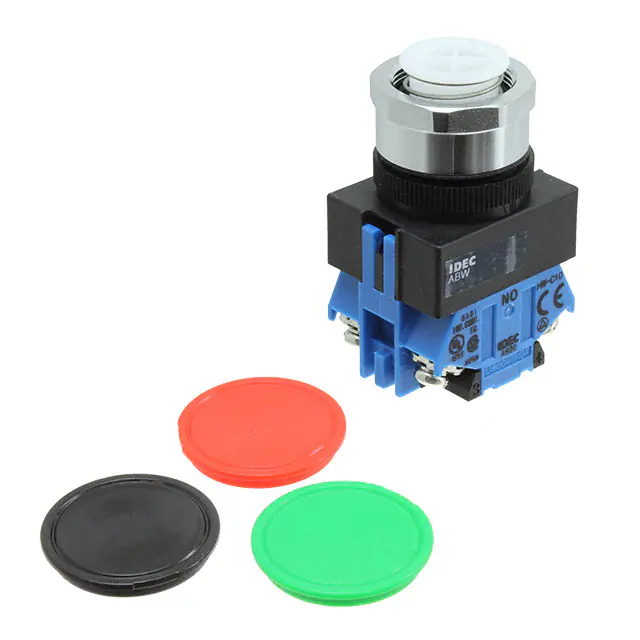

ABW101-BGRTW FLUSH PB IDEC |
7 |
|
Datasheet |
TW | Bulk | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 10A (AC), 8A (DC) | 110 V | 24 V | Round, Button, Flush | No Marking | Black, Green, Red | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|

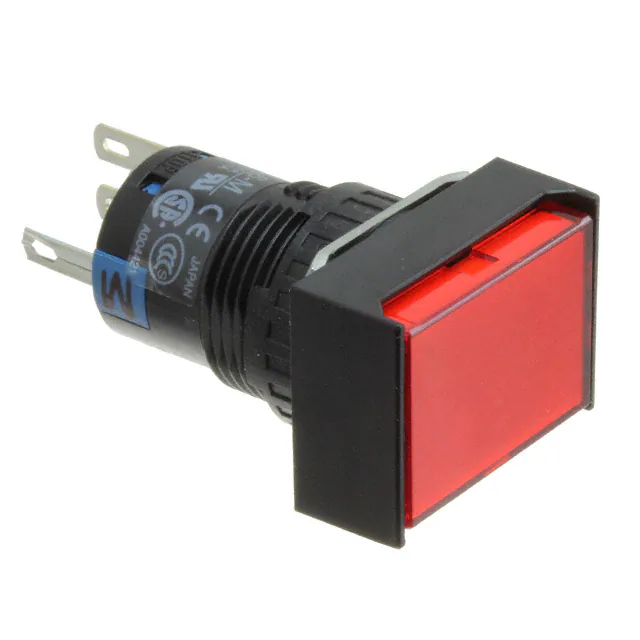

AL6H-M14P-R16MM PUSHBUTTON ILLUMINATED IDEC |
18 |
|
Datasheet |
A6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 120 V | 24 V | Rectangular, Button | No Marking | Red | LED, Red | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Oil and Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|

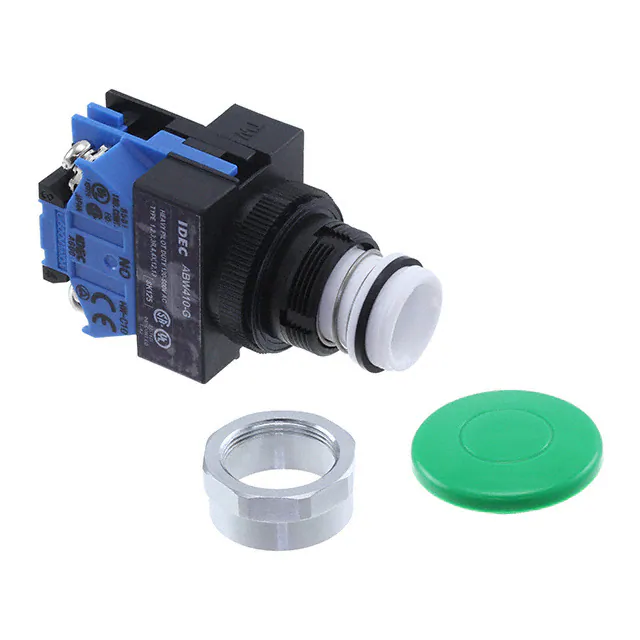

ABW410-G22MM PUSHBUTTON GREEN IDEC |
10 |
|
Datasheet |
TW | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC), 8A (DC) | 110 V | 24 V | Round, Button, Mushroom | No Marking | Green | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
