Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

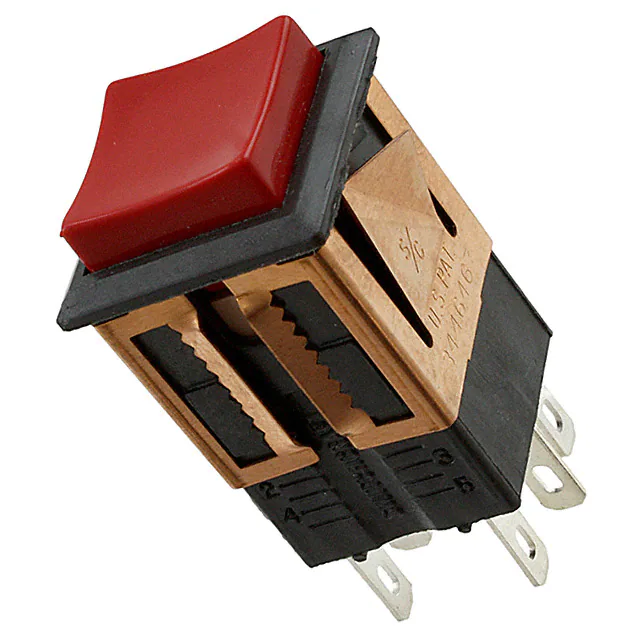

BXR016SWITCH PUSH DPDT 0.25A 115V |
0 |
|
Datasheet |
BXR | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 250mA (AC) | 115 V | - | Square, Button | No Marking | Red | - | - | Quick Connect - 0.110" (2.8mm) | - | - | Square - 15.75mm x 15.75mm | - |
|
TP21SHCBESWITCH PUSH DPST-NO 0.4VA 20V |
0 |
|
Datasheet |
TP | Tray | Obsolete | Panel Mount, Rear | Standard | DPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | Circular - 4.95mm Dia | -30°C ~ 85°C |
|
ULV7F2311336SWITCH PUSHBUTTON SPDT 3A 250V |
0 |
|
Datasheet |
ULV7 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 125 V | - | Round, Button, Flush | - | Black | LED, Green | 110 VAC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|
|
ULV4FWB11503SWITCH PB SPDT 3A 125V |
0 |
|
Datasheet |
ULV4 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button, Flush | - | Black | LED, White | 6 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
|
TP42W003050SWITCH PUSH DPDT 0.4VA 20V |
0 |
|
Datasheet |
TP | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Overtravel | - | -30°C ~ 85°C |
|
|
4846A02PUSHBUTTON SWITCH 4700 |
0 |
|
- |
4800 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-On | 6A (AC) | 125 V | - | Round, Plunger | - | Black | - | - | PC Pin | - | - | Circular - 12.20mm Dia | -20°C ~ 65°C |
|
|
LASEEU110REDSWITCH PUSHBUTTON SPDT 8A 125V |
0 |
|
Datasheet |
LA | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 8A (AC), 6A (DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Red | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|
PV3F2H0NN-234SWITCH PUSHBUTTON DPDT 2A 48V |
0 |
|
Datasheet |
PV3, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Green | 12 VDC | Solder Lug | IP40 | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
PV3F2H0NN-244SWITCH PUSHBUTTON DPDT 2A 48V |
0 |
|
Datasheet |
PV3, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 12 VDC | Solder Lug | IP40 | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
ULV4F2HSS3G1SWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
ULV4 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, Green/Red | 3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
|
UB225SKG03NSWITCH PUSHBUTTON DPDT 0.4VA 28V |
0 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Sealed - Fully | - | -25°C ~ 70°C |
|
|
MBN15SS2G30BRACKET PC MOUNT MINIATURE PUSHB |
0 |
|
- |
M | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | - | Black | - | - | PC Pin | - | - | - | - |
|
|
2-1571990-1SWITCH PUSHBUTTON SPDT 0.4VA 20V |
0 |
|
Datasheet |
TSP | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
|
PVA6HEW4S41SWITCH PB SPST 2A 36V |
0 |
|
Datasheet |
PVA6 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Domed | - | Silver | LED, Blue | 3.1 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 70°C |
|
|
9633NCDKSWITCH PUSH SPST-NO 0.1A 30V |
0 |
|
Datasheet |
9000 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Front Panel Sealing | Circular - 6.50mm Dia | -30°C ~ 65°C |
|
|
LASEEV110GSWITCH PUSHBUTTON SPDT 8A 125V |
0 |
|
Datasheet |
LA | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 8A (AC), 6A (DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Green | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|
8168SY3ZQE2SWITCH PUSHBUTTON SPDT 6A 120V |
0 |
|
Datasheet |
8060 | Tray | Last Time Buy | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 65°C |
|
|
ULV4F2HS1335SWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
ULV4 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Green | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
|
ULV4F2HS1315SWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
ULV4 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Red | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
|
ULV4F2GSS3P1SWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
ULV4 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-On | 3A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, Green/Yellow | 3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
