Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PS82-100GSWITCH PUSHBUTTON SPDT 5A 125V |
0 |
|
Datasheet |
PS | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
32-01-4-GYRASWITCH PUSH DPST 0.15A 28V |
0 |
|
Datasheet |
32 | Bulk | Active | Through Hole, Right Angle | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 150mA (DC) | - | 28 V | Round, Plunger | No Marking | Black | LED, Green/Red/Yellow | - | PC Pin | - | Sealed - Fully, Stackable | - | -40°C ~ 85°C |
|
|
C936KGSWITCH PUSH SPST-NO 0.5A 250V |
0 |
|
Datasheet |
0936 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 500mA (AC), 250mA (DC) | 250 V | 250 V | Round, Button | No Marking | Green | - | - | Quick Connect - 0.250" (6.3mm) | IP40 | - | Circular - 12.70mm Dia | - |
|
|
C936KWSWITCH PUSH SPST-NO 0.5A 250V |
0 |
|
Datasheet |
0936 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 500mA (AC), 250mA (DC) | 250 V | 250 V | Round, Button | No Marking | White | - | - | Quick Connect - 0.250" (6.3mm) | IP40 | - | Circular - 12.70mm Dia | - |
|
|
YB25CKG01-1F24-JFSWITCH PUSH DPDT 0.4VA 28V |
0 |
|
Datasheet |
YB | Bulk | Last Time Buy | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile/Audible Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
9433NAKBPUSHBUTTON SWITCH 9100 METAL |
0 |
|
- |
9000 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 1A (DC) | - | 30 V | Round, Plunger | - | - | - | - | PC Pin | - | - | Circular - 6.50mm Dia | -30°C ~ 65°C |
|
|
8632CDPUSHBUTTON SWITCH 8000 |
0 |
|
Datasheet |
8000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Plunger for Cap | - | Silver | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -40°C ~ 85°C |
|
|
C7003AFBG2SPST PUSHBUTTON SWITCH |
0 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST | On-Off | 16A (AC) | 250 V | - | Round, Button | No Marking | Green | Neon, Green | 125 VAC | Quick Connect - 0.250" (6.3mm) | IP40 | - | Circular - 25.00mm Dia | - |
|
|
LB15RKW01-JBSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.40mm x 16.20mm | -25°C ~ 70°C |
|
|
SCB16S15DSWITCH PUSH SPDT 15A 125V |
0 |
|
Datasheet |
SCB | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-On | 15A (AC) | 125 V | - | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -40°C ~ 85°C |
|

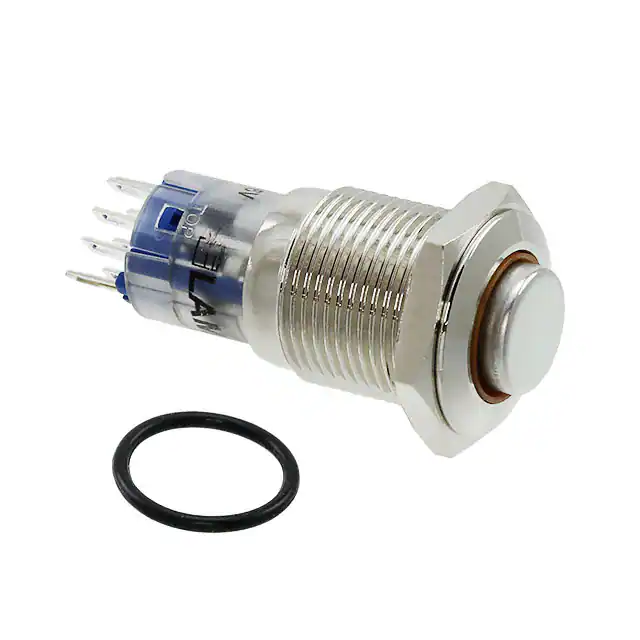

PV3H2H0NN-323SWITCH PUSHBUTTON DPDT 2A 48V |
1 |
|
Datasheet |
PV3, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 2A (DC) | - | 48 V | Round, Button | No Marking | Silver | LED, Orange | 6 VDC | Solder Lug | IP40 | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
P16EET11AWHTSWITCH PUSHBUTTON SPDT 8A 125V |
0 |
|
Datasheet |
P16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 8A (AC), 6A (DC) | 125 V | 24 V | Rectangular, Button | No Marking | White | Incandescent, White | 6 VAC/DC | Quick Connect - 0.110" (2.8mm) | - | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
SAV8F1BSS645SWITCH PB SPDT 15A 125V |
0 |
|
Datasheet |
SAV8 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 15A (AC) | 125 V | - | Round, Button | - | Silver | LED, Blue | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 25.20mm Dia | -25°C ~ 85°C |
|
|
A22NN-RPM-NGA-G002-NNSWITCH PUSH SPST-NC 10A 120V |
0 |
|
Datasheet |
A22NN | Bulk | Obsolete | Panel Mount, Front | Standard | SPST-NC | On-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Green | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A22NN-RPM-NRA-G002-NNSWITCH PUSH SPST-NC 10A 120V |
0 |
|
Datasheet |
A22NN | Bulk | Obsolete | Panel Mount, Front | Standard | SPST-NC | On-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Red | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
A22NN-RPM-NYA-G002-NNSWITCH PUSH SPST-NC 10A 120V |
0 |
|
Datasheet |
A22NN | Bulk | Obsolete | Panel Mount, Front | Standard | SPST-NC | On-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Yellow | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
TP43WW03550SWITCH PUSH DPST-NO 0.4VA 20V |
0 |
|
Datasheet |
TP | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | DPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Overtravel | - | -30°C ~ 85°C |
|
|
CH1NBBR12SSWITCH PB SPDT 1A 125VAC |
0 |
|
Datasheet |
CH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Black | LED, Red | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
CH1NBBYNSSWITCH PB SPDT 1A 125VAC |
0 |
|
Datasheet |
CH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Black | LED, Yellow | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
CH1NESBNSSWITCH PB SPDT 1A 125VAC |
0 |
|
Datasheet |
CH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button | - | Silver | LED, Blue | - | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 70°C |
