Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HB15SKW01-GSWITCH PUSH SPDT 0.1A 30V |
0 |
|
Datasheet |
HB | Tray | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 100mA (AC/DC) | 30 V | 30 V | Square, Button | No Marking | Blue | - | - | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 70°C |
|
|
HB16SKW01-CSWITCH PUSH SPDT 0.1A 30V |
0 |
|
Datasheet |
HB | Box | Active | Panel Mount, Front | Standard | SPDT | On-On | 100mA (AC/DC) | 30 V | 30 V | Square, Button | No Marking | Red | - | - | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 70°C |
|
|
MBN12SS4W01-BABUSHING MOUNT MINIATURE PUSHBUTT |
0 |
|
- |
MB2000 | Bulk | Active | Panel Mount | Standard | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Black | - | - | PC Pin | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|

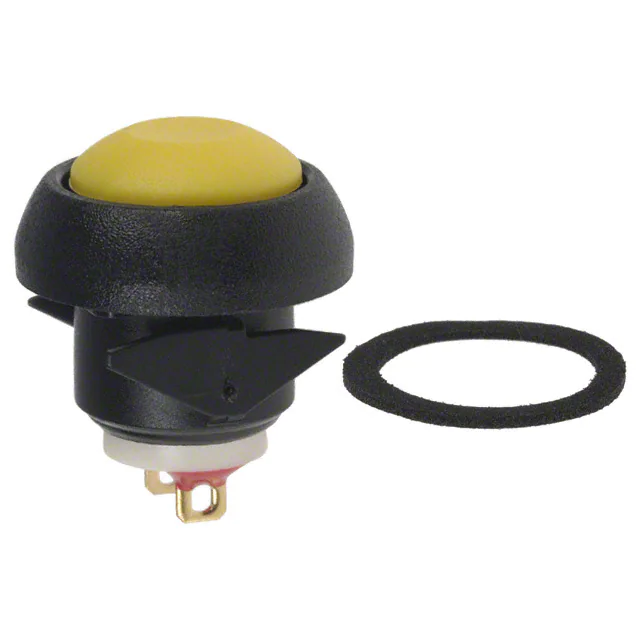

IBR3SAD500SWITCH PUSH SPST-NO 0.4A 32V |
0 |
|
Datasheet |
IB | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 400mA (AC), 100mA (DC) | 32 V | 50 V | Round, Button | No Marking | Yellow | - | - | Solder Lug | IP54 - Dust Protected, Water Resistant | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
|
8636ADBPUSHBUTTON SWITCH 8000 |
0 |
|
- |
8000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Plunger for Cap | - | Silver | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -40°C ~ 85°C |
|
|
AH1NASXSWITCH PB DPST-NO/NC 1A 125V |
0 |
|
Datasheet |
AH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST-NO + SPST-NC | On-Mom, Off-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
P16EES21SWITCH PB SPDT 8A 125V |
0 |
|
Datasheet |
P16 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 8A (AC), 6A (DC) | 125 V | 24 V | Square, Button (Not Included) | - | - | - | - | Solder, Quick Connect - 0.079" (2.0mm) | - | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
SV8F23SS-3G1SWITCH PB SPST-NO 2A 36V |
0 |
|
Datasheet |
SV8 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Flush | - | Silver | LED, Green/Red | 2.0, 3.1 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 25.20mm Dia | -20°C ~ 70°C |
|
|
ULV7F2BSS316SWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
ULV7 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, Red | 110 VAC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 55°C |
|
|
CH1LENWNSSWITCH PB SPDT 1A 125VAC |
0 |
|
Datasheet |
CH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 1A (AC/DC) | 125 V | 24 V | Round, Button | - | Silver | LED, White | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
CH1LBNB12SSWITCH PB SPDT 1A 125VAC |
0 |
|
Datasheet |
CH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | LED, Blue | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
CH1LENBNSSWITCH PB SPDT 1A 125VAC |
0 |
|
Datasheet |
CH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 1A (AC/DC) | 125 V | 24 V | Round, Button | - | Silver | LED, Blue | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
CH1LARSSWITCH PB SPDT 1A 125VAC |
0 |
|
Datasheet |
CH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-On | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
CH1LAGSSWITCH PB SPDT 1A 125VAC |
0 |
|
Datasheet |
CH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-On | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Green | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
CH1LENONSSWITCH PB SPDT 1A 125VAC |
0 |
|
Datasheet |
CH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 1A (AC/DC) | 125 V | 24 V | Round, Button | - | Silver | LED, Orange | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
CH1LBNR24SSWITCH PB SPDT 1A 125VAC |
0 |
|
Datasheet |
CH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | LED, Red | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
CH1LBNR12SSWITCH PB SPDT 1A 125VAC |
0 |
|
Datasheet |
CH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | LED, Red | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
CH1LBNGNSSWITCH PB SPDT 1A 125VAC |
0 |
|
Datasheet |
CH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | LED, Green | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
CH1LENRNSSWITCH PB SPDT 1A 125VAC |
0 |
|
Datasheet |
CH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 1A (AC/DC) | 125 V | 24 V | Round, Button | - | Silver | LED, Red | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
CH1LBNB24SSWITCH PB SPDT 1A 125VAC |
0 |
|
Datasheet |
CH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | LED, Blue | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
