Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

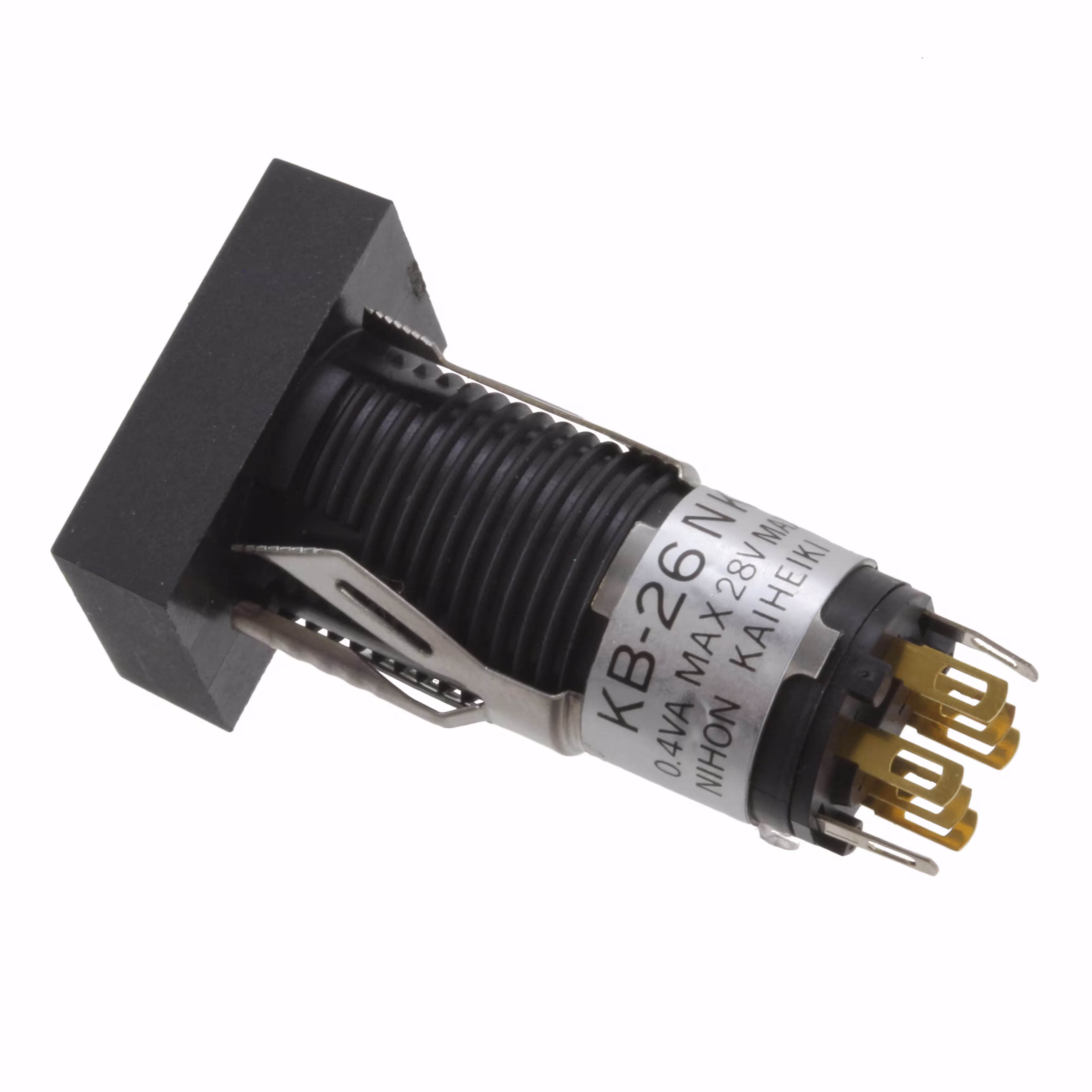

KB26NKG01SWITCH PUSHBUTTON DPDT 0.4VA 28V |
10 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Snap-In | Standard | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|
8261J80ZGE2SWITCH PUSHBUTTON DPDT 6A 120V |
0 |
|
Datasheet |
8060 | Tray | Obsolete | Panel Mount, Snap-In | Standard | DPDT | On-On | 6A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 65°C |
|

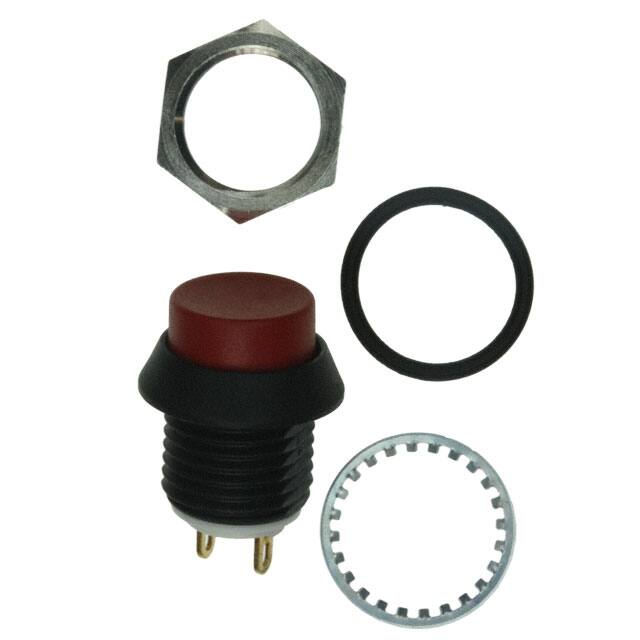

AP4C300TZBESWITCH PUSH SPST-NO 0.125A 125V |
0 |
|
Datasheet |
AP | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 105°C |
|
9433YCDBPUSHBUTTON SWITCH 9100 METAL |
0 |
|
- |
9000 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Plunger | - | - | - | - | PC Pin | - | - | Circular - 6.50mm Dia | -30°C ~ 65°C |
|
|
EB2011-B-J24ACFSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
EB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC) | 125 V | - | Square, Button | No Marking | White | LED, Green/Red | 1.9, 2.1 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.40mm x 15.00mm | -10°C ~ 70°C |
|
|
EB2011-A-J24ACFLIGHT TOUCH MINIATURE PUSHBUTTON |
0 |
|
Datasheet |
EB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC) | 125 V | - | Square, Button | - | Black | LED, Green/Red | 2.0, 2.1 VDC | Solder Lug | - | - | Rectangular - 18.40mm x 15.00mm | -10°C ~ 70°C |
|
|
8632CDBPUSHBUTTON SWITCH 8000 |
0 |
|
Datasheet |
8000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Plunger for Cap | - | Silver | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -40°C ~ 85°C |
|
|
AHU1NKSBNSWITCH PB SPDT 3A 125V |
0 |
|
Datasheet |
AHU | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 19.00mm Dia | -20°C ~ 65°C |
|
|
U811J83ZGE22Linear IC's |
0 |
|
Datasheet |
8020 | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Square, Button, Flush | - | Black | - | - | Solder Lug | - | - | Rectangular - 15.24mm x 12.70mm | -30°C ~ 65°C |
|
8532J81ZQE22SWITCH PUSH SPST-NO 1A 120V |
0 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 65°C |
|
|
D16OAR11AREDSwitches |
0 |
|
Datasheet |
D16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 8A (AC), 6A (DC) | 125 V | 24 V | Round, Button | - | Red | Incandescent, Red | 6 VAC/DC | Solder Lug | - | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
SV4FW3SS-6H1Switches |
0 |
|
Datasheet |
SV4 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Flush | - | Silver | LED, Blue/Red | 2, 3.1 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -20°C ~ 70°C |
|
|
CH1NBSRGNSSWITCH PB SPDT 1A 125V |
0 |
|
Datasheet |
CH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red | - | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
CH1NGBRGNSSWITCH PB SPDT 1A 125V |
0 |
|
Datasheet |
CH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Black | LED, Green/Red | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
PV6F240SS-3G1-M15SWITCH PB SPST-NO 2A 48V |
0 |
|
Datasheet |
PV6, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | - | Silver | LED, Green/Red | 1.8, 2.8 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
PVT4FS4SS301SWITCH PB SPST-NO 50MA 24V |
0 |
|
Datasheet |
PVT4 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | - | Silver | LED, White | 2.8 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -25°C ~ 55°C |
|
|
D16OAR11FGRNGRNSWITCH PUSHBUTTON SPDT 8A 125V |
0 |
|
Datasheet |
D16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 8A (AC), 6A (DC) | 125 V | 24 V | Round, Button | No Marking | Green | Neon, Green | 110 VAC | Solder Lug | - | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
D16OAR11GREDREDSWITCH PUSHBUTTON SPDT 8A 125V |
0 |
|
Datasheet |
D16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 8A (AC), 6A (DC) | 125 V | 24 V | Round, Button | No Marking | Red | Neon, Red | 220 VAC | Solder Lug | - | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
ULV4F2311505SWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
ULV4 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 125 V | - | Round, Button, Flush | - | Black | LED, White | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
|
ULV4F2GSS314SWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
ULV4 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-On | 3A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, Red | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
