Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
30-601 BLKSWITCH PUSH SPST-NO 0.15A 5V Grayhill Inc. |
247 |
|
Datasheet |
30 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 150mA (DC) | - | 5 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | - | Circular - 6.75mm Dia | -40°C ~ 85°C |
|
30-3ULSWITCH PUSH SPST-NO 5A 120V Grayhill Inc. |
671 |
|
Datasheet |
30 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 5A (AC) | 120 V | - | Plunger for Cap | No Marking | Black | - | - | Solder Lug | - | - | Circular - 6.75mm Dia | -40°C ~ 85°C |
|

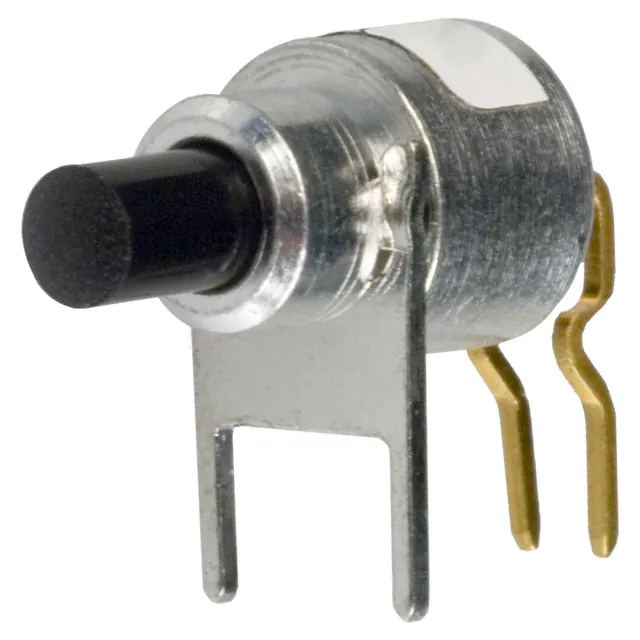

39-501 BLKSWITCH PUSH SPST-NO 0.15A 28V Grayhill Inc. |
1,790 |
|
Datasheet |
39 | Tube | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 150mA (DC) | - | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|

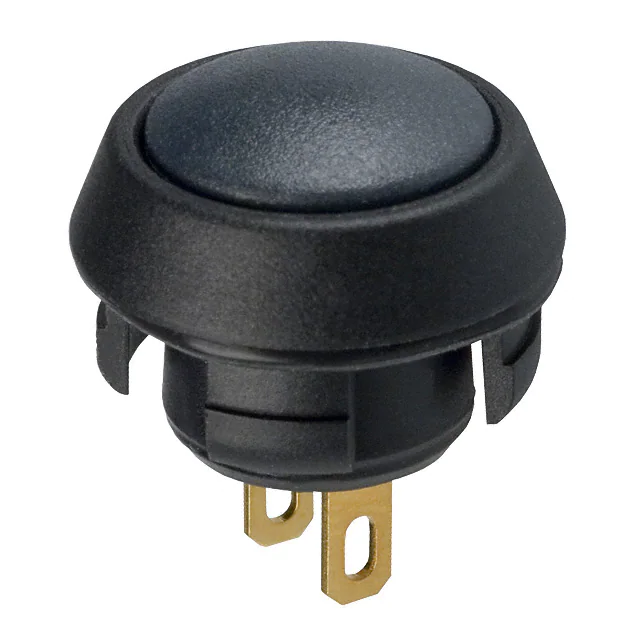

30-100SWITCH PUSH SPST-NO 0.15A 24V Grayhill Inc. |
9,610 |
|
Datasheet |
30 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 150mA (DC) | - | 24 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Sealed - Fully | Circular - 15.20mm Dia | -40°C ~ 80°C |
|
39-101SWITCH PUSH SPST-NO 0.5A 115V Grayhill Inc. |
385 |
|
Datasheet |
39 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 500mA (AC) | 115 V | - | Round, Plunger | No Marking | White | - | - | Solder Lug | - | Overtravel | Circular - 8.61mm Dia | -40°C ~ 85°C |
|

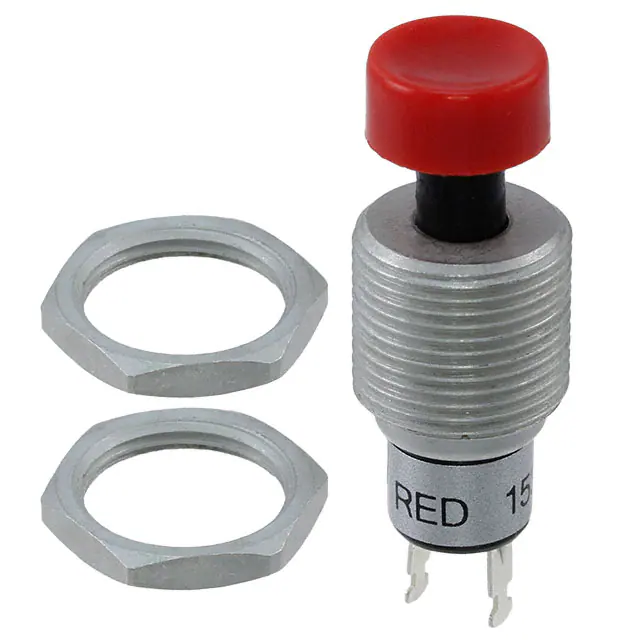

30-17 REDSWITCH PUSH SPST-NO 1A 115V Grayhill Inc. |
880 |
|
Datasheet |
30 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 1A (AC) | 115 V | - | Round, Button | No Marking | Red | - | - | Solder Lug | - | Tactile Feedback | Circular - 12.30mm Dia | -40°C ~ 85°C |
|

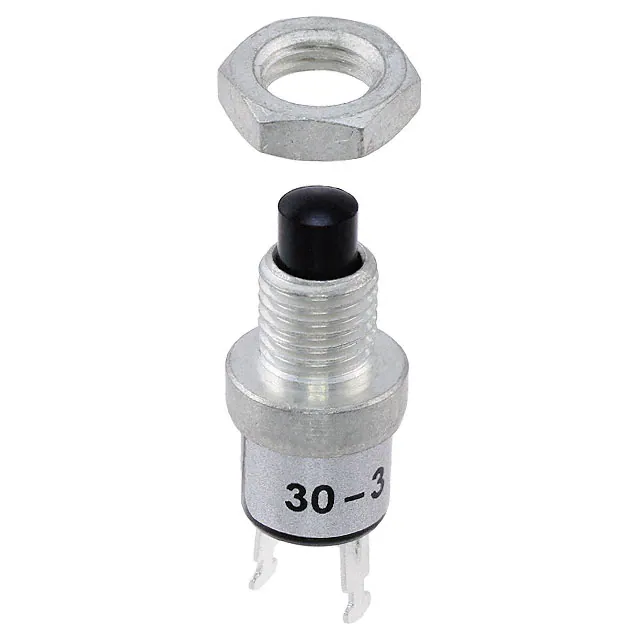

30-3SWITCH PUSH SPST-NO 1A 115V Grayhill Inc. |
1,685 |
|
Datasheet |
30 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 1A (AC) | 115 V | - | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | - | Circular - 6.75mm Dia | -40°C ~ 85°C |
|
39-3SWITCH PUSH SPST-NO 0.5A 115V Grayhill Inc. |
174 |
|
Datasheet |
39 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 500mA (AC) | 115 V | - | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | - | Circular - 4.37mm Dia | -40°C ~ 85°C |
|
39-1SWITCH PUSH SPST-NO 0.5A 115V Grayhill Inc. |
660 |
|
Datasheet |
39 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 500mA (AC) | 115 V | - | Round, Plunger | No Marking | Red | - | - | Solder Lug | - | - | Circular - 4.37mm Dia | -40°C ~ 85°C |
|
30-2ULSWITCH PUSH SPST-NC 5A 120V Grayhill Inc. |
636 |
|
Datasheet |
30 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 5A (AC) | 120 V | - | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | - | Circular - 6.75mm Dia | -40°C ~ 85°C |
