Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
39-138 REDSWITCH PUSH SPST-NO 0.5A 115V |
0 |
|
Datasheet |
39 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 500mA (AC) | 115 V | - | Round, Plunger | No Marking | Red | - | - | PC Pin | - | Sealed - Fully | Circular - 4.37mm Dia | -40°C ~ 85°C |
|
LB25WKW01/UCSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
LB | Bulk | Obsolete | Panel Mount, Front | Standard | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
FHNBBBGBNSWITCH PB SPST 2A 48VDC |
0 |
|
Datasheet |
FH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | - | Black | LED, Blue/Green | 3.3 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
|
FHNBBBRBNSWITCH PB SPST 2A 48VDC |
0 |
|
Datasheet |
FH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | - | Black | LED, Blue/Red | 2.1, 3.3 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
|
FHNBBBRONSWITCH PB SPST 2A 48VDC |
0 |
|
Datasheet |
FH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | - | Black | LED, Orange/Red | 2.0, 2.1 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
|
FHNBBBRYNSWITCH PB SPST 2A 48VDC |
0 |
|
Datasheet |
FH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | - | Black | LED, Red/Yellow | 2.1 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
SET2LBKRDGNAUEESWITCH PUSH SPDT 0.01A 24V |
0 |
|
Datasheet |
DIGITAST | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-On | 10mA (DC) | - | 24 V | Square, Button | No Marking | Black | LED, Green/Red | - | PC Pin | - | - | - | -25°C ~ 85°C |
|

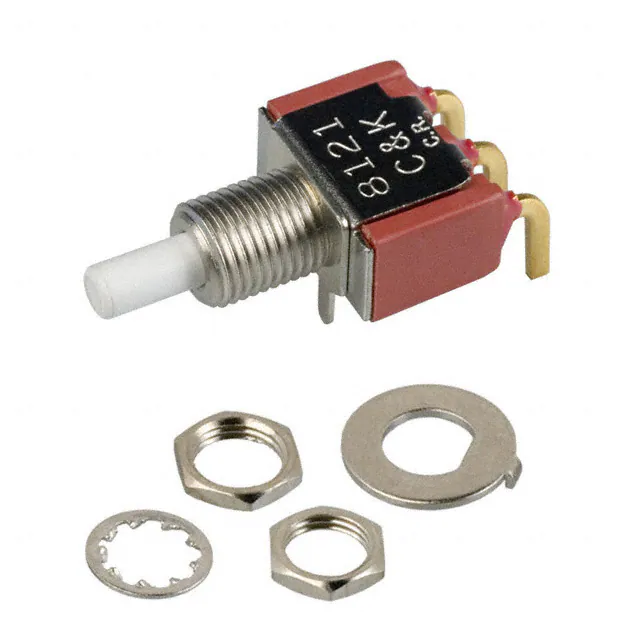

8121SY4ZGESWITCH PUSHBUTTON SPDT 1A 120V |
4 |
|
Datasheet |
8020 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | Solder Lug | - | Tactile Feedback | Circular - 6.35mm Dia | -30°C ~ 75°C |
|
|
BH16NGBBRGSWITCH PB SPST 1A 125V |
0 |
|
Datasheet |
BH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-Mom | 1A (AC), 2A (DC) | 125 V | 36 V | Round, Button, Flush | No Marking | Black | LED, Green/Red | 2.1, 3.3 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
|
SAV7F1311341SWITCH PB SPDT 15A 125V |
0 |
|
Datasheet |
SAV7 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 15A (AC) | 125 V | - | Round, Button, Flush | - | Black | LED, Blue | 3 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -25°C ~ 85°C |
|
|
BH16NBBBYSWITCH PB SPST 1A 125VAC |
0 |
|
Datasheet |
BH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-Mom | 1A (AC), 2A (DC) | 125 V | 36 V | Round, Button, Flush | - | Black | LED, Yellow | 2.1 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
|
BH16NBBBOSWITCH PB SPST 1A 125VAC |
0 |
|
Datasheet |
BH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-Mom | 1A (AC), 2A (DC) | 125 V | 36 V | Round, Button, Flush | - | Black | LED, Orange | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
|
8121SDAGESWITCH PUSHBUTTON SPDT 1A 120V |
0 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Right Angle, Rear | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | Circular - 6.35mm Dia | -30°C ~ 75°C |
|
8121SD2AGESWITCH PUSHBUTTON SPDT 1A 120V |
0 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Right Angle, Rear | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | Circular - 6.35mm Dia | -30°C ~ 75°C |
|
U811SD8AGESWITCH PUSHBUTTON SPDT 1A 120V |
0 |
|
Datasheet |
8020 | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 65°C |
|
|
FHLBSBGNSWITCH PB SPST 2A 48V |
0 |
|
Datasheet |
FH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | On-Off | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Green | 3.3 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
|
PV6F24011-3G1Switches |
0 |
|
Datasheet |
PV6 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | - | Black | LED, Green/Red | 1.8, 2.8 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
SCB25S15A-2ASWITCH PUSHBUTTON DPDT 15A 125V |
0 |
|
Datasheet |
SCB | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-Mom | 15A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 12.50mm Dia | -40°C ~ 85°C |
|
|
PS1-121BSWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
PS | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
PS1-123BSWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
PS | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | Solder Lug | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
