Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8121MDZGESWITCH PUSHBUTTON SPDT 1A 120V |
0 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Plunger for Cap | No Marking | White | - | - | Solder Lug | - | Tactile Feedback | Circular - 6.35mm Dia | -30°C ~ 75°C |
|
MB2011SB1W08-DASWITCH PUSHBUTTON SPDT 6A 125V |
19 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | Wire Wrap | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
EUS-96-1110.02(96-1110.02) PCB W/ BLACK LENS & |
0 |
|
Datasheet |
96 | Bulk | Active | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|
|
3852510KBSPDT PUSHBUTTON SPDT 16A 250V |
0 |
|
Datasheet |
380 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 16A (AC) | 250 V | - | Round, Button | No Marking | Black | - | - | Quick Connect - 0.187" (4.7mm) | IP40 | - | Circular - 12.70mm Dia | - |
|
|
3852510KBLSPDT PUSHBUTTON SPDT 16A 250V |
0 |
|
Datasheet |
380 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 16A (AC) | 250 V | - | Round, Button | No Marking | Blue | - | - | Quick Connect - 0.187" (4.7mm) | IP40 | - | Circular - 12.70mm Dia | - |
|
|
LB15CGG01-28-GJSWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
LB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Blue | Incandescent, Blue | 28 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
LB15CKG01-28-GJSWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
LB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Blue | Incandescent, Blue | 28 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
MB2011VA002SWITCH PUSHBUTTON SPDT 6A 125V |
0 |
|
Datasheet |
MB2000 | Tray | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC) | 125 V | - | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
|
ULV4F2311511Switches |
0 |
|
Datasheet |
ULV4 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 125 V | - | Round, Button, Flush | - | Black | LED, Red | 3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
|
PV3H2B0SS-331SWITCH PB SPDT 2A 48V |
0 |
|
Datasheet |
PV3, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 2A (DC) | - | 48 V | Round, Button | - | Silver | LED, Green | 2.8 VDC | Solder Lug | IP40 | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
P16OAR11SWITCH PB SPDT 8A 125V |
0 |
|
Datasheet |
P16 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 8A (AC), 6A (DC) | 125 V | 24 V | Round, Button (Not Included) | - | - | - | - | Solder, Quick Connect - 0.079" (2.0mm) | - | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|

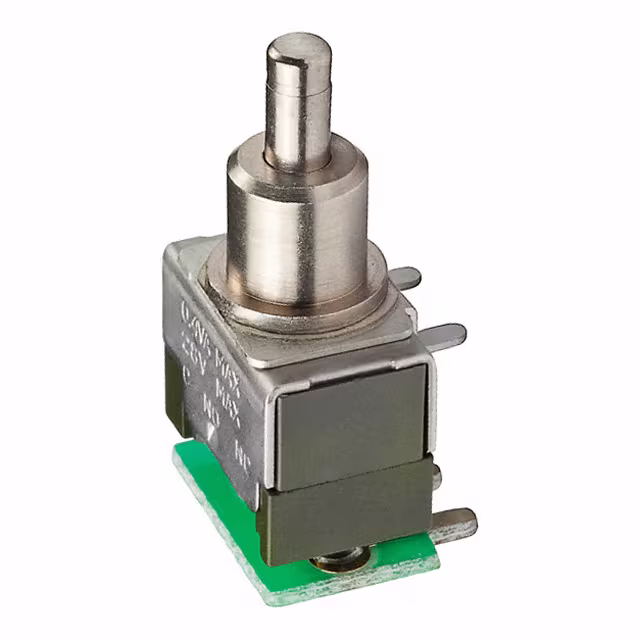

MB2411A2G33SWITCH PUSH SPDT 0.4VA 28V |
10 |
|
- |
MB2400 | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|

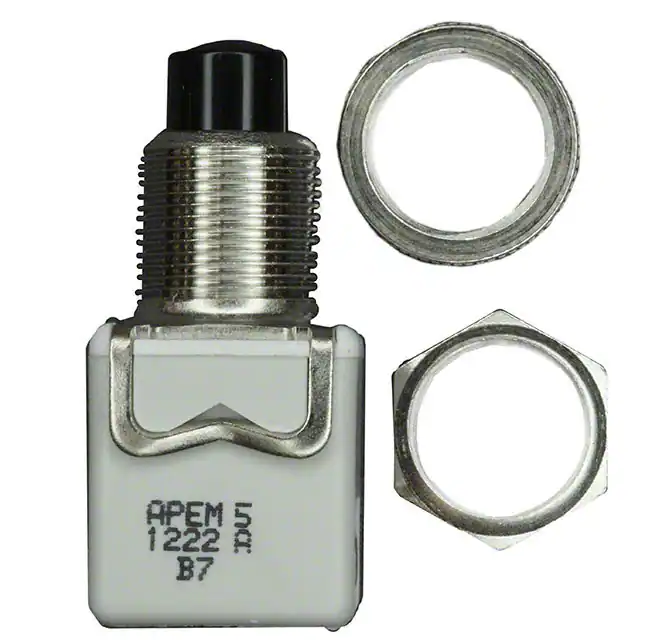

1222A2SWITCH PUSH SPST-NC 8A 125V |
0 |
|
Datasheet |
1200 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 8A (AC), 4A (DC) | 125 V | 24 V | Round, Plunger | No Marking | Black | - | - | Screw Terminal | - | - | Circular - 12.20mm Dia | -20°C ~ 55°C |
|
|
DHU281LASXZBSWITCH PB SPDT 16A 125V |
0 |
|
Datasheet |
DHU | Tray | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-On | 16A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | - | - | Quick Connect - 0.110"/0.250" | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 28.00mm Dia | -40°C ~ 85°C |
|
|
TPA21CCGRA0SWITCH PUSH 2XSPST 0.4VA 20V |
0 |
|
Datasheet |
TP | Bulk | Active | Through Hole, Right Angle | Standard | SPST x 2 | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
|
AP2N002SZBESWITCH PUSH SPST-NO 0.125A 125V |
0 |
|
Datasheet |
AP | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Plunger for Cap | No Marking | - | LED, Green/Red | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 85°C |
|
SCB15S15B-1ASWITCH PUSHBUTTON SPDT 15A 125V |
7 |
|
Datasheet |
SCB | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 15A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 12.50mm Dia | -40°C ~ 85°C |
|
|
GHNDYBXSWITCH PB SPDT 2A 48VDC |
0 |
|
Datasheet |
GH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST | On-Mom | 2A (DC) | - | 48 V | Round, Button | - | Yellow | - | - | Solder Lug | IP40 | - | Circular - 10.00mm Dia | -25°C ~ 55°C |
|
|
PV6H24011G-301SWITCH PB SPST-NO 2A 48V |
0 |
|
Datasheet |
PV6, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button | - | Black | LED, White | 2.8 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
MB2061SD3W01-CASWITCH PUSHBUTTON DPDT 6A 125V |
0 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
