PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

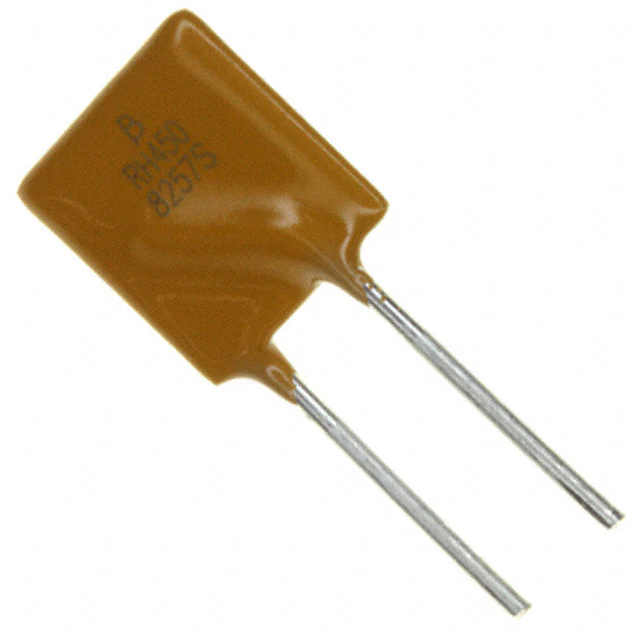

MF-RHT450-0PTC RESET FUSE 16V 4.5A RADIAL |
7,227 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Bulk | Active | Polymeric | 16V | 4.5 A | 7.8 A | 100 A | 3 s | 22 mOhms | 54 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.409" L x 0.118" W (10.40mm x 3.00mm) | 0.614" (15.60mm) | - | 0.114" (2.90mm) |
|
MF-LS180PTC RESET FUSE 24V 1.8A STRAP |
6,005 |
|
Datasheet |
Strap | Multifuse®, MF-LS | Bulk | Active | Polymeric | 24V | 1.8 A | 3.8 A | 100 A | 2.9 s | 40 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.984" L x 0.199" W (25.00mm x 5.05mm) | - | 0.039" (1.00mm) | - |
|
NANOASMDCH010F-2PPTC-MINI-PSW |
4,000 |
|
Datasheet |
1206 (3216 Metric), Concave | PolySwitch®nanoASMDCH | Tape & Reel (TR) | Active | Polymeric | 30V | 100 mA | 300 mA | 20 A | 5 s | 1 Ohms | 7.5 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.59mm) | - | 0.033" (0.85mm) | - |
|
AGRF400-2PTC RESET FUSE 16V 4A RADIAL |
2,359 |
|
Datasheet |
Radial, Disc | PolySwitch®, AGRF | Tape & Reel (TR) | Active | Polymeric | 16V | 4 A | 7.6 A | 100 A | 2 s | 18.6 mOhms | 61 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.555" (14.10mm) | - | 0.199" (5.05mm) |
|
0ZRR0300FF2APTC RESET FUSE 60V 3A RADIAL |
2,159 |
|
Datasheet |
Radial, Disc | 0ZRR | Tape & Reel (TR) | Active | Polymeric | 60V | 3 A | 6 A | 40 A | 19.8 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.980" Dia x 0.122" T (24.90mm x 3.10mm) | 1.181" (30.00mm) | - | 0.402" (10.20mm) |
|
MF-R075-APPTC RESET FUSE 60V 750MA RADIAL |
11,877 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Cut Tape (CT) | Active | Polymeric | 60V | 750 mA | 1.5 A | 40 A | 6.3 s | 180 mOhms | 600 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.409" Dia x 0.122" T (10.40mm x 3.10mm) | 0.630" (16.00mm) | - | 0.201" (5.10mm) |
|
MF-SMDF030-2PTC RESET FUSE 60V 300MA 2018 |
5,669 |
|
Datasheet |
2018 (5045 Metric), Concave | Multifuse®, MF-SMDF | Tape & Reel (TR) | Active | Polymeric | 60V | 300 mA | 800 mA | 20 A | 1.5 s | 450 mOhms | 2.2 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.200" L x 0.180" W (5.08mm x 4.58mm) | - | 0.043" (1.09mm) | - |
|

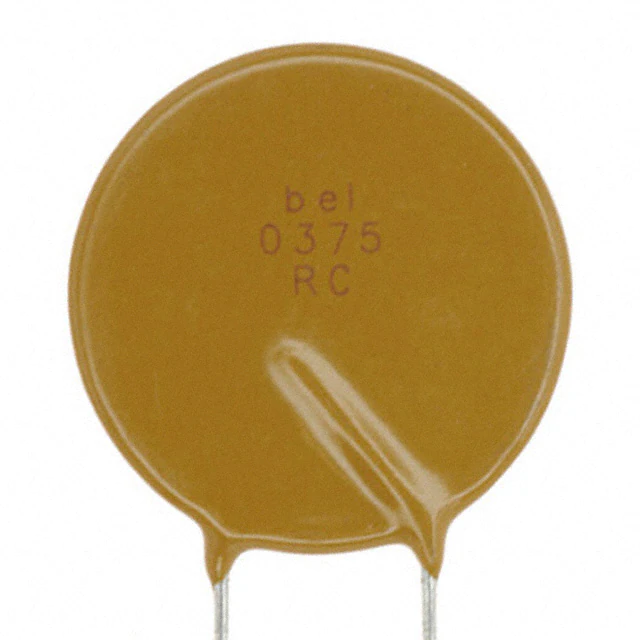

0ZRC0375FF1APTC RESET FUSE 90V 3.75A RADIAL |
4,853 |
|
Datasheet |
Radial, Disc | 0ZRC | Box | Active | Polymeric | 90V | 3.75 A | 7.5 A | 40 A | 24 s | 30 mOhms | 80 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 1.122" L x 0.122" W (28.50mm x 3.10mm) | 1.319" (33.50mm) | - | 0.402" (10.20mm) |
|
MF-USMF150-2PTC RESET FUSE 6V 1.5A 1210 |
4,362 |
|
Datasheet |
1210 (3225 Metric), Concave | Multifuse®, MF-USMF | Tape & Reel (TR) | Active | Polymeric | 6V | 1.5 A | 3 A | 40 A | 5 s | 30 mOhms | 110 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.033" (0.85mm) | - |
|
MF-RX050/72-0PTC RESET FUSE 72V 500MA RADIAL |
2,298 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX/72 | Bulk | Active | Polymeric | 72V | 500 mA | 1 A | 40 A | 4 s | 410 mOhms | 1.17 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.311" Dia x 0.122" T (7.90mm x 3.10mm) | 0.539" (13.70mm) | - | 0.201" (5.10mm) |
|
RHEF400PTC RESET FUSE 16V 4A RADIAL |
2,195 |
|
Datasheet |
Radial, Disc | PolySwitch®, RHEF | Bag | Active | Polymeric | 16V | 4 A | 7.5 A | 100 A | 5 s | 24 mOhms | 60 mOhms | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.394" L x 0.118" W (10.00mm x 3.00mm) | 0.591" (15.00mm) | - | 0.199" (5.05mm) |
|
MF-R050-0-17PTC RESETTABLE 0.5A 60V RADIAL L |
2,090 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Bulk | Active | Polymeric | 60V | 500 mA | 1 A | 40 A | 4 s | 410 mOhms | 1.17 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.311" Dia x 0.122" T (7.90mm x 3.10mm) | 0.539" (13.70mm) | - | 0.201" (5.10mm) |
|

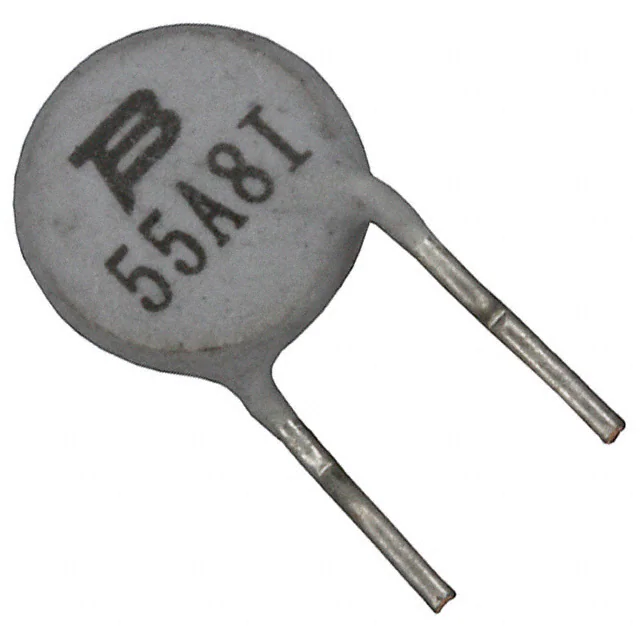

CMF-RL55A-0PTC RESET FUSE 220V 50MA RADIAL |
1,798 |
|
Datasheet |
Radial, Disc | CMF-RL | Bulk | Active | Ceramic | 220V (600V Int) | 50 mA | 100 mA | 3 A | 100 ms | - | - | 55 Ohms | -40°C ~ 125°C | - | - | - | Through Hole | 0.295" L x 0.220" W (7.50mm x 5.60mm) | 0.512" (13.00mm) | - | 0.197" (5.00mm) |
|
MF-RG700-2PTC RESET FUSE 16V 7A RADIAL |
1,633 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RG | Tape & Reel (TR) | Active | Polymeric | 16V | 7 A | 11.9 A | 100 A | 8 s | 8 mOhms | 21 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.441" Dia x 0.118" T (11.20mm x 3.00mm) | 0.740" (18.80mm) | - | 0.201" (5.10mm) |
|
|
MF-RX040/72-0PTC RESET FUSE 72V 400MA RADIAL |
1,601 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX/72 | Bulk | Active | Polymeric | 72V | 400 mA | 800 mA | 40 A | 3.9 s | 520 mOhms | 1.29 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.539" (13.70mm) | - | 0.201" (5.10mm) |
|
RGEF700K-2PTC RESET FUSE 16V 7A RADIAL |
4,783 |
|
Datasheet |
Radial, Disc | PolySwitch®, RGEF | Tape & Reel (TR) | Active | Polymeric | 16V | 7 A | 11.9 A | 100 A | 3.5 s | 7.7 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.421" L x 0.098" W (10.70mm x 2.50mm) | 0.874" (22.20mm) | - | 0.199" (5.05mm) |
|
SMD2920B500TFPTC RESET FUSE 12V 5A 2920 |
2,740 |
|
Datasheet |
2920 (7351 Metric), Concave | SMD2920 | Tape & Reel (TR) | Active | Polymeric | 12V | 5 A | 10 A | 40 A | 5 s | 5 mOhms | 31 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.063" (1.60mm) | - |
|
0ZRE0040FF1APTC RESET FUSE 240V 400MA RADIAL |
2,560 |
|
Datasheet |
Radial, Disc | 0ZRE | Box | Active | Polymeric | 240V | 400 mA | 900 mA | 7 A | 24 s | 600 mOhms | 1.9 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.453" L x 0.150" W (11.50mm x 3.80mm) | 0.768" (19.50mm) | - | 0.201" (5.10mm) |
.JPG)
|
MF-NSMF125-21206 POLYMER PTC 1.25A/6V |
1,324 |
|
Datasheet |
1206 (3216 Metric), Concave | Multifuse®, MF-NSMF | Tape & Reel (TR) | Active | Polymeric | 6V | 1.25 A | 2.5 A | 100 A | 200 ms | 50 mOhms | 140 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.028" (0.70mm) | - |
|

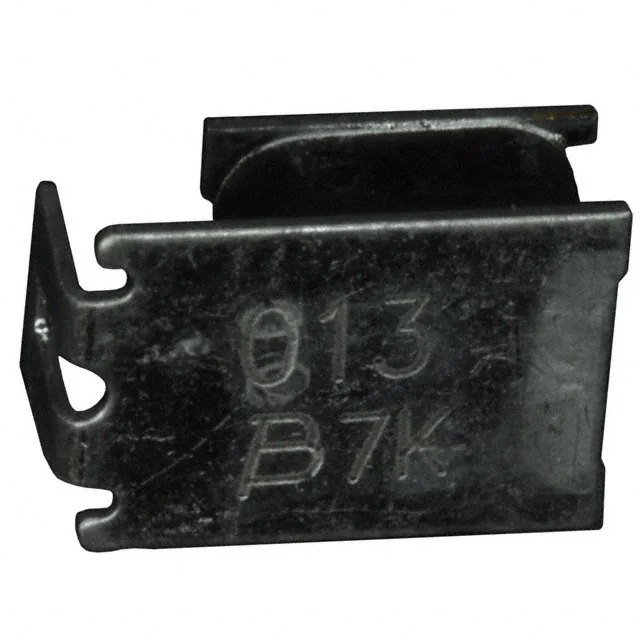

MF-SM013/250-2PTC RESET FUSE 60V 130MA 2SMD |
11,915 |
|
Datasheet |
2-SMD | Multifuse®, MF-SM/250 | Tape & Reel (TR) | Active | Polymeric | 60V (250V Int) | 130 mA | - | 3 A | - | 6.5 Ohms | 20 Ohms | - | -45°C ~ 85°C | - | - | - | Surface Mount | 0.350" L x 0.283" W (8.90mm x 7.20mm) | - | 0.402" (10.20mm) | - |
