PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RXEF160K-2PTC RESET FUSE 72V 1.6A RADIAL |
6,880 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Tape & Reel (TR) | Active | Polymeric | 72V | 1.6 A | 3.2 A | 40 A | 11.4 s | 90 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.642" Dia x 0.118" T (16.30mm x 3.00mm) | 0.819" (20.80mm) | - | 0.199" (5.05mm) |
|
PTSLR12106V750PTC RESET FUSE 7.5A 6V 1210 |
3,441 |
|
Datasheet |
1210 (3225 Metric), Concave | PTSLR1210 | Tape & Reel (TR) | Active | - | 6V | 7.5 A | 15 A | 50 A | 5 s | 1 mOhms | 7 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.135" L x 0.110" W (3.43mm x 2.80mm) | - | 0.039" (1.00mm) | - |
|
|
PTSLR12106V700PTC RESET FUSE 7A 6V 1210 |
41,403 |
|
Datasheet |
1210 (3225 Metric), Concave | PTSLR1210 | Tape & Reel (TR) | Active | - | 6V | 7 A | 14 A | 50 A | 5 s | 1 mOhms | 8 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.135" L x 0.110" W (3.43mm x 2.80mm) | - | 0.039" (1.00mm) | - |
|
MF-RM008/240-2PTC RESET FUSE 240V 80MA RADIAL |
13,467 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RM | Tape & Reel (TR) | Active | Polymeric | 240V (265V Int) | 80 mA | 190 mA | 1.2 A | 10 s | 7.4 Ohms | 26 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.327" Dia x 0.150" T (8.30mm x 3.80mm) | 0.508" (12.90mm) | - | 0.114" (2.90mm) |
|
MF-S420PTC RESET FUSE 30V 4.2A STRAP |
5,884 |
|
Datasheet |
Strap | Multifuse®, MF-S | Bulk | Active | Polymeric | 30V | 4.2 A | 7.6 A | 100 A | 6 s | 12 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 1.240" L x 0.522" W (31.50mm x 13.25mm) | - | 0.043" (1.10mm) | - |
|
RHEF200-2PTC RESET FUSE 16V 2A RADIAL |
4,960 |
|
Datasheet |
Radial, Disc | PolySwitch®, RHEF | Tape & Reel (TR) | Active | Polymeric | 16V | 2 A | 3.8 A | 100 A | 4.3 s | 45 mOhms | 110 mOhms | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.370" Dia x 0.122" T (9.40mm x 3.10mm) | 0.567" (14.40mm) | - | 0.199" (5.05mm) |
,-Concave.jpg)
|
0ZCN0110FF2CPTC RESET FUSE 15V 1.1A 2016 |
3,898 |
|
Datasheet |
2016 (5041 Metric), Concave | 0ZCN | Tape & Reel (TR) | Active | Polymeric | 15V | 1.1 A | 2.2 A | 100 A | 500 ms | 100 mOhms | 400 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.200" L x 0.160" W (5.08mm x 4.07mm) | - | 0.028" (0.70mm) | - |
|
60R010XPRPTC RESET FUSE 60V 100MA RADIAL |
3,270 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 60R | Cut Tape (CT) | Active | Polymeric | 60V | 100 mA | 200 mA | 40 A | 4 s | 2.5 Ohms | 7.5 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
|
MF-RM008/240-0PTC RESET FUSE 240V 80MA RADIAL |
2,109 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RM | Bulk | Active | Polymeric | 240V (265V Int) | 80 mA | 190 mA | 1.2 A | 10 s | 7.4 Ohms | 26 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.327" Dia x 0.150" T (8.30mm x 3.80mm) | 0.508" (12.90mm) | - | 0.114" (2.90mm) |
|
MF-R090-0-9PTC RESET FUSE 30V 900MA RADIAL |
1,472 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Bulk | Active | Polymeric | 30V | 900 mA | 1.8 A | 40 A | 5.9 s | 70 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.480" (12.20mm) | - | 0.201" (5.10mm) |
|
MF-RX025/72-0PTC RESET FUSE 72V 250MA RADIAL |
1,326 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX/72 | Bulk | Active | Polymeric | 72V | 250 mA | 500 mA | 40 A | 2.5 s | 1 Ohms | 3 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
MF-RM016/240-2PTC RESET FUSE 240V 160MA RADIAL |
7,804 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RM | Tape & Reel (TR) | Active | Polymeric | 240V (265V Int) | 160 mA | 370 mA | 2 A | 15 s | 2.5 Ohms | 7.8 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.390" Dia x 0.150" T (9.90mm x 3.80mm) | 0.543" (13.80mm) | - | 0.201" (5.10mm) |
, Concave.jpg)
|
FEMTOSMDC012F-2PTC RESET FUSE 9V 120MA 0603 |
4,465 |
|
Datasheet |
0603 (1608 Metric), Concave | PolySwitch®, femtoSMDC | Tape & Reel (TR) | Active | Polymeric | 9V | 120 mA | 300 mA | 40 A | 100 ms | 1.1 Ohms | 5.8 Ohms | - | - | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.030" (0.75mm) | - |
|
SMDC075F-2PTC RESET FUSE 33V 750MA 2920 |
4,384 |
|
Datasheet |
2920 (7351 Metric), Concave | SMDC | Tape & Reel (TR) | Active | Polymeric | 33V | 750 mA | 1.5 A | 40 A | 300 ms | 100 mOhms | 610 mOhms | - | - | - | - | - | Surface Mount | 0.295" L x 0.201" W (7.50mm x 5.10mm) | - | 0.035" (0.90mm) | - |
|
MF-RM033/240-2PTC RESET FUSE 240V 330MA RADIAL |
4,373 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RM | Tape & Reel (TR) | Active | Polymeric | 240V (265V Int) | 330 mA | 740 mA | 4.5 A | 21 s | 770 mOhms | 2.6 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.449" L x 0.150" W (11.40mm x 3.80mm) | 0.787" (20.00mm) | - | 0.114" (2.90mm) |
|
PICOSMDC012S-2PTC RESET FUSE 15V 120MA 0805 |
3,197 |
|
Datasheet |
0805 (2012 Metric), Concave | PolySwitch®, picoSMD | Tape & Reel (TR) | Active | Polymeric | 15V | 120 mA | 300 mA | 100 A | 100 ms | 1.5 Ohms | 9 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.055" W (2.10mm x 1.40mm) | - | 0.027" (0.68mm) | - |
|
ASMD075F-2PTC RESET FUSE 30V 600MA 2SMD |
2,120 |
|
Datasheet |
2-SMD | PolySwitch®, ASMD | Tape & Reel (TR) | Active | Polymeric | 30V | 600 mA | 1.48 A | 40 A | 20 s | 290 mOhms | 1 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.125" (3.18mm) | - |
|

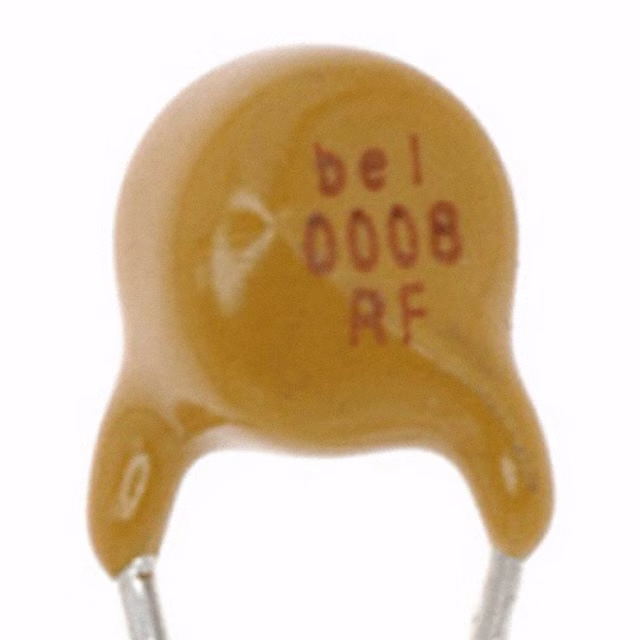

0ZRF0008FF1EPTC RESET FUSE 60V 80MA RADIAL |
1,750 |
|
Datasheet |
Radial, Disc | 0ZRF | Box | Active | Polymeric | 60V | 80 mA | 240 mA | 3 A | 4 s | 14 Ohms | 33 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.288" L x 0.181" W (5.80mm x 4.60mm) | 0.378" (9.60mm) | - | 0.197" (5.00mm) |
|
MF-RHT400-2PTC RESET FUSE 16V 4A RADIAL |
13,400 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Tape & Reel (TR) | Active | Polymeric | 16V | 4 A | 7.5 A | 100 A | 5 s | 24 mOhms | 60 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.394" L x 0.118" W (10.00mm x 3.00mm) | 0.591" (15.00mm) | - | 0.201" (5.10mm) |
|

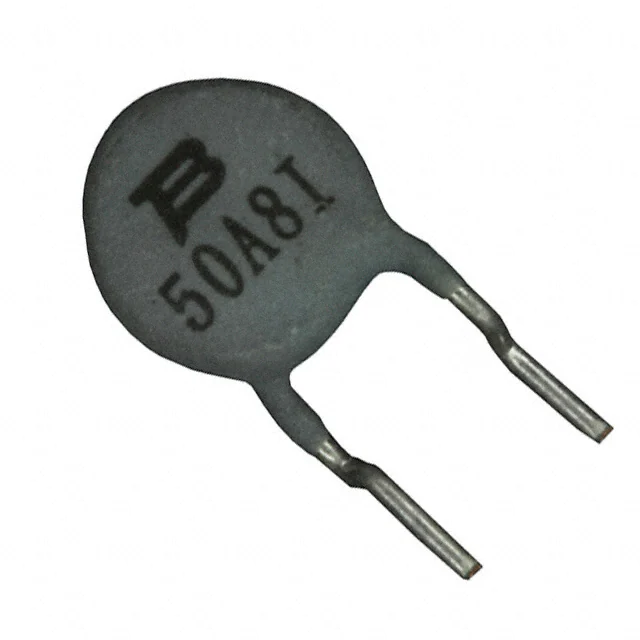

CMF-RL50A-0PTC RESET FUSE 220V 50MA RADIAL |
8,400 |
|
Datasheet |
Radial, Disc | CMF-RL | Bulk | Active | Ceramic | 220V (600V Int) | 50 mA | 100 mA | 3 A | 100 ms | - | - | 50 Ohms | -40°C ~ 125°C | - | - | - | Through Hole | 0.295" L x 0.220" W (7.50mm x 5.60mm) | 0.512" (13.00mm) | - | 0.197" (5.00mm) |
