| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
,-Concave.jpg)
|
0ZCG0035FF2CPTC RESET FUSE 16V 350MA 1812 |
3,391 |
|
Datasheet |
1812 (4532 Metric), Concave | 0ZCG | Tape & Reel (TR) | Active | Polymeric | 16V | 350 mA | 700 mA | 40 A | 100 ms | 320 mOhms | 1.5 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.028" (0.70mm) | - |
|
SMD0603B010TFPTC RESET FUSE 15V 100MA 0603 |
2,404 |
|
Datasheet |
0603 (1608 Metric), Concave | SMD0603 | Tape & Reel (TR) | Active | Polymeric | 15V | 100 mA | 300 mA | 40 A | 1 s | 900 mOhms | 6 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.039" (0.98mm) | - |
|
SMD1812B125TF/16PTC RESET FUSE 16V 1.25A 1812 |
5,553 |
|
Datasheet |
1812 (4532 Metric), Concave | SMD1812 | Tape & Reel (TR) | Active | Polymeric | 16V | 1.25 A | 2.5 A | 100 A | 400 ms | 50 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.059" (1.50mm) | - |
|
PTS06039V020PTC RESET FUSE 200MA 9V 0603 |
3,049 |
|
Datasheet |
0603 (1608 Metric), Concave | PTS0603 | Tape & Reel (TR) | Active | - | 9V | 200 mA | 500 mA | 4 A | 600 ms | 300 mOhms | 4 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.065" L x 0.035" W (1.60mm x 0.90mm) | - | 0.031" (0.80mm) | - |
|
|
PTS06039V016PTC RESET FUSE 160MA 9V 0603 |
2,037 |
|
Datasheet |
0603 (1608 Metric), Concave | PTS0603 | Tape & Reel (TR) | Active | - | 9V | 160 mA | 400 mA | 4 A | 1 s | 400 mOhms | 5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.065" L x 0.031" W (1.65mm x 0.80mm) | - | 0.031" (0.80mm) | - |
|
|
SMD1812B075TF/24PTC RESET FUSE 24V 750MA 1812 |
1,475 |
|
Datasheet |
1812 (4532 Metric), Concave | SMD1812 | Tape & Reel (TR) | Active | Polymeric | 24V | 750 mA | 1.5 A | 100 A | 200 ms | 100 mOhms | 290 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.061" (1.55mm) | - |
|
PTS181216V125PTC RESET FUSE 16V 1.25A 1812 |
2,179 |
|
Datasheet |
1812 (4532 Metric), Concave | PTS1812 | Tape & Reel (TR) | Active | Polymeric | 16V | 1.25 A | 2.5 A | 100 A | 400 ms | 50 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.035" (0.90mm) | - |
|
BK30-185-SIPTC RESET FUSE 30V 1.85A RAD |
17,956 |
|
Datasheet |
Radial, Disc | BK30 | Bulk | Active | Polymeric | 30V | 1.85 A | 3.7 A | 40 A | 8.7 s | 35 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.386" L x 0.122" W (9.80mm x 3.10mm) | 0.732" (18.60mm) | - | 0.201" (5.10mm) |
|
PTS181216V050PTC RESET FUSE 16V 500MA 1812 |
7,952 |
|
Datasheet |
1812 (4532 Metric), Concave | PTS1812 | Tape & Reel (TR) | Active | Polymeric | 16V | 500 mA | 1 A | 100 A | 150 ms | 150 mOhms | 1 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.027" (0.68mm) | - |
|
|
SMD2920B185TFPTC RESET FUSE 33V 1.85A 2920 |
3,548 |
|
Datasheet |
2920 (7351 Metric), Concave | SMD2920 | Tape & Reel (TR) | Active | Polymeric | 33V | 1.85 A | 3.7 A | 40 A | 2.5 s | 30 mOhms | 150 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.049" (1.25mm) | - |
|
PTS08056V075PTC RESET FUSE 6V 750MA 0805 |
3,343 |
|
Datasheet |
0805 (2012 Metric) | PTS0805 | Tape & Reel (TR) | Active | - | 6V | 750 mA | 1.5 A | 100 A | 0.3 s | - | - | - | - | - | - | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.049" (1.25mm) | - |
|

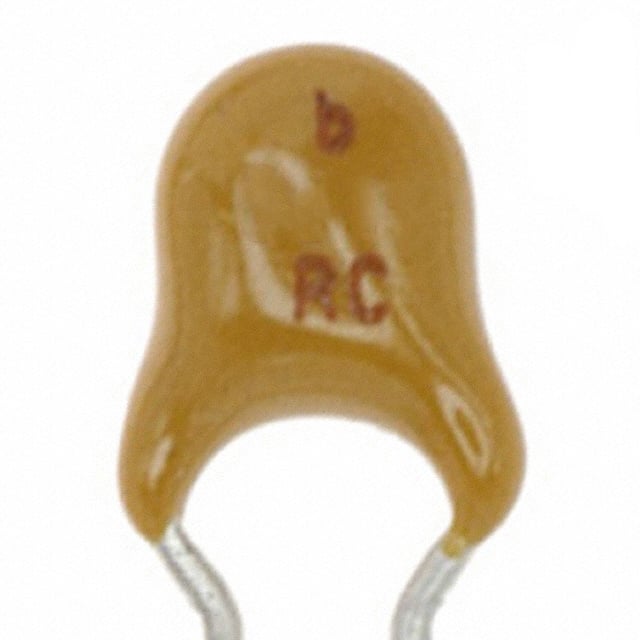

0ZRC0010FF1EPTC RESET FUSE 90V 100MA RADIAL |
15,730 |
|
Datasheet |
Radial, Disc | 0ZRC | Box | Active | Polymeric | 90V | 100 mA | 200 mA | 40 A | 4 s | 2.5 Ohms | 7.5 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" L x 0.122" W (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
0ZCH0110FF2EPTC RESET FUSE 8V 1.1A 1210 |
10,863 |
|
Datasheet |
1210 (3225 Metric), Concave | 0ZCH | Tape & Reel (TR) | Active | Polymeric | 8V | 1.1 A | 2.2 A | 100 A | 300 ms | 60 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.039" (1.00mm) | - |
|
|
0ZCG0160AF2CPTC RESET FUSE 12V 1.6A 1812 |
7,201 |
|
Datasheet |
1812 (4532 Metric), Concave | 0ZCG | Tape & Reel (TR) | Active | Polymeric | 12V | 1.6 A | 3.2 A | 100 A | 1 s | 30 mOhms | 100 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.053" (1.35mm) | - |
|
PFMF.075.2PTC RESET FUSE 13.2V 750MA 1812 |
7,933 |
|
Datasheet |
1812 (4532 Metric), Concave | PFMF | Tape & Reel (TR) | Active | Polymeric | 13.2V | 750 mA | 1.5 A | 100 A | 200 ms | 110 mOhms | 450 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.033" (0.85mm) | - |
|
0ZRC0017FF1EPTC RESET FUSE 90V 170MA RADIAL |
2,892 |
|
Datasheet |
Radial, Disc | 0ZRC | Box | Active | Polymeric | 90V | 170 mA | 340 mA | 40 A | 3 s | 2 Ohms | 8 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" L x 0.122" W (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|

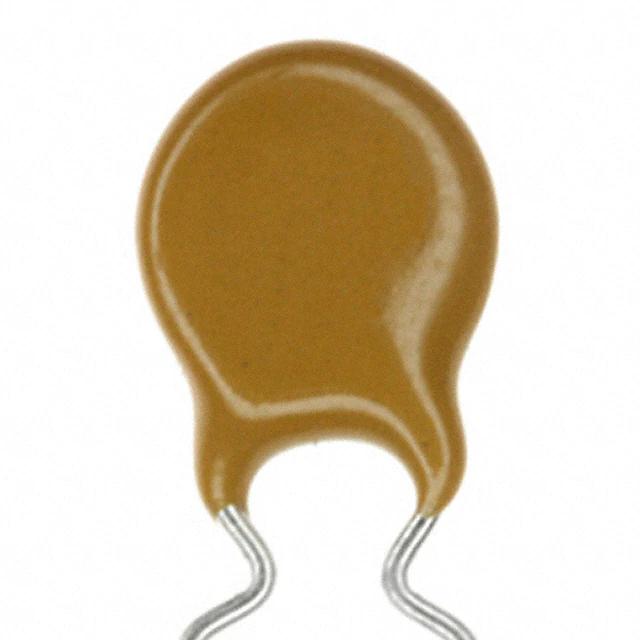

0ZRC0035FF1EPTC RESET FUSE 90V 350MA RADIAL |
1,391 |
|
Datasheet |
Radial, Disc | 0ZRC | Box | Active | Polymeric | 90V | 350 mA | 750 mA | 40 A | 10 s | 700 mOhms | 2.5 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" L x 0.122" W (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
PTS181224V110PTC RESET FUSE 24V 1.1A 1812 |
6,049 |
|
Datasheet |
1812 (4532 Metric), Concave | PTS1812 | Tape & Reel (TR) | Active | Polymeric | 24V | 1.1 A | 2.2 A | 20 A | 500 ms | 60 mOhms | 200 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.039" (1.00mm) | - |
|
PTSA181224V150PTC RESET FUSE 1.5A 24V 1812 |
2,619 |
|
Datasheet |
1812 (4532 Metric), Concave | PTSA1812 | Tape & Reel (TR) | Active | - | 24V | 1.5 A | 3 A | 40 A | 1.5 s | 30 mOhms | 120 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.178" L x 0.126" W (4.53mm x 3.20mm) | - | 0.067" (1.70mm) | - |
|
RXEF050-APPTC RESET FUSE 72V 500MA RADIAL |
17,705 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Cut Tape (CT) | Active | Polymeric | 72V | 500 mA | 1 A | 40 A | 4 s | 500 mOhms | 1.17 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.311" Dia x 0.118" T (7.90mm x 3.00mm) | 0.539" (13.70mm) | - | 0.199" (5.05mm) |
PTC Resettable Fuses Electronic Components
Explore PTC Resettable Fuses electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
