PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YM120D260N150PTC RESET FUSE 265V 234MA RADIAL |
184 |
|
Datasheet |
Radial, Disc | YM | Bulk | Active | Ceramic | 265V | 234 mA | 330 mA | 1.7 A | - | - | - | 15 Ohms | 0°C ~ 55°C | - | - | - | Through Hole | 0.453" Dia x 0.177" T (11.50mm x 4.50mm) | 0.551" (14.00mm) | - | 0.200" (5.08mm) |
|
0603L300/9SLYRPTC RESET FUSE 9V 3A 0603 |
3,222 |
|
Datasheet |
0603 (1608 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 9V | 3 A | 6 A | 50 A | 1 s | 3 mOhms | 30 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.039" (1.00mm) | - |
|
BD280-1130-10/16PTC RESET FUSE 14V 8A BLADE TYPE |
1,067 |
|
Datasheet |
Blade Type | PolySwitch®, BD280 | Bulk | Active | Polymeric | 14V | 8 A | 13 A | 100 A | 8 s | 9.5 Ohms | 18.5 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Holder | 1.193" L x 0.433" W (30.30mm x 11.00mm) | 0.262" (6.65mm) | - | - |
|
TSM600-250F-RA-2PTC RESET FUSE 250V 250MA 4SMD |
397 |
|
Datasheet |
4-SMD | PolySwitch®, TSM | Tape & Reel (TR) | Active | Polymeric | 250V (600V Int) | 250 mA | 860 mA | 3 A | 6 s | 1 Ohms | 5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.681" L x 0.425" W (17.30mm x 10.80mm) | - | 0.461" (11.70mm) | - |
|

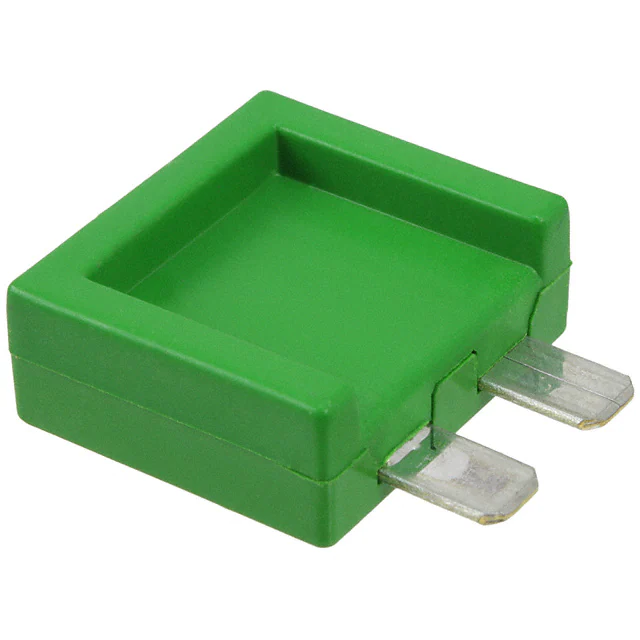

BD540-30PTC RESET FUSE 16V 21A RADIAL |
382 |
|
Datasheet |
Radial, Disc | PolySwitch®, BD540 | Bulk | Active | Polymeric | 16V | 21 A | 40 A | 100 A | 13 s | 1.6 mOhms | 4.4 mOhms | - | - | - | - | - | Through Hole | 0.987" L x 0.384" W (25.08mm x 9.75mm) | 0.880" (22.36mm) | - | 0.392" (9.95mm) |
|
0ZCM0008FA2GPTC RESET FUSE |
4,000 |
|
Datasheet |
0603 (1608 Metric), Concave | 0ZCM | Tape & Reel (TR) | Active | Polymeric | 15V | 80 mA | 200 mA | 40 A | 100 ms | 2.8 Ohms | 14 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.063" L x 0.029" W (1.60mm x 0.73mm) | - | 0.024" (0.60mm) | - |
|
SMD1206B175TFPTC RESET FUSE 6V 1.75A 1206 |
9,343 |
|
Datasheet |
1206 (3216 Metric), Concave | SMD1206 | Tape & Reel (TR) | Active | Polymeric | 6V | 1.75 A | 3.5 A | 100 A | 500 ms | 20 mOhms | 90 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.071" (1.80mm) | - |
|
|
0ZCG0160CF2CPTC RESET FUSE |
2,000 |
|
Datasheet |
1812 (4532 Metric), Concave | 0ZCG | Tape & Reel (TR) | Active | Polymeric | 24V | 1.6 A | 3.2 A | 100 A | 1 s | 30 mOhms | 100 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.047" (1.20mm) | - |
|
|
SMD1210B075TFPTC RESET FUSE 6V 750MA 1210 |
3,561 |
|
Datasheet |
1210 (3225 Metric), Concave | SMD1210 | Tape & Reel (TR) | Active | Polymeric | 6V | 750 mA | 1.5 A | 100 A | 100 ms | 70 mOhms | 400 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.033" (0.85mm) | - |
|
SMD1210B150TFTPTC RESET FUSE 6V 1.5A 1210 |
18,846 |
|
Datasheet |
1210 (3225 Metric), Concave | SMD1210 | Tape & Reel (TR) | Active | Polymeric | 6V | 1.5 A | 3 A | 100 A | 300 ms | 30 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.042" (1.07mm) | - |
|
|
SMD1210B175TFPTC RESET FUSE 6V 1.75A 1210 |
11,269 |
|
Datasheet |
1210 (3225 Metric), Concave | SMD1210 | Tape & Reel (TR) | Active | Polymeric | 6V | 1.75 A | 3.5 A | 100 A | 1 s | 20 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.063" (1.60mm) | - |
|
|
SMD1206B075TF/16PTC RESET FUSE 16V 750MA 1206 |
5,891 |
|
Datasheet |
1206 (3216 Metric), Concave | SMD1206 | Tape & Reel (TR) | Active | Polymeric | 16V | 750 mA | 1.5 A | 100 A | 200 ms | 90 mOhms | 350 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.063" (1.60mm) | - |
|
SMD0805B035TFPTC RESET FUSE 6V 350MA 0805 |
1,967 |
|
Datasheet |
0805 (2012 Metric), Concave | SMD0805 | Tape & Reel (TR) | Active | Polymeric | 6V | 350 mA | 750 mA | 100 A | 100 ms | 250 mOhms | 1.2 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.039" (1.00mm) | - |
|
|
SMD1210B010TFPTC RESET FUSE 30V 100MA 1210 |
2,939 |
|
Datasheet |
1210 (3225 Metric), Concave | SMD1210 | Tape & Reel (TR) | Active | Polymeric | 30V | 100 mA | 300 mA | 10 A | 1.5 s | 800 mOhms | 5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.039" (1.00mm) | - |
|
SMD1812B075TFPTC RESET FUSE 13.2V 750MA 1812 |
4,568 |
|
Datasheet |
1812 (4532 Metric), Concave | SMD1812 | Tape & Reel (TR) | Active | Polymeric | 13.2V | 750 mA | 1.5 A | 100 A | 200 ms | 100 mOhms | 450 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.061" (1.55mm) | - |
|
|
SMD1812B020TFPTC RESET FUSE 30V 200MA 1812 |
3,989 |
|
Datasheet |
1812 (4532 Metric), Concave | SMD1812 | Tape & Reel (TR) | Active | Polymeric | 30V | 200 mA | 400 mA | 100 A | 20 ms | 800 mOhms | 5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.049" (1.25mm) | - |
|
|
SMD1812B020TF-JPTC RESET FUSE 60V 200MA 1812 |
2,930 |
|
Datasheet |
1812 (4532 Metric), Concave | SMD1812 | Tape & Reel (TR) | Active | Polymeric | 60V | 200 mA | 400 mA | 40 A | 2 s | 700 mOhms | 5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.049" (1.25mm) | - |
|
|
SMD1812B014TFPTC RESET FUSE 60V 140MA 1812 |
1,549 |
|
Datasheet |
1812 (4532 Metric), Concave | SMD1812 | Tape & Reel (TR) | Active | Polymeric | 60V | 140 mA | 340 mA | 10 A | 150 ms | 1.5 Ohms | 6 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.077" (1.95mm) | - |
,-Concave.jpg)
|
0ZCG0125FF2CPTC RESET FUSE 6V 1.25A 1812 |
9,961 |
|
Datasheet |
1812 (4532 Metric), Concave | 0ZCG | Tape & Reel (TR) | Active | Polymeric | 6V | 1.25 A | 2.5 A | 100 A | 400 ms | 50 mOhms | 140 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.022" (0.55mm) | - |
.JPG)
|
MF-NSMF016-2PTC RESET FUSE 160MA 1206 |
6,694 |
|
Datasheet |
1206 (3216 Metric), Concave | Multifuse®, MF-NSMF | Tape & Reel (TR) | Active | Polymeric | 30V | 160 mA | 370 mA | 10 A | 300 ms | 700 mOhms | 6 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.033" (0.85mm) | - |
