PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LVRL200PTC RESET FUSE 120V 2A RADIAL |
9,219 |
|
Datasheet |
Radial, Disc | PolySwitch®, LVRL | Bulk | Obsolete | Polymeric | 120V (135V Int) | 2 A | 4.2 A | 20 A | 36 s | 80 mOhms | 210 mOhms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.925" L x 0.161" W (23.50mm x 4.10mm) | 1.252" (31.80mm) | - | 0.400" (10.15mm) |
|
PTR060V0090-TRPTC RESET FUSE 60V 900MA RADIAL |
8,602 |
|
Datasheet |
Radial, Disc | PTR060V | Tape & Reel (TR) | Active | Polymeric | 60V | 900 mA | 1.8 A | 40 A | 7.2 s | 200 mOhms | 470 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.461" Dia x 0.118" T (11.70mm x 3.00mm) | 0.618" (15.70mm) | - | 0.197" (5.00mm) |
|
PTCCL11H361FBETHERMISTOR PTC 5.3 OHM 20% RAD |
5,353 |
|
Datasheet |
Radial, Disc | PTCCL - 145V | Bulk | Obsolete | Ceramic | 145V | 360 mA | 540 mA | 3.5 A | - | - | - | 5.3 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.413" Dia x 0.197" T (10.50mm x 5.00mm) | 0.610" (15.50mm) | - | 0.197" (5.00mm) |
|
MF-RG1000-0-14PTC RESETTABLE 10A 16V RADIAL LE |
6,959 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RG | Bulk | Active | Polymeric | 16V | 10 A | 17 A | 100 A | 6 s | 4 mOhms | 10.2 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 0.854" (21.70mm) | - | 0.201" (5.10mm) |
|
PTGLCSAS1R2K3B51A0PTC RESET FUSE 51V 749MA RADIAL |
8,736 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 51V | 749 mA | 996 mA | 5 A | - | - | - | 1.2 Ohms | -30°C ~ 125°C | - | - | - | Through Hole | 0.453" Dia x 0.138" T (11.50mm x 3.50mm) | 0.650" (16.50mm) | - | 0.197" (5.00mm) |
|
RL3005-25-110-12-PTFPTC RESET FUSE 12V 180MA RADIAL |
4,802 |
|
Datasheet |
Radial, Disc | PTF | Bulk | Obsolete | Ceramic | 12V | 180 mA | 120 mA | - | - | - | - | 25 Ohms | - | - | - | - | Through Hole | 0.350" Dia x 0.150" T (8.90mm x 3.80mm) | 0.350" (8.89mm) | - | 0.250" (6.35mm) |
|
RL3005-10-110-12-PTFPTC RESET FUSE 12V 190MA RADIAL |
3,806 |
|
Datasheet |
Radial, Disc | PTF | Bulk | Obsolete | Ceramic | 12V | 190 mA | 290 mA | - | - | - | - | 10 Ohms | - | - | - | - | Through Hole | 0.350" Dia x 0.150" T (8.90mm x 3.80mm) | 0.350" (8.89mm) | - | 0.250" (6.35mm) |
|
RGEF700-APPTC RESET FUSE 16V 7A RADIAL |
2,622 |
|
Datasheet |
Radial, Disc | PolySwitch®, RGEF | Cut Tape (CT) | Obsolete | Polymeric | 16V | 7 A | 11.9 A | 100 A | 3.5 s | 7.7 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.421" L x 0.098" W (10.70mm x 2.50mm) | 0.776" (19.70mm) | - | 0.199" (5.05mm) |
|
RHEF050-APPTC RESET FUSE 30V 500MA RADIAL |
7,692 |
|
Datasheet |
Radial, Disc | PolySwitch®, RHEF | Cut Tape (CT) | Active | Polymeric | 30V | 500 mA | 920 mA | 40 A | 2.5 s | 480 mOhms | 1.1 Ohms | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.500" (12.70mm) | - | 0.199" (5.05mm) |
|
MF-RHT1300-APPTC RESET FUSE 16V 13A RADIAL |
4,597 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Tape & Box (TB) | Active | Polymeric | 16V | 13 A | 24 A | 100 A | 13 s | 4.1 mOhms | 10 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.925" L x 0.142" W (23.50mm x 3.60mm) | 1.130" (28.70mm) | - | 0.215" (5.45mm) |
|
|
MF-RG1000-AP-14PTC RESETTABLE 10A 16V RADIAL LE |
5,907 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RG | Tape & Box (TB) | Active | Polymeric | 16V | 10 A | 17 A | 100 A | 6 s | 4 mOhms | 10.2 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 0.854" (21.70mm) | - | 0.201" (5.10mm) |
|
|
MF-RG1000-2-14PTC RESETTABLE 10A 16V RADIAL LE |
5,747 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RG | Tape & Reel (TR) | Active | Polymeric | 16V | 10 A | 17 A | 100 A | 6 s | 4 mOhms | 10.2 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 0.854" (21.70mm) | - | 0.201" (5.10mm) |
|
|

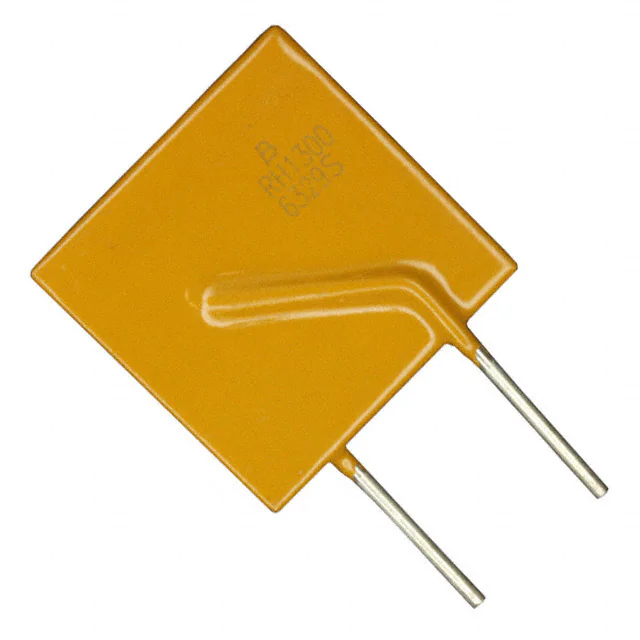

MF-RHT1300-0-14PTC 13.0A 16V RADIAL LEADED HI-T |
9,013 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Bulk | Active | Polymeric | 16V | 13 A | 24 A | 100 A | 13 s | 4.1 mOhms | 10 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.925" L x 0.142" W (23.50mm x 3.60mm) | 1.130" (28.70mm) | - | 0.402" (10.20mm) |
|
SMD200-2POLYSWITCH 2.00A HOLD SMD |
9,823 |
|
- |
2-SMD | PolySwitch®, SMD | Cut Tape (CT) | Obsolete | Polymeric | 15V | 2 A | 4 A | 40 A | 12 s | 50 mOhms | 125 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.343" L x 0.250" W (8.70mm x 6.36mm) | - | 0.118" (3.00mm) | - |
|
|
SMD150-2POLYSWITCH 1.50A HOLD SMD |
4,077 |
|
Datasheet |
2-SMD | PolySwitch®, SMD | Cut Tape (CT) | Obsolete | Polymeric | 15V | 1.5 A | 3 A | 40 A | 5 s | 60 mOhms | 250 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.343" L x 0.250" W (8.70mm x 6.36mm) | - | 0.118" (3.00mm) | - |
|
|
SMD260-2POLYSWITCH 2.6A RESET FUSE SMD |
4,918 |
|
Datasheet |
2920 (7351 Metric) | PolySwitch®, SMD | Cut Tape (CT) | Obsolete | Polymeric | 6V | 2.6 A | 5.2 A | 40 A | 20 s | 25 mOhms | 75 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.118" (3.00mm) | - |
|
|
SMD300-2POLYSWITCH 3.00A RESET FUSE SMD |
2,357 |
|
Datasheet |
2920 (7351 Metric) | PolySwitch®, SMD | Cut Tape (CT) | Obsolete | Polymeric | 6V | 3 A | 6 A | 40 A | 35 s | 15 mOhms | 48 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.118" (3.00mm) | - |
|
MF-MSMF250/16-2PTC RESET FUSE 16V 2.5A 1812 |
3,033 |
|
Datasheet |
1812 (4532 Metric), Concave | Multifuse®, MF-MSMF | Tape & Reel (TR) | Obsolete | Polymeric | 16V | 2.5 A | 5 A | 100 A | 5 s | 15 mOhms | 100 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.033" (0.85mm) | - |
|

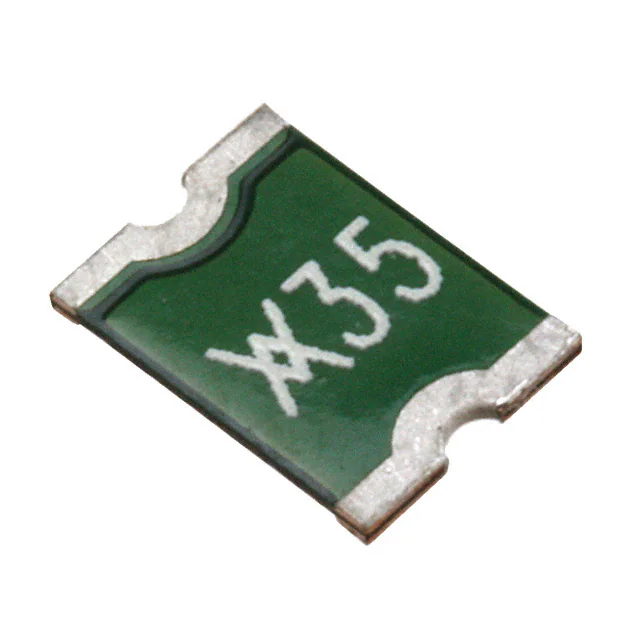

MINISMDC350LR-2PTC RESET FUSE 6V 3.5A 1812 |
6,094 |
|
Datasheet |
1812 (4532 Metric), Concave | PolySwitch® | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 3.5 A | 8 A | 50 A | - | 6 mOhms | 25 mOhms | - | - | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.017" (0.43mm) | - |
.jpg)
|
NANOSMD175LR-2PTC RESET FUSE 6V 1.75A 1206 |
3,371 |
|
Datasheet |
1206 (3216 Metric) | PolySwitch®, LoRho | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 1.75 A | 5 A | 50 A | 1 s | 8 mOhms | - | - | - | - | - | - | Surface Mount | 0.127" L x 0.063" W (3.22mm x 1.60mm) | - | 0.039" (1.00mm) | - |
