PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2920L260/33DR-APTC 33V POLYFUSE SURF MOUNT 2920 |
4,795 |
|
- |
2920 (7351 Metric), Concave | POLY-FUSE®, 2920L | Tape & Reel (TR) | Active | Polymeric | 33V | 2.6 A | 5 A | 40 A | 15 s | 20 mOhms | 75 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.071" (1.80mm) | - |
|
|
PFRA.700PTC RESET FUSE 30V 7A RADIAL |
6,332 |
|
Datasheet |
Radial, Disc | PFRA | Bulk | Active | Polymeric | 30V | 7 A | 14 A | 40 A | 17.5 s | 5 mOhms | 30 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.870" L x 0.118" W (22.10mm x 3.00mm) | 1.173" (29.80mm) | - | 0.402" (10.20mm) |
|
PTCTZ3NR100GTEPTC RESET FUSE 245V 165MA 2SMD |
7,277 |
|
Datasheet |
2-SMD | PTCTZ | Tape & Reel (TR) | Obsolete | Ceramic | 245V | 165 mA | 270 mA | 2 A | 3 s | - | - | 10 Ohms | - | - | - | - | Surface Mount | 0.283" L x 0.394" W (7.20mm x 10.00mm) | - | 0.142" (3.60mm) | - |
|
MF-USMD050-2PTC RESET FUSE 13.2V 500MA 1210 |
7,390 |
|
Datasheet |
1210 (3225 Metric) | Multifuse®, MF-USMD | Tape & Reel (TR) | Obsolete | Polymeric | 13.2V | 500 mA | 1 A | 40 A | 100 ms | 180 mOhms | 900 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.024" (0.62mm) | - |
|
MF-LSMF125X-22920 RESETTABLE SMD PPTC 1.25A/1 |
5,119 |
|
Datasheet |
2920 (7351 Metric), Concave | Multifuse®, MF-LSMF | Tape & Reel (TR) | Active | Polymeric | - | 1.25 A | - | - | - | - | - | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | - | - |
|
MF-RHT1000-0-14PTC 10.0A 16V RADIAL LEADED HI-T |
9,425 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Bulk | Active | Polymeric | 16V | 10 A | 18.5 A | 100 A | 9 s | 6.2 mOhms | 15 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.689" L x 0.118" W (17.50mm x 3.00mm) | 1.051" (26.70mm) | - | 0.402" (10.20mm) |
|
|
1210L035/30WR-APTC 30V POLYFUSE SURF MOUNT 1210 |
5,770 |
|
Datasheet |
1210 (3225 Metric), Concave | POLY-FUSE®, 1210L | Tape & Reel (TR) | Active | Polymeric | 30V | 350 mA | 700 mA | 40 A | 200 ms | 320 mOhms | 1.3 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.049" (1.25mm) | - |
|
PTGL10ARR27M1B51B0PTC RESET FUSE 16V 1.025A RADIAL |
6,574 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 16V | 1.025 A | 1.9 A | 8 A | - | - | - | 270 mOhms | -10°C ~ 60°C | - | - | - | Through Hole | 0.398" Dia x 0.138" T (10.10mm x 3.50mm) | 0.591" (15.00mm) | - | 0.197" (5.00mm) |
|
RXEF160-APPTC RESET FUSE 72V 1.6A RADIAL |
1 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Cut Tape (CT) | Active | Polymeric | 72V | 1.6 A | 3.2 A | 40 A | 11.4 s | 90 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.642" Dia x 0.118" T (16.30mm x 3.00mm) | 0.819" (20.80mm) | - | 0.199" (5.05mm) |
|
PTCCL09H541DTEPTC RESET FUSE 30V 540MA RADIAL |
5,561 |
|
Datasheet |
Radial, Disc | PTCCL - 30V | Tape & Reel (TR) | Active | Ceramic | 30V | 540 mA | 810 mA | 6 A | - | - | - | 1.9 Ohms | -40°C ~ 85°C | - | - | - | Through Hole | 0.335" Dia x 0.157" T (8.50mm x 4.00mm) | 0.532" (13.50mm) | - | 0.197" (5.00mm) |
|

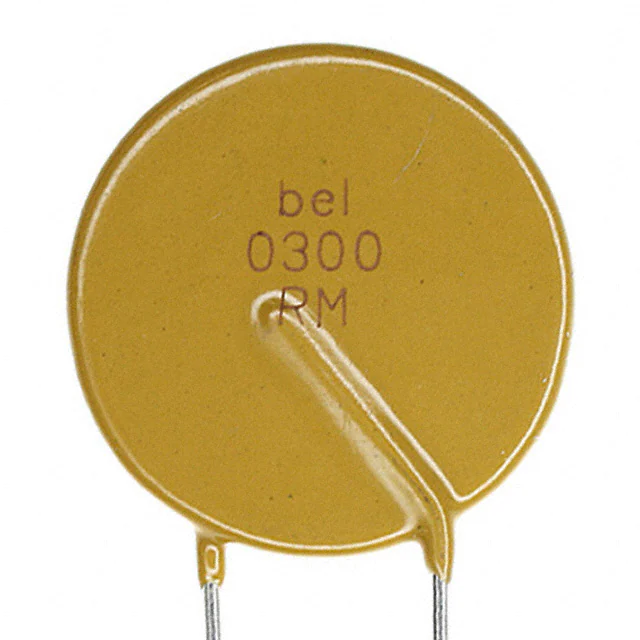

0ZRM0300FF1APTC RESET FUSE 120V 3A RADIAL |
6,083 |
|
Datasheet |
Radial, Disc | 0ZRM | Box | Active | Polymeric | 120V | 3 A | 6 A | 17 A | 19.8 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 1.004" Dia x 0.161" T (25.50mm x 4.10mm) | 1.181" (30.00mm) | - | 0.402" (10.20mm) |
|
PTCTL6MR250STEPTC RESET FUSE 600V 70MA RADIAL |
3,734 |
|
Datasheet |
Radial, Disc | - | Tape & Reel (TR) | Active | Ceramic | 600V | 70 mA | 170 mA | 2 A | 5 s | - | - | 25 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.413" Dia x 0.197" T (10.50mm x 5.00mm) | 0.496" (12.60mm) | - | 0.197" (5.00mm) |
|
MF-RHT1100-APPTC RESET FUSE 16V 11A RADIAL |
6,419 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Bulk | Active | Polymeric | 16V | 11 A | 20 A | 100 A | 11 s | 5.5 mOhms | 13 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.827" L x 0.118" W (21.00mm x 3.00mm) | 1.028" (26.10mm) | - | 0.402" (10.20mm) |
|
|
MF-RHT1000-AP-14PTC 10.0A 16V RADIAL LEADED HI-T |
2,895 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Box (TB) | Active | Polymeric | 16V | 10 A | 18.5 A | 100 A | 9 s | 6.2 mOhms | 15 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.689" L x 0.118" W (17.50mm x 3.00mm) | 1.051" (26.70mm) | - | 0.402" (10.20mm) |
|
|
MF-RHT1000-2-14PTC 10.0A 16V RADIAL LEADED HI-T |
9,219 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Active | Polymeric | 16V | 10 A | 18.5 A | 100 A | 9 s | 6.2 mOhms | 15 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.689" L x 0.118" W (17.50mm x 3.00mm) | 1.051" (26.70mm) | - | 0.402" (10.20mm) |
|
B59850C0130A051PTC RESET FUSE 265V 200MA RADIAL |
3,408 |
|
Datasheet |
Radial, Disc | - | Tape & Reel (TR) | Active | Ceramic | 265V | 200 mA | 320 mA | 1.5 A | - | - | - | 13 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.433" Dia x 0.197" T (11.00mm x 5.00mm) | 0.571" (14.50mm) | - | 0.197" (5.00mm) |
|
|
MF-RHT1100-0-14PTC 11.0A 16V RADIAL LEADED HI-T |
3,385 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Bulk | Active | Polymeric | 16V | 11 A | 20 A | 100 A | 11 s | 5.5 mOhms | 13 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.827" L x 0.118" W (21.00mm x 3.00mm) | 1.028" (26.10mm) | - | 0.402" (10.20mm) |
|
PTR030V0900-TRPTC RESET FUSE 30V 9A RADIAL |
4,701 |
|
Datasheet |
Radial, Disc | PTR030V | Tape & Reel (TR) | Active | Polymeric | 30V | 9 A | 18 A | 100 A | 20 s | 5 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.949" L x 0.118" W (24.10mm x 3.00mm) | 1.169" (29.70mm) | - | 0.394" (10.00mm) |
|
|
PTR030V0900-TR1PTC RESET FUSE 30V 9A RADIAL |
3,350 |
|
Datasheet |
Radial, Disc | PTR030V | Tape & Reel (TR) | Active | Polymeric | 30V | 9 A | 18 A | 100 A | 20 s | 5 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.949" L x 0.118" W (24.10mm x 3.00mm) | 1.346" (34.20mm) | - | 0.394" (10.00mm) |
|
PTGL09AR250H8B52A0PTC RESET FUSE 265V 150MA RADIAL |
8,648 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 265V | 150 mA | 290 mA | 1 A | - | - | - | 25 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.394" Dia x 0.236" T (10.00mm x 6.00mm) | 0.630" (16.00mm) | - | 0.197" (5.00mm) |
PTC Resettable Fuses Electronic Components
Explore PTC Resettable Fuses electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
