PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF-R185-AP-17PTC RESETTABLE 1.85A 30V RADIAL |
9,866 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Box (TB) | Active | Polymeric | 30V | 1.85 A | 3.7 A | 40 A | 8.7 s | 40 mOhms | 110 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.472" Dia x 0.118" T (12.00mm x 3.00mm) | 0.724" (18.40mm) | - | 0.201" (5.10mm) |
|
|
16R1500SGPRPTC RESET FUSE 16V 15A RADIAL |
8,489 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 16R | Tape & Box (TB) | Obsolete | Polymeric | 16V | 15 A | 24 A | 100 A | - | - | - | - | 85°C | - | - | - | Through Hole | 0.138" L x 0.138" W (3.50mm x 3.50mm) | 1.098" (27.90mm) | - | 0.402" (10.20mm) |
|
PTGL4SAS100K2N51B0PTC RESET FUSE 30V 154MA RADIAL |
2,848 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 30V | 154 mA | 205 mA | 1.5 A | - | - | - | 10 Ohms | -30°C ~ 125°C | - | - | - | Through Hole | 0.177" Dia x 0.138" T (4.50mm x 3.50mm) | 0.374" (9.50mm) | - | 0.197" (5.00mm) |
|
|
MF-RX075/72-2-17PTC RESETTABLE 0.75A 72V RADIAL |
2,773 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX/72 | Tape & Reel (TR) | Active | Polymeric | 72V | 750 mA | 1.5 A | 40 A | 6.3 s | 180 mOhms | 600 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.409" Dia x 0.122" T (10.40mm x 3.10mm) | 0.630" (16.00mm) | - | 0.201" (5.10mm) |
|
PTGL04AS100K2N51A0PTC RESET FUSE 30V 154MA RADIAL |
3,323 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Tape & Box (TB) | Obsolete | Ceramic | 30V | 154 mA | 205 mA | 1.5 A | - | - | - | 10 Ohms | -30°C ~ 85°C | - | - | - | Through Hole | 0.177" Dia x 0.138" T (4.50mm x 3.50mm) | 0.551" (14.00mm) | - | 0.197" (5.00mm) |
|
PTR060V0110-TRPTC RESET FUSE 60V 1.1A RADIAL |
6,297 |
|
Datasheet |
Radial, Disc | PTR060V | Tape & Reel (TR) | Active | Polymeric | 60V | 1.1 A | 2.2 A | 40 A | 8.2 s | 150 mOhms | 380 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.512" Dia x 0.118" T (13.00mm x 3.00mm) | 0.709" (18.00mm) | - | 0.197" (5.00mm) |
|
|
BK30-600-SZPTC RESET FUSE 30V 6A RAD |
3,516 |
|
Datasheet |
Radial, Disc | BK30 | Bulk | Active | Polymeric | 30V | 6 A | 12 A | 40 A | 16 s | 5 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.689" L x 0.122" W (17.50mm x 3.10mm) | 1.083" (27.50mm) | - | 0.413" (10.50mm) |
|
SMD1206P100TFAPTC RESET FUSE 6V 1A 1206 |
4,688 |
|
Datasheet |
1206 (3216 Metric), Concave | POLY-FUSE®, SMD1206 | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 1 A | 1.8 A | 40 A | 300 ms | 55 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.039" (1.00mm) | - |
|
MF-LS190PTC RESET FUSE 24V 1.9A STRAP |
2,893 |
|
Datasheet |
Strap | Multifuse®, MF-LS | Bulk | Active | Polymeric | 24V | 1.9 A | 4.2 A | 100 A | 3 s | 30 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.880" L x 0.417" W (22.35mm x 10.60mm) | - | 0.043" (1.10mm) | - |
|
|
MF-SVS170N-0PTC RESET FUSE 10V 1.7A STRAP |
6,400 |
|
Datasheet |
Strap | Multifuse®, MF-SVS | Bulk | Active | Polymeric | 10V | 1.7 A | 4.1 A | 100 A | 5 s | 18 mOhms | 64 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.906" L x 0.148" W (23.00mm x 3.75mm) | - | 0.035" (0.90mm) | - |
|
MF-VS210L-0PTC RESET FUSE 12V 2.1A STRAP |
5,323 |
|
Datasheet |
Strap | Multifuse®, MF-VS | Bulk | Active | Polymeric | 12V | 2.1 A | 4.7 A | 100 A | 5 s | 18 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.984" L x 0.205" W (25.00mm x 5.20mm) | - | 0.035" (0.90mm) | - |
|
|
MF-VS210N-0PTC RESET FUSE 12V 2.1A STRAP |
5,413 |
|
Datasheet |
Strap | Multifuse®, MF-VS | Bulk | Active | Polymeric | 12V | 2.1 A | 4.7 A | 100 A | 5 s | 18 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 1.220" L x 0.148" W (31.00mm x 3.75mm) | - | 0.035" (0.90mm) | - |
|
|
TRF250-120T-RDPTC RESET FUSE 250V 120MA RADIAL |
9,099 |
|
Datasheet |
Radial, Disc | PolySwitch® | Bag | Obsolete | Polymeric | 250V | 120 mA | 240 mA | 3 A | 1.5 s | 4 Ohms | 8 Ohms | - | - | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.200" (5.08mm) |
|

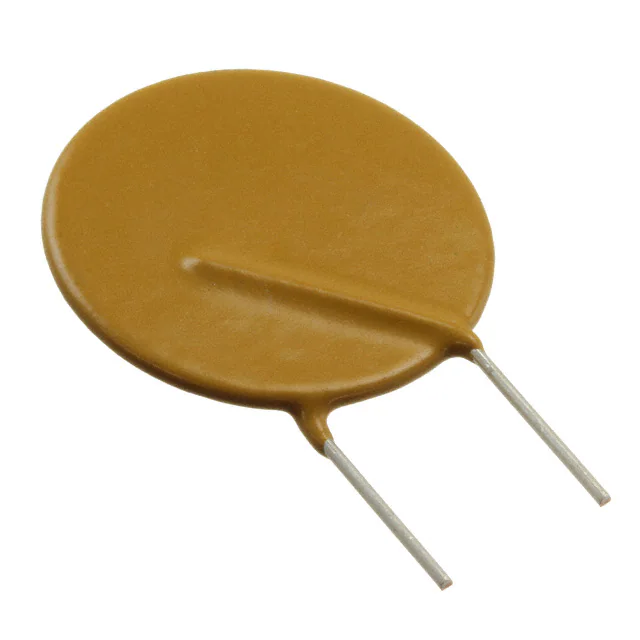

0ZRR0375FF2APTC RESET FUSE 60V 3.75A RADIAL |
3,257 |
|
Datasheet |
Radial, Disc | 0ZRR | Tape & Reel (TR) | Active | Polymeric | 60V | 3.75 A | 7.5 A | 40 A | 24 s | 30 mOhms | 80 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 1.122" Dia x 0.122" T (28.50mm x 3.10mm) | 1.319" (33.50mm) | - | 0.402" (10.20mm) |
|
|
SMD1206P150TFAPTC RESET FUSE 6V 1.5A 1206 |
2,988 |
|
Datasheet |
1206 (3216 Metric), Concave | POLY-FUSE®, SMD1206 | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 1.5 A | 3 A | 40 A | 1 s | 40 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.039" (1.00mm) | - |
|
0ZRN0070FF2DPTC RESET FUSE 30V 700MA RADIAL |
3,170 |
|
Datasheet |
Radial, Disc | 0ZRN | Tape & Reel (TR) | Active | Polymeric | 30V | 700 mA | 1.4 A | 40 A | 3.2 s | 300 mOhms | 800 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.272" L x 0.118" W (6.90mm x 3.00mm) | 0.425" (10.80mm) | - | 0.201" (5.10mm) |
|
0ZRN0300FF2DPTC RESET FUSE 16V 3A RADIAL |
4,887 |
|
Datasheet |
Radial, Disc | 0ZRN | Tape & Reel (TR) | Active | Polymeric | 16V | 3 A | 6 A | 100 A | 5 s | 33 mOhms | 79 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.346" L x 0.118" W (8.80mm x 3.00mm) | 0.543" (13.80mm) | - | 0.201" (5.10mm) |
|
|
PTGL06BB220N8B52B0PTC RESET FUSE |
4,924 |
|
- |
- | * | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SMD1812P020TFAPTC RESET FUSE 30V 200MA 1812 |
7,960 |
|
Datasheet |
1812 (4532 Metric), Concave | POLY-FUSE®, SMD1812 | Tape & Reel (TR) | Obsolete | Polymeric | 30V | 200 mA | 400 mA | 10 A | 20 ms | 800 mOhms | 5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.031" (0.78mm) | - |
|
|
TRF250-180S-2PTC RESET FUSE 100V 180MA RADIAL |
7,030 |
|
Datasheet |
Radial, Disc | PolySwitch®, TRF250 | Tape & Reel (TR) | Obsolete | Polymeric | 100V (250V Int) | 180 mA | 650 mA | 10 A | 2 s | 800 mOhms | 4 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.354" Dia x 0.150" T (9.00mm x 3.80mm) | 0.453" (11.50mm) | - | 0.197" (5.00mm) |
