PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PTR060V0010-TR1PTC RESET FUSE 60V 100MA RADIAL |
2,935 |
|
Datasheet |
Radial, Disc | PTR060V | Tape & Reel (TR) | Active | Polymeric | 60V | 100 mA | 200 mA | 40 A | 4 s | 2.5 Ohms | 7.5 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.500" (12.70mm) | - | 0.197" (5.00mm) |
|

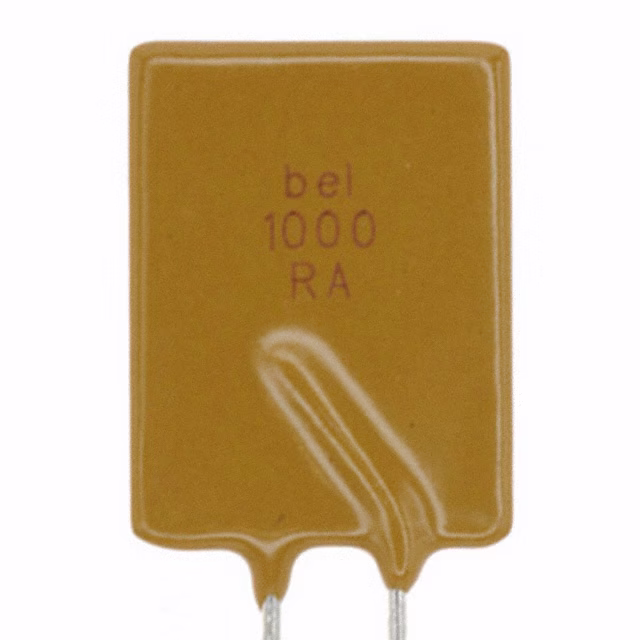

0ZRA1000FF1APTC RESET FUSE 16V 10A RADIAL |
8,442 |
|
Datasheet |
Radial, Disc | 0ZRA | Box | Active | Polymeric | 16V | 10 A | 17 A | 100 A | 12.5 s | 3 mOhms | 12 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 0.949" (24.10mm) | - | 0.201" (5.10mm) |
|
PTGL07BD330N3B51B0PTC RESET FUSE 32V 60MA RADIAL |
7,406 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 32V | 60 mA | 135 mA | 1.5 A | - | - | - | 33 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.291" Dia x 0.157" T (7.40mm x 4.00mm) | 0.528" (13.40mm) | - | 0.197" (5.00mm) |
|
PTGL05AR301M7N52A0FD |
9,704 |
|
- |
Radial, Disc | POSISTOR®, PTGL | Bulk | Active | Ceramic | 160V | 22 mA | 55 mA | 300 mA | - | 240 Ohms | 360 Ohms | 300 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | - | - | - | - |
|
|
RF5062-000AHS300F/24-2 |
8,303 |
|
Datasheet |
2-SMD | PolySwitch® AHS | Tape & Reel (TR) | Active | Polymeric | 24V | 3 A | 6 A | 20 A | 8 s | 15 mOhms | 100 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.343" L x 0.250" W (8.70mm x 6.36mm) | - | 0.118" (3.00mm) | - |
|
24LT190UPTC RESET FUSE 24V 1.9A STRAP |
2,404 |
|
Datasheet |
Strap | POLY-FUSE®, LT | Bulk | Obsolete | Polymeric | 24V | 1.9 A | 4.2 A | 100 A | 3 s | 30 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.880" L x 0.417" W (22.35mm x 10.60mm) | - | 0.039" (1.00mm) | - |
|
|
24LT180UPTC RESET FUSE 24V 1.8A STRAP |
9,110 |
|
Datasheet |
Strap | POLY-FUSE®, LT | Bulk | Obsolete | Polymeric | 24V | 1.8 A | 3.8 A | 100 A | 2.9 s | 40 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.984" L x 0.199" W (25.00mm x 5.05mm) | - | 0.039" (1.00mm) | - |
|
16VT170UPTC RESET FUSE 16V 1.7A STRAP |
4,338 |
|
- |
Strap | POLY-FUSE®, VT | Bulk | Obsolete | Polymeric | 16V | 1.7 A | 3.4 A | 100 A | 3 s | 30 mOhms | 105 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.648" L x 0.283" W (16.45mm x 7.20mm) | - | 0.032" (0.80mm) | - |
|
|
30ST200UPTC RESET FUSE 30V 2A STRAP |
8,360 |
|
Datasheet |
Strap | POLY-FUSE®, ST | Bulk | Obsolete | Polymeric | 30V | 2 A | 4.4 A | 100 A | 4 s | 30 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.880" L x 0.417" W (22.35mm x 10.60mm) | - | 0.043" (1.10mm) | - |
|
|
SMD1210P150TFAPTC RESET FUSE 6V 1.5A 1210 |
2,786 |
|
Datasheet |
1210 (3225 Metric), Concave | POLY-FUSE®, SMD1210 | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 1.5 A | 3 A | 40 A | 500 ms | 40 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.051" (1.30mm) | - |
|
|
SMD1812P160TF/8APTC RESET FUSE 8V 1.6A 1812 |
2,852 |
|
Datasheet |
1812 (4532 Metric), Concave | POLY-FUSE®, SMD1812 | Tape & Reel (TR) | Obsolete | Polymeric | 8V | 1.6 A | 2.8 A | 40 A | 1 s | 30 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.039" (1.00mm) | - |
|
0ZRF0011FF2BPTC RESET FUSE 60V 110MA RADIAL |
3,901 |
|
Datasheet |
Radial, Disc | 0ZRF | Tape & Reel (TR) | Active | Polymeric | 60V | 110 mA | 400 mA | 3 A | 2 s | 5 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.268" L x 0.181" W (6.80mm x 4.60mm) | 0.390" (9.90mm) | - | 0.197" (5.00mm) |
|

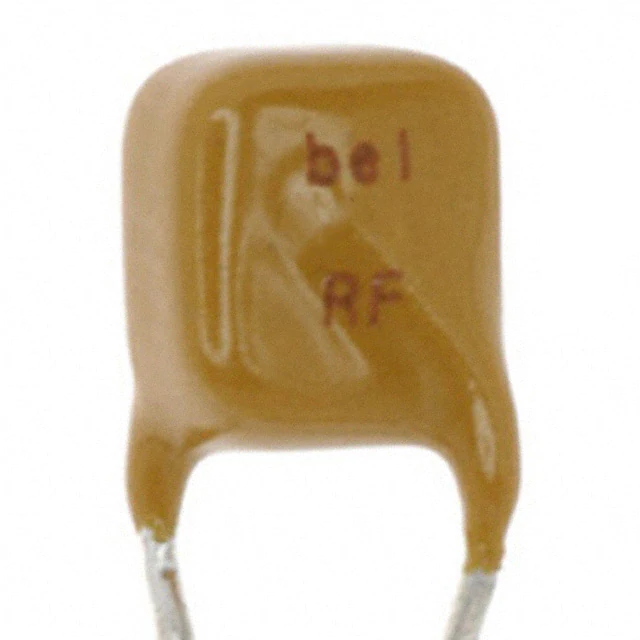

0ZRF0012FF2BPTC RESET FUSE 60V 120MA RADIAL |
8,952 |
|
Datasheet |
Radial, Disc | 0ZRF | Tape & Reel (TR) | Active | Polymeric | 60V | 120 mA | 480 mA | 3 A | 2 s | 4 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) |
|
TRF250-080U-2PTC RESET FUSE 60V 80MA RADIAL |
7,055 |
|
Datasheet |
Radial, Disc | PolySwitch®, TRF250 | Tape & Reel (TR) | Obsolete | Polymeric | 60V (250V Int) | 80 mA | 160 mA | 3 A | 4 s | 14 Ohms | 33 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.189" Dia x 0.150" T (4.80mm x 3.80mm) | 0.366" (9.30mm) | - | 0.197" (5.00mm) |
|
MF-RX160/72-0-14FUSE PTC RESETTABLE |
6,421 |
|
Datasheet |
Radial, Disc | MF-RX/72 | Bulk | Active | - | 72V | 1.6 A | 3.2 A | 40 A | 11.4 s | - | - | - | - | - | - | - | Through Hole | 0.642" L x 0.122" W (16.30mm x 3.10mm) | 0.839" (21.30mm) | - | 0.201" (5.10mm) |
|
|
MF-RX160/72-APPTC RESET FUSE 72V 1.6A RADIAL |
8,941 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX/72 | Tape & Box (TB) | Active | Polymeric | 72V | 1.6 A | 3.2 A | 40 A | 11.4 s | 90 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.642" L x 0.122" W (16.30mm x 3.10mm) | 0.839" (21.30mm) | - | 0.201" (5.10mm) |
|
MF-RX185/72-APPTC RESET FUSE 72V 1.85A RADIAL |
7,443 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX/72 | Tape & Box (TB) | Active | Polymeric | 72V | 1.85 A | 3.7 A | 40 A | 12.6 s | 80 mOhms | 190 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.701" L x 0.122" W (17.80mm x 3.10mm) | 0.902" (22.90mm) | - | 0.201" (5.10mm) |
|
|
MF-R160-2-17PTC RESETTABLE 1.6A 30V RADIAL L |
8,390 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Active | Polymeric | 30V | 1.6 A | 3.2 A | 40 A | 8 s | 55 mOhms | 150 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.402" Dia x 0.118" T (10.20mm x 3.00mm) | 0.661" (16.80mm) | - | 0.201" (5.10mm) |
|
|
MF-R160-AP-17PTC RESETTABLE 1.6A 30V RADIAL L |
9,623 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Box (TB) | Active | Polymeric | 30V | 1.6 A | 3.2 A | 40 A | 8 s | 55 mOhms | 150 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.402" Dia x 0.118" T (10.20mm x 3.00mm) | 0.661" (16.80mm) | - | 0.201" (5.10mm) |
|
|
MF-R185-2-17PTC RESETTABLE 1.85A 30V RADIAL |
4,947 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Active | Polymeric | 30V | 1.85 A | 3.7 A | 40 A | 8.7 s | 40 mOhms | 110 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.472" Dia x 0.118" T (12.00mm x 3.00mm) | 0.724" (18.40mm) | - | 0.201" (5.10mm) |
PTC Resettable Fuses Electronic Components
Explore PTC Resettable Fuses electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
