PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0ZRR0090FF1EPTC RESET FUSE 60V 900MA RADIAL |
370 |
|
Datasheet |
Radial, Disc | 0ZRR | Bulk | Active | Polymeric | 60V | 900 mA | 1.8 A | 40 A | 7.2 s | 200 mOhms | 470 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.461" Dia x 0.122" T (11.70mm x 3.10mm) | 0.622" (15.80mm) | - | 0.201" (5.10mm) |
|
PTR016V0110-BKPTC RESET FUSE 16V 1.1A RADIAL |
682 |
|
Datasheet |
Radial, Disc | PTR016V | Bulk | Active | Polymeric | 16V | 1.1 A | 2.2 A | 40 A | 2.3 s | 50 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" L x 0.122" W (7.40mm x 3.10mm) | 0.559" (14.20mm) | - | 0.197" (5.00mm) |
|
RUEF250SPTC RESET FUSE 30V 2.5A RADIAL |
227 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUEF | Bag | Active | Polymeric | 30V | 2.5 A | 5 A | 100 A | 10.3 s | 20 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.449" L x 0.118" W (11.40mm x 3.00mm) | 0.720" (18.30mm) | - | 0.199" (5.05mm) |
|
0ZRG0135FF1EPTC RESET FUSE 30V 1.35A RADIAL |
976 |
|
Datasheet |
Radial, Disc | 0ZRG | Bulk | Active | Polymeric | 30V | 1.35 A | 2.7 A | 40 A | 4.5 s | 40 mOhms | 120 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.532" (13.50mm) | - | 0.201" (5.10mm) |
|
0ZRG0155FF1EPTC RESET FUSE 30V 1.55A RADIAL |
925 |
|
Datasheet |
Radial, Disc | 0ZRG | Bulk | Active | Polymeric | 30V | 1.55 A | 2.7 A | 40 A | 2.2 s | 30 mOhms | 120 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.272" Dia x 0.118" T (6.90mm x 3.00mm) | 0.461" (11.70mm) | - | 0.201" (5.10mm) |
|
BK250-400-SZPTC RESET FUSE 250V 400MA RAD |
240 |
|
Datasheet |
Radial, Disc | BK250 | Bulk | Active | Polymeric | 250V | 400 mA | 800 mA | 10 A | 9 s | 1 Ohms | 3 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.441" L x 0.181" W (11.20mm x 4.60mm) | 0.768" (19.50mm) | - | 0.201" (5.10mm) |
|
0ZRR0185FF1APTC RESET FUSE 60V 1.85A RADIAL |
501 |
|
Datasheet |
Radial, Disc | 0ZRR | Bulk | Active | Polymeric | 60V | 1.85 A | 3.7 A | 40 A | 12.6 s | 80 mOhms | 190 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.701" Dia x 0.122" T (17.80mm x 3.10mm) | 0.902" (22.90mm) | - | 0.201" (5.10mm) |
|
RUEF090-APPTC RESET FUSE 30V 900MA RADIAL |
450 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUEF | Cut Tape (CT) | Active | Polymeric | 30V | 900 mA | 1.8 A | 100 A | 5.9 s | 70 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.480" (12.20mm) | - | 0.199" (5.05mm) |
|
RUEF300UPTC RESET FUSE 30V 3A RADIAL |
443 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUEF | Bag | Active | Polymeric | 30V | 3 A | 6 A | 100 A | 10.8 s | 20 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.449" L x 0.118" W (11.40mm x 3.00mm) | 0.650" (16.50mm) | - | 0.199" (5.05mm) |
|
PTSA120660V010PTC RESET FUSE 100MA 60V 1206 |
382 |
|
Datasheet |
1206 (3216 Metric), Concave | PTSA1206 | Tape & Reel (TR) | Active | - | 60V | 100 mA | 250 mA | 10 A | 200 ms | 1.6 Ohms | 15 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.132" L x 0.067" W (3.35mm x 1.70mm) | - | 0.039" (1.00mm) | - |
|
PTSLR08058V450PTC RESET FUSE 4.5A 8V 1206 |
325 |
|
Datasheet |
0805 (2012 Metric), Concave | PTSLR0805 | Tape & Reel (TR) | Active | - | 8V | 4.5 A | 9 A | 50 A | 60 s | 2 mOhms | 12 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.098" L x 0.063" W (2.50mm x 1.60mm) | - | 0.055" (1.40mm) | - |
|
|
RUEF300KPTC RESET FUSE 30V 3A RADIAL |
60 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUEF | Bag | Active | Polymeric | 30V | 3 A | 6 A | 100 A | 10.8 s | 20 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.449" L x 0.118" W (11.40mm x 3.00mm) | 0.710" (18.03mm) | - | 0.199" (5.05mm) |
|
RGEF250PTC RESET FUSE 16V 2.5A RADIAL |
146 |
|
Datasheet |
Radial, Disc | PolySwitch®, RGEF | Bag | Active | Polymeric | 16V | 2.5 A | 4.7 A | 100 A | 5 s | 22 mOhms | 53 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.504" (12.80mm) | - | 0.199" (5.05mm) |
|
RKEF090PTC RESET FUSE 60V 900MA RADIAL |
508 |
|
Datasheet |
Radial, Disc | PolySwitch®, RKEF | Bag | Active | Polymeric | 60V | 900 mA | 1.8 A | 40 A | 2 s | 190 mOhms | 520 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.310" L x 0.140" W (7.87mm x 3.56mm) | 0.550" (13.97mm) | - | 0.200" (5.08mm) |
|
|
RUEF300K-APPTC RESET FUSE 30V 3A RADIAL |
2,000 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUEF | Cut Tape (CT) | Active | Polymeric | 30V | 3 A | 6 A | 100 A | 10.8 s | 20 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.449" L x 0.118" W (11.40mm x 3.00mm) | 0.650" (16.50mm) | - | 0.199" (5.05mm) |
|
30R135UUPTC RESET FUSE 30V 1.35A RADIAL |
170 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 30R | Bulk | Active | Polymeric | 30V | 1.35 A | 2.7 A | 40 A | 7.3 s | 40 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.532" (13.50mm) | - | 0.201" (5.10mm) |
|
RUSBF250PTC RESET FUSE 16V 2.5A RADIAL |
325 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUSBF | Bag | Active | Polymeric | 16V | 2.5 A | 5 A | 40 A | 40 s | 20 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.449" L x 0.118" W (11.40mm x 3.00mm) | 0.720" (18.30mm) | - | 0.118" (3.00mm) |
|
AHRF200PTC RESET FUSE 16V 2A RADIAL |
322 |
|
Datasheet |
Radial, Disc | PolySwitch®, AHRF | Bag | Active | Polymeric | 16V | 2 A | 3.8 A | 100 A | 4.8 s | 39 mOhms | 110 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.370" Dia x 0.118" T (9.40mm x 3.00mm) | 0.567" (14.40mm) | - | 0.199" (5.05mm) |
|
PTSAHT120624V050PTC RESET FUSE 500MA 24V 1206 |
388 |
|
Datasheet |
1206 (3216 Metric), Concave | PTSAHT1206 | Tape & Reel (TR) | Active | - | 24V | 500 mA | 2.5 A | 20 A | 100 ms | 200 mOhms | 1.6 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.132" L x 0.067" W (3.35mm x 1.70mm) | - | 0.057" (1.46mm) | - |
|

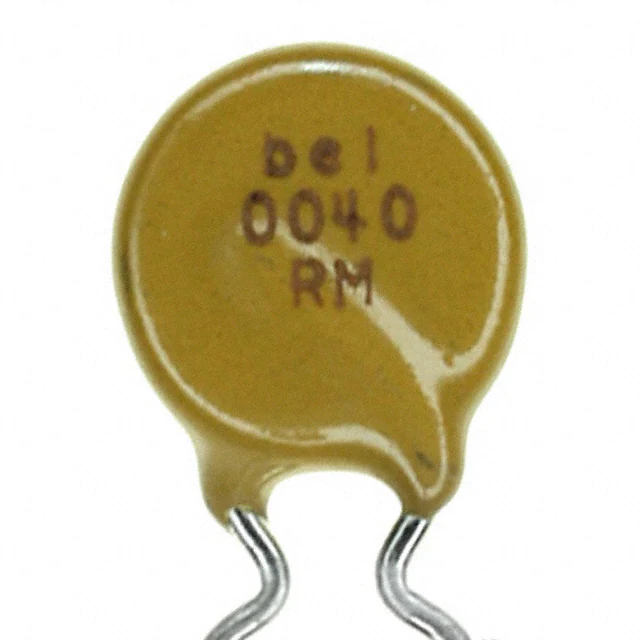

0ZRM0040FF1EPTC RESET FUSE 120V 400MA RADIAL |
177 |
|
Datasheet |
Radial, Disc | 0ZRM | Box | Active | Polymeric | 120V | 400 mA | 800 mA | 3 A | 6.5 s | 550 mOhms | 1.29 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.323" Dia x 0.150" T (8.20mm x 3.80mm) | 0.559" (14.20mm) | - | 0.201" (5.10mm) |
PTC Resettable Fuses Electronic Components
Explore PTC Resettable Fuses electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
