PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMD2920B075TF/60PTC RESET FUSE 60V 750MA 2920 |
265 |
|
Datasheet |
2920 (7351 Metric), Concave | SMD2920 | Tape & Reel (TR) | Active | Polymeric | 60V | 750 mA | 1.5 A | 10 A | 300 ms | 100 mOhms | 950 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.071" (1.80mm) | - |
|
0ZRR0135FF1APTC RESET FUSE 60V 1.35A RADIAL |
187 |
|
Datasheet |
Radial, Disc | 0ZRR | Bulk | Active | Polymeric | 60V | 1.35 A | 2.7 A | 40 A | 9.6 s | 120 mOhms | 300 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.571" Dia x 0.122" T (14.50mm x 3.10mm) | 0.772" (19.60mm) | - | 0.201" (5.10mm) |
|
RXEF017SPTC RESET FUSE 60V 170MA RADIAL |
737 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Bag | Active | Polymeric | 60V | 170 mA | 340 mA | 40 A | 3 s | 3.3 Ohms | 8 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.500" (12.70mm) | - | 0.199" (5.05mm) |
|
RXEF010SPTC RESET FUSE 60V 100MA RADIAL |
560 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Bag | Active | Polymeric | 60V | 100 mA | 200 mA | 40 A | 4 s | 2.5 Ohms | 7.5 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.457" (11.60mm) | - | 0.199" (5.05mm) |
|
PTSLR12066V260PTC RESET FUSE 6V 2.6A 1206 |
380 |
|
Datasheet |
1206 (3216 Metric), Concave | PTSLR1206 | Tape & Reel (TR) | Active | Polymeric | 6V | 2.6 A | 5 A | 50 A | 4 s | 3 mOhms | 30 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.047" (1.20mm) | - |
|
0ZRR0025FF1EPTC RESET FUSE 60V 250MA RADIAL |
371 |
|
Datasheet |
Radial, Disc | 0ZRR | Bulk | Active | Polymeric | 60V | 250 mA | 500 mA | 40 A | 2.5 s | 1.25 Ohms | 3 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
PFNF.150.2PTC RESET FUSE 6V 1.5A 1206 |
839 |
|
Datasheet |
1206 (3216 Metric), Concave | PFNF | Tape & Reel (TR) | Active | Polymeric | 6V | 1.5 A | 3 A | 100 A | 1 s | 30 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.028" (0.70mm) | - |
|
PTR016V0800-BKPTC RESET FUSE 16V 8A RADIAL |
633 |
|
Datasheet |
Radial, Disc | PTR016V | Bulk | Active | Polymeric | 16V | 8 A | 13.6 A | 100 A | 5 s | 5 mOhms | 18 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.500" L x 0.122" W (12.70mm x 3.10mm) | 0.823" (20.90mm) | - | 0.197" (5.00mm) |
|
|
PTR016V0300-BKPTC RESET FUSE 16V 3A RADIAL |
483 |
|
Datasheet |
Radial, Disc | PTR016V | Bulk | Active | Polymeric | 16V | 3 A | 5.1 A | 100 A | 1 s | 38 mOhms | 98 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.280" L x 0.122" W (7.10mm x 3.10mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) |
|
|
PFNF.050.2PTC RESET FUSE 13.2V 500MA 1206 |
302 |
|
Datasheet |
1206 (3216 Metric), Concave | PFNF | Tape & Reel (TR) | Active | Polymeric | 13.2V | 500 mA | 1 A | 100 A | 100 ms | 150 mOhms | 700 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.033" (0.85mm) | - |
.jpg)
|
MF-PSML260/6-2PTC RESET FUSE 6V 2.6A 0805 |
672 |
|
Datasheet |
0805 (2012 Metric), Concave | Multifuse®, MF-PSML/X | Tape & Reel (TR) | Active | Polymeric | 6V | 2.6 A | 5.2 A | 50 A | 4 s | 3 mOhms | 30 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.055" (1.40mm) | - |
|
PTSA181224V050PTC RESET FUSE 500MA 24V 1812 |
548 |
|
Datasheet |
1812 (4532 Metric), Concave | PTSA1812 | Tape & Reel (TR) | Active | - | 24V | 500 mA | 1 A | 50 A | 150 ms | 100 mOhms | 1 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.178" L x 0.126" W (4.53mm x 3.20mm) | - | 0.041" (1.05mm) | - |
|
RXEF025-APPTC RESET FUSE 72V 250MA RADIAL |
389 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Cut Tape (CT) | Active | Polymeric | 72V | 250 mA | 500 mA | 40 A | 2.5 s | 1.25 Ohms | 3 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.500" (12.70mm) | - | 0.199" (5.05mm) |
|

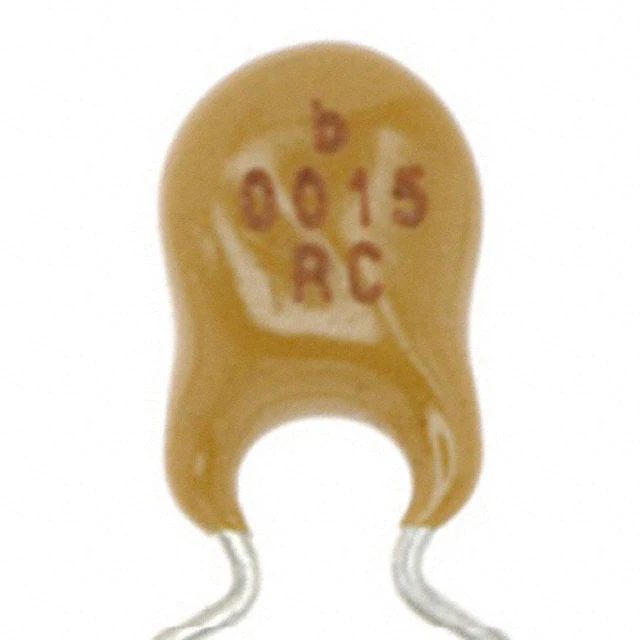

0ZRC0015FF1EPTC RESET FUSE 90V 150MA RADIAL |
903 |
|
Datasheet |
Radial, Disc | 0ZRC | Box | Active | Polymeric | 90V | 150 mA | 350 mA | 40 A | 10 s | 2.4 Ohms | 7 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" L x 0.122" W (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
PFRA.050PTC RESET FUSE 60V 500MA RADIAL |
247 |
|
Datasheet |
Radial, Disc | PFRA | Bulk | Active | Polymeric | 60V | 500 mA | 1 A | 40 A | 4 s | 410 mOhms | 1.17 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.311" Dia x 0.122" T (7.90mm x 3.10mm) | 0.539" (13.70mm) | - | 0.201" (5.10mm) |
|

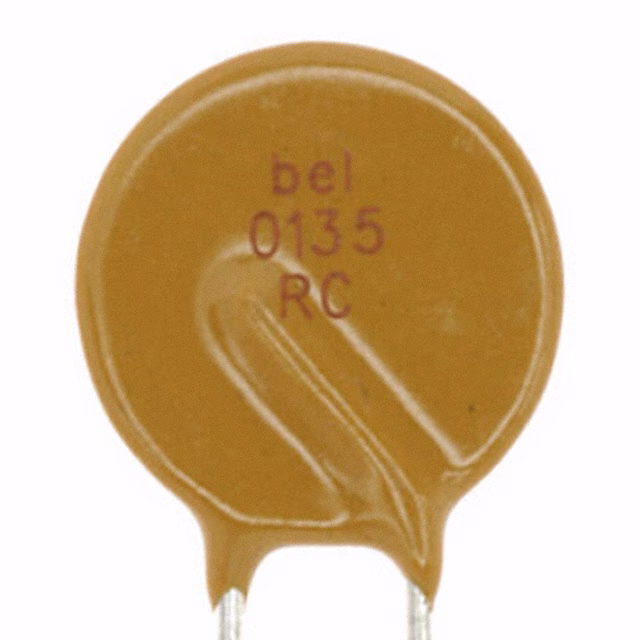

0ZRC0135FF1APTC RESET FUSE 90V 1.35A RADIAL |
596 |
|
Datasheet |
Radial, Disc | 0ZRC | Box | Active | Polymeric | 90V | 1.35 A | 2.7 A | 40 A | 9.6 s | 120 mOhms | 300 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.571" L x 0.122" W (14.50mm x 3.10mm) | 0.772" (19.60mm) | - | 0.201" (5.10mm) |
|
|
PTR016V0400-BKPTC RESET FUSE 16V 4A RADIAL |
1,000 |
|
Datasheet |
Radial, Disc | PTR016V | Bulk | Active | Polymeric | 16V | 4 A | 6.8 A | 100 A | 1.7 s | 21 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" L x 0.122" W (8.90mm x 3.10mm) | 0.504" (12.80mm) | - | 0.197" (5.00mm) |
|
PTR030V0250-BKPTC RESET FUSE 30V 2.5A RADIAL |
397 |
|
Datasheet |
Radial, Disc | PTR030V | Bulk | Active | Polymeric | 30V | 2.5 A | 5 A | 40 A | 10.3 s | 20 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.449" L x 0.118" W (11.40mm x 3.00mm) | 0.720" (18.30mm) | - | 0.197" (5.00mm) |
|
PFMF.260.2PTC RESET FUSE 6V 2.6A 1812 |
374 |
|
Datasheet |
1812 (4532 Metric), Concave | PFMF | Tape & Reel (TR) | Active | Polymeric | 6V | 2.6 A | 5.2 A | 100 A | 5 s | 15 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.033" (0.85mm) | - |
|
RKEF065PTC RESET FUSE 60V 650MA RADIAL |
337 |
|
Datasheet |
Radial, Disc | PolySwitch®, RKEF | Bag | Active | Polymeric | 60V | 650 mA | 1.3 A | 40 A | 1 s | 250 mOhms | 720 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.280" L x 0.140" W (7.10mm x 3.56mm) | 0.480" (12.20mm) | - | 0.199" (5.05mm) |
PTC Resettable Fuses Electronic Components
Explore PTC Resettable Fuses electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
