Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLDX-015A-DX01-PSENSOR 15PSIA 0.09" .075V 6DIP |
0 |
|
Datasheet |
MLDX | 6-DIP (0.600", 15.24mm), Dual Ports, Same Side | Tray | Active | - | Absolute | 15PSI (103.42kPa) | Analog Voltage | 0 mV ~ 75 mV | ±0.5% | 20V | Male - 0.09" (2.24mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | 6-DIP |
|
|
RSCDJJI060MDSE3RSCDJJI060MDSE3 |
0 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RSCDJJI160MDSE3TRUSTABILITY PRESSURE SENSOR |
0 |
|
- |
TruStability® RSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Absolute | ±2.32PSI (±16kPa) | SPI | 24 b | ±0.1% | 3V ~ 3.6V | Male - 0.8" (20.32mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pins | ±4.86PSI (±33.5kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
RSCDRRM005PDSE3RSCDRRM005PDSE3 |
0 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PBN3C421DUNSEALED OI-PB SWITCH |
0 |
|
Datasheet |
PBN | Module | Bulk | Active | Board Mount | Switch | 0.07PSI (0.5kPa) | SPST-NO | - | - | 120V | Male - 1/4" (6.35mm) Tube, Dual | Barbed | - | - | 8PSI (55.16kPa) | -40°C ~ 96°C | - | - | Chassis Mount | - |
|
|
85-050G-4CSNSR PRES 50PSIG 1/4" - 18NPT |
0 |
|
Datasheet |
- | Cylinder | Bulk | Active | - | Vented Gauge | 50PSI (344.74kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 150PSI (1034.21kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
85-015A-4CSENSOR 15PSIA 1/4NPT RIBN W/CONN |
0 |
|
Datasheet |
- | Cylinder | Bulk | Active | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
85-100A-4CSENSOR 100PSIA 1/4NPT RIB W/CONN |
0 |
|
Datasheet |
- | Cylinder | Bulk | Active | - | Absolute | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 300PSI (2068.43kPa) | -40°C ~ 125°C | - | - | - | - |
|
85-300A-4CSENSOR 300PSIA 0.1V |
0 |
|
Datasheet |
- | Cylinder | Bulk | Active | - | Absolute | 300PSI (2068.43kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 900PSI (6205.28kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
85-500A-4CSENSOR 500PSIA 1/4NPT RIB W/CONN |
0 |
|
Datasheet |
- | Cylinder | Bulk | Active | - | Absolute | 500PSI (3447.38kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 1500PSI (10342.14kPa) | -40°C ~ 125°C | - | - | - | - |
|

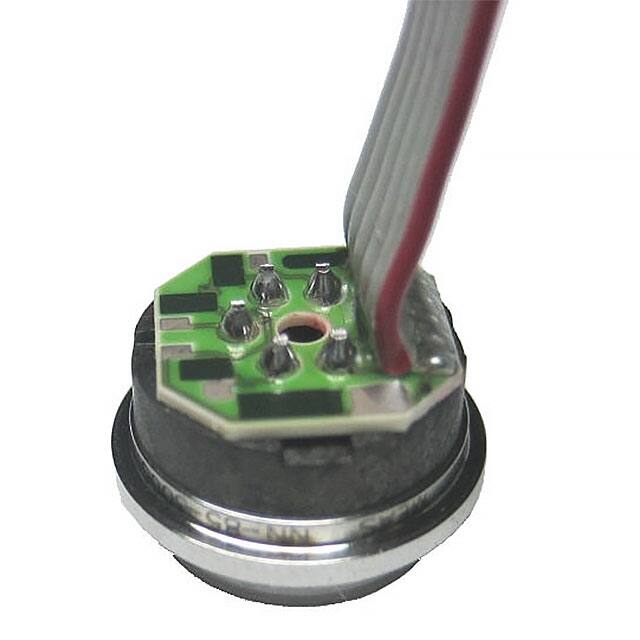

85-100A-8CSENSOR 100PSIA 0.1V |
0 |
|
Datasheet |
- | Cylinder | Tube | Active | Board Mount | Absolute | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 300PSI (2068.43kPa) | -40°C ~ 125°C | - | - | - | - |
|
85-100G-4RSENSOR 100PSIG 0.1V |
0 |
|
Datasheet |
- | Cylinder | Tube | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 300PSI (2068.43kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
RSCMJNE100PGSE3TRUSTABILITY |
0 |
|
- |
TruStability® RSC | 8-SMD, J-Lead, Side Port | Tube | Active | Board Mount | Absolute | 0.04PSI (0.25kPa) | SPI | 24 b | ±0.1% | 3V ~ 3.6V | Male - 0.8" (20.32mm) Tube | Barbed | Amplified Output, Temperature Compensated | J Lead | ±4.86PSI (±33.5kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
|
RSCDRRE015PDSE5SENSOR 15PSID 0.08" 24BIT 8DIP |
0 |
|
Datasheet |
TruStability® RSC | 8-DIP (0.524", 13.30mm), Side Port | Bulk | Active | Board Mount | Differential | ±15PSI (±103.42kPa) | SPI | 24 b | ±0.1% | 2.7V ~ 6V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 120PSI (827.37kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
RSCDRRE160MDSE3TRUSTABILITY PRESSURE SENSOR |
0 |
|
Datasheet |
TruStability® RSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Absolute | ±2.32PSI (±16kPa) | SPI | 24 b | ±0.1% | 3V ~ 3.6V | Male - 0.8" (20.32mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pins | ±4.86PSI (±33.5kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
RSCMRRE001PDSE3PRESSURE |
0 |
|
Datasheet |
TruStability® RSC | 8-SMD, J-Lead, Dual Ports, Same Side | Bulk | Active | Board Mount | Absolute | ±1PSI (±6.89kPa) | SPI | 24 b | ±0.1% | 3V ~ 3.6V | Male - 0.8" (20.32mm) Tube | Barbed | Amplified Output, Temperature Compensated | - | ±4.86PSI (±33.5kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|
|
RSCDRRE015PGSE3TRUSTABILITY PRESSURE SENSOR |
0 |
|
Datasheet |
TruStability® RSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Absolute | 0.04PSI (0.25kPa) | SPI | 24 b | ±0.1% | 3V ~ 3.6V | Male - 0.8" (20.32mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pins | ±4.86PSI (±33.5kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
RSCMRRE600MDSE3TRUSTABILITY PRESSURE SENSOR |
0 |
|
- |
TruStability® RSC | 8-SMD, J-Lead, Dual Ports, Same Side | Bulk | Active | Board Mount | Absolute | ±8.7PSI (±60kPa) | SPI | 24 b | ±0.1% | 3V ~ 3.6V | Male - 0.8" (20.32mm) Tube | Barbed | Amplified Output, Temperature Compensated | - | ±4.86PSI (±33.5kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|

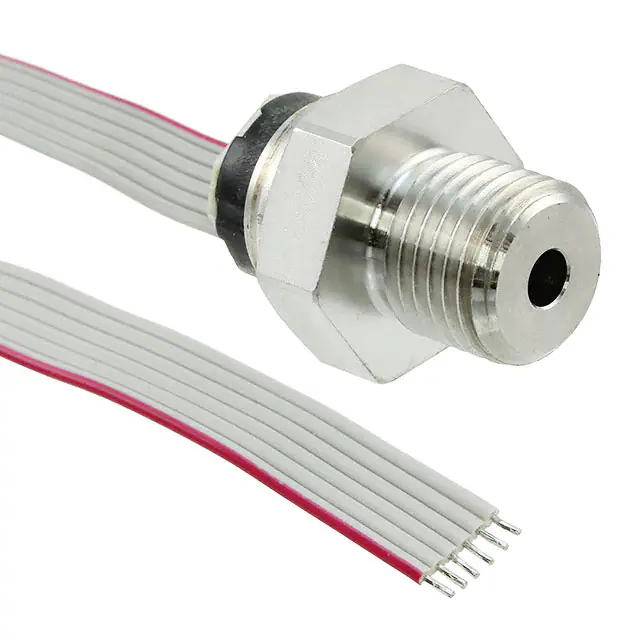

85-100G-5RSENSOR 100PSIG 0.1V |
0 |
|
Datasheet |
- | Cylinder | Tube | Obsolete | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 300PSI (2068.43kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
26PCAFB2GSENSOR 1PSIC 0.18" .0167V |
0 |
|
Datasheet |
26PC | 4-DIP Module | Bulk | Active | Board Mount | Compound | ±1PSI (±6.89kPa) | Wheatstone Bridge | 0 mV ~ 16.7 mV (10V) | ±0.5% | 2.5V ~ 16V | Male - 0.18" (4.57mm) Tube | Barbed | Temperature Compensated | - | ±20PSI (±137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
