Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NPI-15B-500AVSENSOR 500PSIA 1/2" 0.1V |
0 |
|
Datasheet |
NPI-15VC | Cylinder | Bulk | Active | Board Mount | Absolute | 500PSI (3447.38kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (10V) | ±0.35% | 10V ~ 15V | Male - 1/2" (12.7mm) UNF | Threaded | Temperature Compensated | Flex Cable | 1000PSI (6894.76kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
NPI-15B-1K0AVSENSOR 1000PSIA 1/2" 0.1V |
0 |
|
Datasheet |
NPI-15VC | Cylinder | Bulk | Active | Board Mount | Absolute | 1000PSI (6894.76kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (10V) | ±0.35% | 10V ~ 15V | Male - 1/2" (12.7mm) UNF | Threaded | Temperature Compensated | Flex Cable | 2000PSI (13789.51kPa) | -40°C ~ 125°C | - | - | - | - |
|
NPI-15J-500AVSENSOR 500PSIA 1/8"NPT 0.1V |
0 |
|
Datasheet |
NPI-15VC | Cylinder | Bulk | Active | Board Mount | Absolute | 500PSI (3447.38kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (10V) | ±0.35% | 10V ~ 15V | Male - 1/8" (3.18mm) NPT | Threaded | Temperature Compensated | Flex Cable | 1000PSI (6894.76kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
NPI-15J-1K0AVSENSOR 1000PSIA 1/8"NPT 0.1V |
0 |
|
Datasheet |
NPI-15VC | Cylinder | Bulk | Active | Board Mount | Absolute | 1000PSI (6894.76kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (10V) | ±0.35% | - | Male - 1/8" (3.18mm) NPT | Threaded | Temperature Compensated | Flex Cable | 2000PSI (13789.51kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
NPI-15B-500SVSENSOR 500PSIS 1/2" 0.1V |
0 |
|
Datasheet |
NPI-15VC | Cylinder | Bulk | Active | Board Mount | Sealed Gauge | 500PSI (3447.38kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (10V) | ±0.35% | 10V ~ 15V | Male - 1/2" (12.7mm) UNF | Threaded | Temperature Compensated | Flex Cable | 1000PSI (6894.76kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
NPI-15B-1K0SVSENSOR 1000PSIS 1/2" 0.1V |
0 |
|
Datasheet |
NPI-15VC | Cylinder | Bulk | Active | Board Mount | Sealed Gauge | 1000PSI (6894.76kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (10V) | ±0.35% | 10V ~ 15V | Male - 1/2" (12.7mm) UNF | Threaded | Temperature Compensated | Flex Cable | 2000PSI (13789.51kPa) | -40°C ~ 125°C | - | - | - | - |
|
82-001G-CSENSOR 1PSIG RIBBON CABLE W/CONN |
0 |
|
Datasheet |
- | - | Bulk | Active | Board Mount | - | - | - | - | - | - | - | - | - | Cable with Connector | - | - | - | - | - | - |
|
26PCBFA6DSENSOR 5PSID 0.2" .05V |
0 |
|
Datasheet |
26PC | 4-SIP Module | Tray | Active | Board Mount | Differential | ±5PSI (±34.47kPa) | Wheatstone Bridge | 0 mV ~ 50 mV (10V) | ±0.5% | 2.5V ~ 16V | Male - 0.2" (5mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | ±20PSI (±137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
26PCDFA6DSENSOR 30PSID 0.2" 0.1V |
0 |
|
Datasheet |
26PC | 4-SIP Module | Tray | Active | Board Mount | Differential | ±30PSI (±206.84kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (10V) | ±0.2% | 2.5V ~ 16V | Male - 0.2" (5.08mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | ±60PSI (±413.69kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|

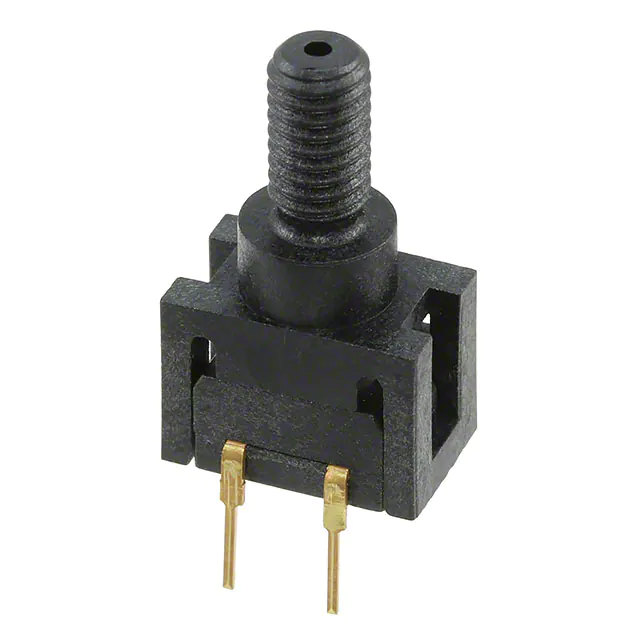

26PCFFH2GSENSOR 100PSIC M5 0.1V |
0 |
|
Datasheet |
26PC | 4-SIP Module | Bulk | Active | Board Mount | Compound | ±100PSI (±689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (10V) | ±0.6% | 2.5V ~ 16V | Male - M5 | Threaded | Temperature Compensated | PC Pin | ±200PSI (±1378.95kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
26PCGFA2GSENSOR 250PSIC 0.2" .15V |
0 |
|
Datasheet |
26PC | 4-DIP Module | Bulk | Active | Board Mount | Compound | ±250PSI (±1723.69kPa) | Wheatstone Bridge | 0 mV ~ 150 mV (10V) | ±0.7% | 2.5V ~ 16V | Male - 0.2" (5mm) Tube | Barbless | Temperature Compensated | PC Pin | ±500PSI (±3447.38kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
SSCDJJN010MDAA5SENSOR 0.15PSID 0.09" 4.5V 8DIP |
0 |
|
Datasheet |
TruStability® SSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±0.15PSI (±1kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.95V ~ 5.05V | Male - 0.09" (2.34mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±10.88PSI (±75kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
26PCAFA2GSENSOR 1PSIC 0.2" .0167V |
0 |
|
Datasheet |
26PC | 4-SIP Module | Bulk | Active | Board Mount | Compound | ±1PSI (±6.89kPa) | Wheatstone Bridge | 0 mV ~ 16.7 mV (10V) | ±0.5% | 2.5V ~ 16V | Male - 0.2" (5mm) Tube | Barbless | Temperature Compensated | PC Pin | ±20PSI (±137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
77342-17.0HG-01VACCUM SWITCH |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RSCDJJM010KDSE3TRUSTABILITY PRESSURE SENSOR |
0 |
|
- |
TruStability® RSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Absolute | ±1.45PSI (±10kPa) | SPI | 24 b | ±0.1% | 3V ~ 3.6V | Male - 0.8" (20.32mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pins | ±4.86PSI (±33.5kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
RSCDRRM006KDSE3TRUSTABILITY PRESSURE SENSOR |
0 |
|
Datasheet |
TruStability® RSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Absolute | ±0.87PSI (±6kPa) | SPI | 24 b | ±0.1% | 3V ~ 3.6V | Male - 0.8" (20.32mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pins | ±4.86PSI (±33.5kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
RSCDJNM150PGSE3TRUSTABILITY PRESSURE SENSOR |
0 |
|
Datasheet |
TruStability® RSC | 8-DIP (0.524", 13.30mm), Side Port | Bulk | Active | Board Mount | Absolute | 0.04PSI (0.25kPa) | SPI | 24 b | ±0.1% | 3V ~ 3.6V | Male - 0.8" (20.32mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pins | ±4.86PSI (±33.5kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
RSCMRRE1.6KDSE3SENSOR PRESS 1.6KPA DIFF 3.3V |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RSCDJJE005PGSE3TRUSTABILITY PRESSURE SENSOR |
0 |
|
- |
TruStability® RSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Absolute | 0.04PSI (0.25kPa) | SPI | 24 b | ±0.1% | 3V ~ 3.6V | Male - 0.8" (20.32mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pins | ±4.86PSI (±33.5kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
RSCDJJM010MDSE3TRUSTABILITY |
0 |
|
- |
TruStability® RSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Absolute | ±0.15PSI (±1kPa) | SPI | 24 b | ±0.1% | 3V ~ 3.6V | Male - 0.8" (20.32mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pins | ±4.86PSI (±33.5kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
