Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NPA-600M-030GSENSOR 30PSIG 0.12" 14BIT 14SOIC |
0 |
|
Datasheet |
NPA-600 | 14-SOIC Module, Top Port | Tape & Reel (TR) | Active | Board Mount | Vented Gauge | 30PSI (206.84kPa) | ZACwire™ | 14 b | ±1.5% | 2.7V ~ 5.5V | Male - 0.12" (3mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | Gull Wing | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|

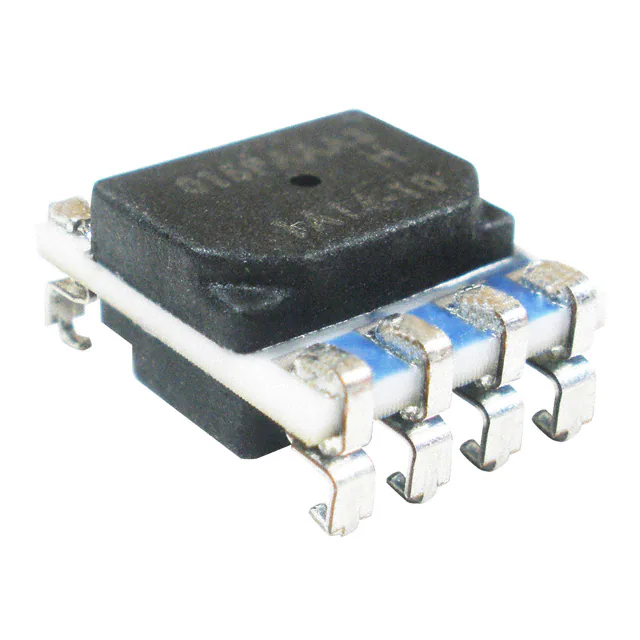

NSCMNNN010BAUNVSENSOR 145.04PSIA .0915V 8SMT |
0 |
|
Datasheet |
TruStability® NSC | 8-SMD, J-Lead | Tube | Obsolete | Board Mount | Absolute | 145.04PSI (1000kPa) | Wheatstone Bridge | 0 mV ~ 91.5 mV (5V) | ±0.25% | 1.5V ~ 12V | - | No Port | - | J Lead | 246.56PSI (1700kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|
|
NSCMNNN150PDUNVSENSOR 150PSID .2585V 8SMT |
0 |
|
Datasheet |
TruStability® NSC | 8-SMD, J-Lead | Bulk | Obsolete | Board Mount | Differential | ±150PSI (±1034.21kPa) | Wheatstone Bridge | 0 mV ~ 258.5 mV (5V) | ±0.25% | 1.5V ~ 12V | - | No Port | - | J Lead | ±250PSI (±1723.69kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|
NSCMRNN010BGUNVSENS 145.04PSIG 0.08" .125V SMT |
0 |
|
Datasheet |
TruStability® NSC | 8-SMD, J-Lead, Side Port | Bulk | Obsolete | Board Mount | Vented Gauge | 145.04PSI (1000kPa) | Wheatstone Bridge | 0 mV ~ 125 mV (5V) | ±0.25% | 1.5V ~ 12V | Male - 0.08" (1.93mm) Tube | Barbed | - | J Lead | 246.56PSI (1700kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|
|
32329594-001-01KEY SWITCH ASSEMBLY |
0 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
HSCSANN150PA2A5SENSOR 150PSIA 0.19" 12BIT 4SIP |
0 |
|
Datasheet |
TruStability® HSC | 4-SIP, Side Port | Tube | Obsolete | Board Mount | Absolute | 150PSI (1034.21kPa) | I2C | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
HSCDANN150PG7A5SENSOR 150PSIG 0.19" 12BIT 8DIP |
0 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 150PSI (1034.21kPa) | I2C | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
HSCDRRN100PDAA5SENSOR 100PSID 0.08" 4.5V 8DIP |
0 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±100PSI (±689.48kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | - | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
HSCDRNN060PGSA3SENSOR 60PSIG 0.08" 12BIT 8DIP |
0 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Side Port | Bulk | Obsolete | Board Mount | Vented Gauge | 60PSI (413.69kPa) | SPI | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 120PSI (827.37kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
HSCDRRN005PDSA3SENSOR 5PSID 0.08" 12BIT 8DIP |
0 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±5PSI (±34.47kPa) | SPI | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±30PSI (±206.84kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
HSCDRRN030PDAA3SENSOR 30PSID 0.08" 2.97V 8DIP |
0 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±30PSI (±206.84kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±120PSI (±827.37kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
HSCDRRN060MDSA5SENSOR 0.87PSID 0.08" 12BIT 8DIP |
0 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±0.87PSI (±6kPa) | SPI | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±12.33PSI (±85kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
HSCSANN060PA3A5SENSOR 60PSIA 0.19" 12BIT 4SIP |
0 |
|
Datasheet |
TruStability® HSC | 4-SIP, Side Port | Bulk | Obsolete | Board Mount | Absolute | 60PSI (413.69kPa) | I2C | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 120PSI (827.37kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
HSCDANN015PAAA3SENSOR 15PSIA 0.19" 2.97V 8DIP |
0 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3V ~ 3.6V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
HSCDANN030PDSA3SENSOR 30PSID 0.19" 12BIT 8DIP |
0 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Obsolete | Board Mount | Differential | ±30PSI (±206.84kPa) | SPI | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±120PSI (±827.37kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
HSCDANN030PGAA3SENSOR 30PSIG 0.19" 2.97V 8DIP |
0 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3V ~ 3.6V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
HSCDANN150PAAA3SENSOR 150PSIA 0.19" 2.97V 8DIP |
0 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Obsolete | Board Mount | Absolute | 150PSI (1034.21kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3V ~ 3.6V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
HSCDANN160MG3A3SENSOR 2.32PSIG 0.19" 12BIT 8DIP |
0 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 2.32PSI (16kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 12.33PSI (85kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
HSCDJJN030PDAA5SENSOR 30PSID 0.09" 4.5V 8DIP |
0 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±30PSI (±206.84kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.09" (2.34mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±120PSI (±827.37kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
HSCDJNN015PAAA5SENSOR 15PSIA 0.09" 4.5V 8DIP |
0 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Side Port | Bulk | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.09" (2.34mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
