Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NSCSANN006BAUNVSENSOR 87.02PSIA 0.19" .055V SIP |
0 |
|
Datasheet |
TruStability® NSC | 4-SIP, Side Port | Bulk | Obsolete | Board Mount | Absolute | 87.02PSI (600kPa) | Wheatstone Bridge | 0 mV ~ 55 mV (5V) | ±0.25% | 1.5V ~ 12V | Male - 0.19" (4.93mm) Tube | Barbed | - | PC Pin | 246.56PSI (1700kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
NSCSANN015PDUNVSENSOR 15PSID 0.19" .155V 4SIP |
0 |
|
Datasheet |
TruStability® NSC | 4-SIP, Side Port | Bulk | Obsolete | Board Mount | Differential | ±15PSI (±103.42kPa) | Wheatstone Bridge | 0 mV ~ 155 mV (5V) | ±0.25% | 1.5V ~ 12V | Male - 0.19" (4.93mm) Tube | Barbed | - | PC Pin | ±30PSI (±206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
NSCDRNN100PGUNVSENSOR 100PSIG 0.08" .086V 8DIP |
0 |
|
Datasheet |
TruStability® NSC | 8-DIP (0.524", 13.30mm), Side Port | Bulk | Obsolete | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 86 mV (5V) | ±0.25% | 1.5V ~ 12V | Male - 0.08" (1.93mm) Tube | Barbed | PC Polished | PC Pin | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
NSCSAAN001BDUNVSENSOR 14.5PSID 0.19" .15V 4SIP |
0 |
|
Datasheet |
TruStability® NSC | 4-SIP, Dual Ports, Opposite Sides | Bulk | Obsolete | Board Mount | Differential | ±14.5PSI (±100kPa) | Wheatstone Bridge | 0 mV ~ 150 mV (5V) | ±0.25% | 1.5V ~ 12V | Male - 0.19" (4.93mm) Tube, Dual | Barbed | - | PC Pin | ±29.01PSI (±200kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
NSCSAAN006BDUNVSENSOR 87.02PSID 0.19" .15V 4SIP |
0 |
|
Datasheet |
TruStability® NSC | 4-SIP, Dual Ports, Opposite Sides | Bulk | Obsolete | Board Mount | Differential | ±87.02PSI (±600kPa) | Wheatstone Bridge | 0 mV ~ 150 mV (5V) | ±0.25% | 1.5V ~ 12V | Male - 0.19" (4.93mm) Tube, Dual | Barbed | - | PC Pin | ±246.56PSI (±1700kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
NSCSAAN400MDUNVSENSOR 5.8PSID 0.19" .174V 4SIP |
0 |
|
Datasheet |
TruStability® NSC | 4-SIP, Dual Ports, Opposite Sides | Bulk | Obsolete | Board Mount | Differential | ±5.8PSI (±40kPa) | Wheatstone Bridge | 0 mV ~ 174 mV (5V) | ±0.25% | 1.5V ~ 12V | Male - 0.19" (4.93mm) Tube, Dual | Barbed | - | PC Pin | ±20.02PSI (±138kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
NSCSANN005PGUNVSENSOR 5PSIG 0.19" .075V 4SIP |
0 |
|
Datasheet |
TruStability® NSC | 4-SIP, Side Port | Bulk | Obsolete | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 75 mV (5V) | ±0.25% | 1.5V ~ 12V | Male - 0.19" (4.93mm) Tube | Barbed | - | PC Pin | 20PSI (137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
NSCSANN015PGUNVSENSOR 15PSIG 0.19" .0775V 4SIP |
0 |
|
Datasheet |
TruStability® NSC | 4-SIP, Side Port | Bulk | Obsolete | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 77.5 mV (5V) | ±0.25% | 1.5V ~ 12V | Male - 0.19" (4.93mm) Tube | Barbed | - | PC Pin | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
NSCSANN100PGUNVSENSOR 100PSIG 0.19" .086V 4SIP |
0 |
|
Datasheet |
TruStability® NSC | 4-SIP, Side Port | Bulk | Obsolete | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 86 mV (5V) | ±0.25% | 1.5V ~ 12V | Male - 0.19" (4.93mm) Tube | Barbed | - | PC Pin | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
NSCSANN150PAUNVSENSOR 150PSIA 0.19" .0945V 4SIP |
0 |
|
Datasheet |
TruStability® NSC | 4-SIP, Side Port | Bulk | Obsolete | Board Mount | Absolute | 150PSI (1034.21kPa) | Wheatstone Bridge | 0 mV ~ 94.5 mV (5V) | ±0.25% | 1.5V ~ 12V | Male - 0.19" (4.93mm) Tube | Barbed | - | PC Pin | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|

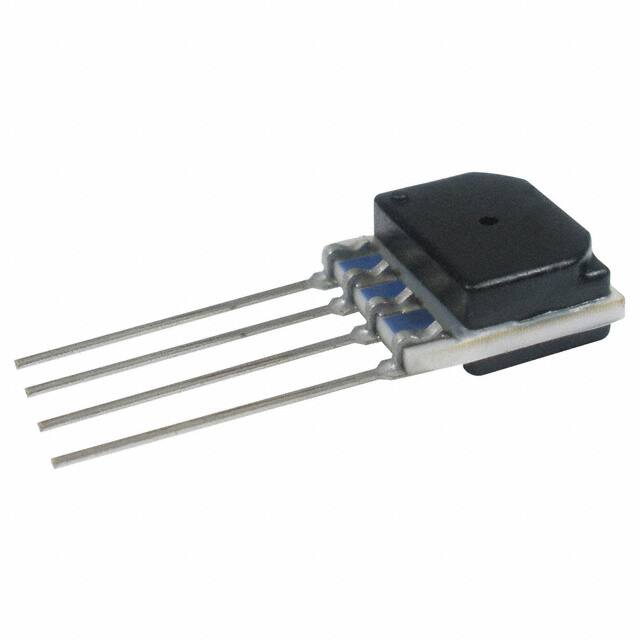

NSCSNNN004BGUNVSENSOR 58.02PSIG 0.1V 4SIP |
0 |
|
Datasheet |
TruStability® NSC | 4-SIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 58.02PSI (400kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (5V) | ±0.25% | 1.5V ~ 12V | - | No Port | - | PC Pin | 116.03PSI (800kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
ABPDRRT001BDAA5BASIC PRESSURE SENSOR |
0 |
|
Datasheet |
ABP | 6-DIP (0.453", 11.50mm), Dual Ports, Same Side | Bulk | Active | Medical Ventilation | Differential | ±0.15PSI (±1kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.06" (1.6mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pins | 246.56PSI (1700kPa) | -40°C ~ 85°C | - | - | Through Hole | 6-DIP |
|
BPS125-AD0P30-2DGSENSOR 0.3PSID 0.087" 13BIT 8SMD |
0 |
|
Datasheet |
BPS125 | 8-SMD, J-Lead, Dual Ports, Same Side | Tape & Reel (TR) | Active | - | Differential | 0.3PSI (2.07kPa) | Digital - I2C | 13 b | ±0.25% | 3V ~ 3.6V | Male - 0.087" (2.2mm) Tube, Dual | Barbed | - | J Lead | 1.5PSI (10.34kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
|
BPS125-AD01P0-2DGSENSOR 1PSID 0.087" 13BIT 8SMD |
0 |
|
Datasheet |
BPS125 | 8-SMD, J-Lead, Dual Ports, Same Side | Tape & Reel (TR) | Active | - | Differential | 1PSI (6.89kPa) | Digital - I2C | 13 b | ±0.25% | 3V ~ 3.6V | Male - 0.087" (2.2mm) Tube, Dual | Barbed | - | J Lead | 5PSI (34.47kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
|
BPS125-AD0P15-2DGSENSOR 0.15PSID 0.087" 13BIT SMD |
0 |
|
Datasheet |
BPS125 | 8-SMD, J-Lead, Dual Ports, Same Side | Tape & Reel (TR) | Active | - | Differential | 0.15PSI (1kPa) | Digital - I2C | 13 b | ±0.25% | 3V ~ 3.6V | Male - 0.087" (2.2mm) Tube, Dual | Barbed | - | J Lead | 0.75PSI (5.17kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
|
BPS115-AD01P0-2DGPRESSURE SENSOR, 1.0 PSID, 3.3V, |
0 |
|
- |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BPS115-AD0P15-2DGPRESSURE SENSOR, 0.15 PSID, 3.3V |
0 |
|
- |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BPS115-AD0P30-2DGPRESSURE SENSOR, 0.30 PSID, 3.3V |
0 |
|
- |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ABPDANN040KGAA5BASIC PRESSURE SENSOR |
0 |
|
Datasheet |
ABP | 6-DIP (0.453", 11.50mm), Top Port | Bulk | Active | Medical Ventilation | Gauge | 5.8PSI (40kPa) | Analog Voltage | 12b | ±0.25% | 4.75V ~ 5.25V | Male - 0.8" (20.32mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pins | 87.02PSI (600kPa) | -40°C ~ 85°C | - | - | Through Hole | 6-DIP |
|
|
ABP2DDAN002ND2B3XXABP2 STANDARD LISTING |
0 |
|
- |
ABP2 | 6-DIP (0.453", 11.50mm), Dual Top Ports | Bulk | Active | Medical Ventilation | Differential | -0.07PSI ~ 0.07PSI (-0.5kPa ~ 0.5kPa) | I2C | 14 b | ±0.25% | 1.8V ~ 3.6V | Male - 0.11" (2.79mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pins | 9.75PSI (67.25kPa) | -40°C ~ 110°C | - | - | Through Hole | 6-DIP |
