Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SP20C-G502 USENSOR 71.16PSIC 0.12" .14V |
0 |
|
Datasheet |
SP | 6-DIP Module | Tape & Reel (TR) | Obsolete | Board Mount | Compound | -14.22PSI ~ 71.16PSI (-98.07kPa ~ 490.33kPa) | Wheatstone Bridge | 60 mV ~ 140 mV | - | - | Male - 0.12" (3mm) Tube | Barbless | - | PC Pin | -42.67PSI ~ 213.35PSI (-294.2kPa ~ 1471kPa) | -20°C ~ 100°C | - | - | Through Hole | - |
|
|
SP20C-G103 USENSOR 142.23PSIC 0.12" .14V |
0 |
|
Datasheet |
SP | 6-DIP Module | Tape & Reel (TR) | Obsolete | Board Mount | Compound | -14.22PSI ~ 142.23PSI (-98.07kPa ~ 980.67kPa) | Wheatstone Bridge | 60 mV ~ 140 mV | - | - | Male - 0.12" (3mm) Tube | Barbless | - | PC Pin | -21.34PSI ~ 213.35PSI (-147.13kPa ~ 1471kPa) | -20°C ~ 100°C | - | - | Through Hole | - |
|
B58601H8000A035SENSOR 23.21PSIG .112V DIE |
0 |
|
Datasheet |
C32 | Die | Bulk | Active | Board Mount | Vented Gauge | 23.21PSI (160kPa) | Wheatstone Bridge | 0 mV ~ 112 mV (5V) | ±2% | 1V ~ 5V | - | No Port | - | SMD (SMT) Tab | 36.26PSI (250kPa) | -40°C ~ 135°C | - | - | - | Die |
|
B58601H8000A036SENSOR 145.04PSIG .12V DIE |
0 |
|
Datasheet |
C32 | Die | Bulk | Active | Board Mount | Vented Gauge | 145.04PSI (1000kPa) | Wheatstone Bridge | 0 mV ~ 120 mV (5V) | ±2% | 1V ~ 5V | - | No Port | - | SMD (SMT) Tab | 36.26PSI (250kPa) | -40°C ~ 135°C | - | - | - | Die |
|
B58600H8000A001PRESSURE SENSOR ELEMENT AEA 1.60 |
0 |
|
Datasheet |
C32 | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
B58600H8000A003SENSOR 580.15PSIA .095V DIE |
0 |
|
Datasheet |
C32 | Die | Bulk | Active | Board Mount | Absolute | 580.15PSI (4000kPa) | Wheatstone Bridge | 6 mV ~ 95 mV (5V) | - | 1V ~ 5V | - | No Port | - | SMD (SMT) Tab | 36.26PSI (250kPa) | -40°C ~ 135°C | - | - | - | Die |
|
|
B58600H8000A004SENSOR 580.15PSIA .095V |
0 |
|
Datasheet |
C32 | Die | Bulk | Active | Board Mount | Absolute | 580.15PSI (4000kPa) | Wheatstone Bridge | 6 mV ~ 95 mV (5V) | - | 1V ~ 5V | - | No Port | - | SMD (SMT) Tab | 36.26PSI (250kPa) | -40°C ~ 135°C | - | - | - | - |
|
|
B58601H8000A034SENSOR 362.59PSIG .12V |
0 |
|
Datasheet |
C32 | Die | Bulk | Active | Board Mount | Vented Gauge | 362.59PSI (2500kPa) | Wheatstone Bridge | 0 mV ~ 120 mV (5V) | ±2% | 1V ~ 5V | - | No Port | - | SMD (SMT) Tab | 36.26PSI (250kPa) | -40°C ~ 135°C | - | - | - | - |
|
B58600H8400A040SENSOR 362.59PSIA .095V |
0 |
|
Datasheet |
C32 | Die | Bulk | Active | Board Mount | Absolute | 362.59PSI (2500kPa) | Wheatstone Bridge | 6 mV ~ 95 mV (5V) | ±2% | 1V ~ 5V | - | No Port | - | SMD (SMT) Tab | 36.26PSI (250kPa) | -40°C ~ 135°C | - | - | - | - |
|
NBPDLNS100PGUNVSENSOR 100PSIG 0.13" .086V |
0 |
|
Datasheet |
NBP | 4-DIP (0.453", 11.50mm), Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 86 mV (5V) | ±0.25% | 1.8V ~ 12V | Male - 0.13" (3.18mm) Tube | Barbless | - | PC Pin | 240PSI (1654.74kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
BPS320-AA100P-4KGSENSOR 100PSIA .15V 8SMD |
0 |
|
Datasheet |
BPS320 | 4-SMD Module | Tape & Reel (TR) | Active | - | Absolute | 100PSI (689.48kPa) | Analog Voltage | 0 mV ~ 150 mV (5V) | ±0.2% | 15V | - | No Port | - | SMD (SMT) Tab | 200PSI (1378.95kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
TBPMANN001PGUCVSENSOR 1PSIG 0.11" .0075V 4SMT |
0 |
|
Datasheet |
TBP | 4-SMD, J-Lead, Top Port | Tray | Obsolete | Board Mount | Vented Gauge | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 7.5 mV (5V) | ±0.2% | 1.5V ~ 12V | Male - 0.11" (2.74mm) Tube | Barbed | Temperature Compensated | SMD (SMT) Tab | 12.7PSI (87.56kPa) | -40°C ~ 125°C | - | - | Surface Mount | 4-SMT |
|

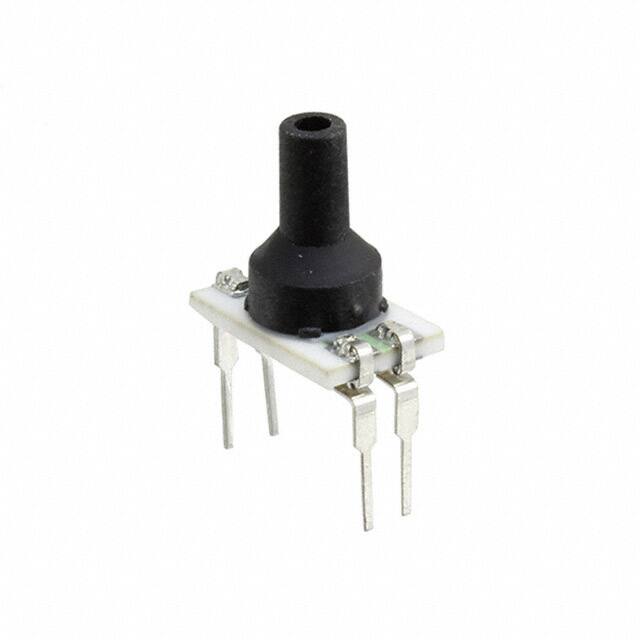

TBPDLNN005PGUCVSENSOR 5PSIG 0.13" .025V 4DIP |
0 |
|
Datasheet |
TBP | 4-DIP (0.453", 11.50mm), Top Port | Tray | Obsolete | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 25 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.13" (3.18mm) Tube | Barbless | Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -40°C ~ 125°C | - | - | Through Hole | 4-DIP |
|
TBPDANN015PGUCVSENSOR 15PSIG 0.08" .02625V 4DIP |
0 |
|
Datasheet |
TBP | 4-DIP (0.453", 11.50mm), Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 26.25 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.08" (2.54mm) Tube | Barbed | Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | Through Hole | 4-DIP |
|
|
TBPDANN030PGUCVSENSOR 30PSIG 0.08" .02625V 4DIP |
0 |
|
- |
TBP | 4-DIP (0.453", 11.50mm), Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 26.25 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.08" (2.54mm) Tube | Barbed | Temperature Compensated | PC Pin | 115PSI (792.9kPa) | -40°C ~ 125°C | - | - | Through Hole | 4-DIP |
|
|
TBPDLNN150PGUCVSENSOR 150PSIG 0.13" .04575V DIP |
0 |
|
- |
TBP | 4-DIP (0.453", 11.50mm), Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 150PSI (1034.21kPa) | Wheatstone Bridge | 0 mV ~ 45.75 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.13" (3.18mm) Tube | Barbless | Temperature Compensated | PC Pin | 245PSI (1689.22kPa) | -40°C ~ 125°C | - | - | Through Hole | 4-DIP |
|
TBPDPNS001PGUCVSENSOR 1PSIG 0.26" .0075V 4DIP |
0 |
|
Datasheet |
TBP | 4-DIP (0.453", 11.50mm), Top Port | Tray | Obsolete | Board Mount | Vented Gauge | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 7.5 mV (5V) | ±0.2% | 1.5V ~ 12V | Male - 0.26" (6.5mm) Tube | Barbless | Temperature Compensated | PC Pin | 12.7PSI (87.56kPa) | -40°C ~ 125°C | - | - | Through Hole | 4-DIP |
|
|
TBPDPNS005PGUCVSENSOR 5PSIG 0.26" .025V 4DIP |
0 |
|
Datasheet |
TBP | 4-DIP (0.453", 11.50mm), Top Port | Tray | Obsolete | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 25 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.26" (6.5mm) Tube | Barbless | Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -40°C ~ 125°C | - | - | Through Hole | 4-DIP |
|
|
NPS3000VVT1DIFF P +/- 0.5KPA |
0 |
|
- |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NPS3005DVT1DIFFP 0 - 5KPA |
0 |
|
- |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
