Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPL3115A2R1SENSOR 15.95PSIA 24BIT 8LGA |
0 |
|
Datasheet |
- | 8-TLGA | Tape & Reel (TR) | Obsolete | Board Mount | Absolute | 7.25PSI ~ 15.95PSI (50kPa ~ 110kPa) | I2C | 24 b | ±0.058PSI (±0.4kPa) | 1.95V ~ 3.6V | - | No Port | Temperature Compensated | SMD (SMT) Tab | 72.52PSI (500kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-LGA (3x5) |
|
TBPMLNN060PGUCVSENSOR 60PSIG 0.13" .0065V 4SMT |
4 |
|
Datasheet |
TBP | 4-SMD, J-Lead, Top Port | Tray | Obsolete | Board Mount | Vented Gauge | 60PSI (413.69kPa) | Wheatstone Bridge | 0 mV ~ 6.5 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.13" (3.18mm) Tube | Barbless | Temperature Compensated | SMD (SMT) Tab | 145PSI (999.74kPa) | -40°C ~ 125°C | - | - | Surface Mount | 4-SMT |
|
NBPLANS150PGUNVSENSOR 150PSIG 0.11" .13V |
0 |
|
Datasheet |
NBP | 6-SMD, No Lead, Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 150PSI (1034.21kPa) | Wheatstone Bridge | 0 mV ~ 130 mV (5V) | ±0.25% | 1.8V ~ 12V | Male - 0.11" (2.74mm) Tube | Barbed | - | SMD (SMT) Tab | 300PSI (2068.43kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
TBPLPNS1.6BGUCVSENSOR 23.21PSIG .04075V 6SMT |
0 |
|
- |
TBP | 6-SMD, No Lead, Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 23.21PSI (160kPa) | Wheatstone Bridge | 0 mV ~ 40.75 mV (5V) | ±0.15% | 1.5V ~ 12V | - | No Port | Temperature Compensated | SMD (SMT) Tab | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Surface Mount | 6-SMT |
|
|
MLX90830LXG-BAH-001-REPRESSURE SENSOR FORMID PRESSURE |
0 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MLX90809LXG-EAD-000-RESENSOR 0.73PSID 4.5V 16SOIC |
0 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) Exposed Pad | Tape & Reel (TR) | Active | Board Mount | Differential | -15.23PSI ~ 0.73PSI (-105kPa ~ 5kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1.5% | 4.5V ~ 5.5V | - | No Port | Amplified Output, Temperature Compensated | Gull Wing | - | -40°C ~ 150°C | - | - | Surface Mount | 16-SOIC |
|
|
MLX90809LXG-EAD-003-RESENSOR 14.5PSID 4.5V 16SOIC |
0 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) Exposed Pad | Tape & Reel (TR) | Active | Board Mount | Differential | 14.5PSI (100kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1.5% | 4.5V ~ 5.5V | - | No Port | Amplified Output, Temperature Compensated | Gull Wing | - | -40°C ~ 150°C | - | - | Surface Mount | 16-SOIC |
|
|
MLX90809LXG-EAD-100-RESENSOR 0.73PSID 12BIT 16SOIC |
0 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) Exposed Pad | Tape & Reel (TR) | Active | Board Mount | Differential | -17.4PSI ~ 0.73PSI (-120kPa ~ 5kPa) | SENT | 12 b | ±1.5% | 4.5V ~ 5.5V | - | No Port | Amplified Output, Temperature Compensated | Gull Wing | - | -40°C ~ 150°C | - | - | Surface Mount | 16-SOIC |
|
2SMPB-01-01SENSOR 15.95PSIA 24BIT 8QFN |
0 |
|
Datasheet |
- | 8-VQFN | Bulk | Obsolete | Board Mount | Absolute | 4.35PSI ~ 15.95PSI (30kPa ~ 110kPa) | I2C | 24 b | ±0.011PSI (±0.075kPa) | 2.25V ~ 3.6V | - | No Port | Temperature Compensated | SMD (SMT) Tab | 23.21PSI (160kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-QFN (3.8x3.8) |
|
|
TBPLANS060MGUCVSENSOR 0.87PSIG 0.08" .0065V SMT |
0 |
|
Datasheet |
TBP | 6-SMD, No Lead, Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 0.87PSI (6kPa) | Wheatstone Bridge | 0 mV ~ 6.5 mV (5V) | ±0.2% | 1.5V ~ 12V | Male - 0.08" (2.54mm) Tube | Barbed | Temperature Compensated | SMD (SMT) Tab | 12.65PSI (87.2kPa) | -40°C ~ 125°C | - | - | Surface Mount | 6-SMT |
|
|
MLX90830LXG-BAF-002-REPRESSURE SENSOR FORMID PRESSURE |
0 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MS561101BA03-00SENSOR 17.4PSIA 24BIT 8SMD |
0 |
|
Datasheet |
- | 8-SMD | Tray | Obsolete | Board Mount | Absolute | 0.15PSI ~ 17.4PSI (1kPa ~ 120kPa) | I2C, SPI | 24 b | ±0.022PSI (±0.15kPa) | 1.8V ~ 3.6V | - | No Port | - | SMD (SMT) Tab | 87.02PSI (600kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
|
KP123XTMA1SENSOR 16.68PSIA 4.85V DSOF8 |
0 |
|
Datasheet |
- | 8-SMD Module | Tape & Reel (TR) | Obsolete | Board Mount | Absolute | 2.18PSI ~ 16.68PSI (15kPa ~ 115kPa) | Analog Voltage | 0.1 V ~ 4.85 V | ±1.5% | 4.5V ~ 5.5V | - | No Port | Amplified Output, Temperature Compensated | SMD (SMT) Tab | - | -20°C ~ 100°C | - | - | Surface Mount | - |
|
MPXM2053DT1SENSOR 7.25PSID .04V 5MPAK |
0 |
|
Datasheet |
MPXM2053 | 5-SMD Module | Tape & Reel (TR) | Active | Board Mount | Differential | 7.25PSI (50kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | -0.6% ~ 0.4% | 10V ~ 16V | - | No Port | Temperature Compensated | Gull Wing | 29.01PSI (200kPa) | -40°C ~ 125°C | - | - | Surface Mount | 5-MPAK |
|
BPS320-AA500P-4MGSENSOR 500PSIA .175V 4SMD |
0 |
|
Datasheet |
BPS320 | 4-SMD Module | Tape & Reel (TR) | Active | - | Absolute | 500PSI (3447.38kPa) | Analog Voltage | 0 mV ~ 175 mV (5V) | ±0.2% | 15V | - | No Port | - | SMD (SMT) Tab | 1000PSI (6894.76kPa) | -40°C ~ 85°C | - | - | Surface Mount | 4-SMD |
|
|
BPS320-AG015P-4CGSENSOR 15PSIG .075V 8SMD |
0 |
|
Datasheet |
BPS320 | 4-SMD Module | Tape & Reel (TR) | Active | - | Gauge | 15PSI (103.42kPa) | Analog Voltage | 0 mV ~ 75 mV (5V) | ±0.2% | 15V | - | No Port | - | SMD (SMT) Tab | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|

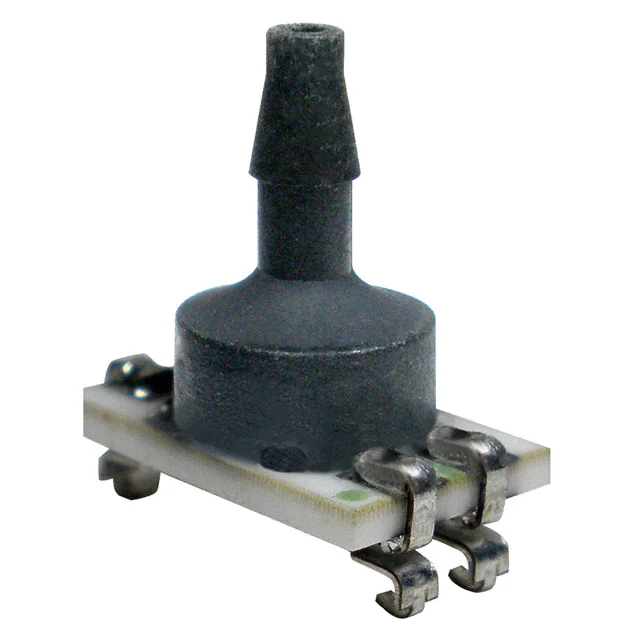

NBPMANN150PGUNVSENSOR 150PSIG 0.11" .13V |
0 |
|
Datasheet |
NBP | 4-SMD, J-Lead, Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 150PSI (1034.21kPa) | Wheatstone Bridge | 0 mV ~ 130 mV (5V) | ±0.25% | 1.8V ~ 12V | Male - 0.11" (2.74mm) Tube | Barbed | - | J Lead | 240PSI (1654.74kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
NBPDLNN015PGUNVSENSOR 15PSIG 0.13" .075V |
0 |
|
Datasheet |
NBP | 4-DIP (0.453", 11.50mm), Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 75 mV (5V) | ±0.25% | 1.8V ~ 12V | Male - 0.13" (3.18mm) Tube | Barbless | - | PC Pin | 30PSI (206.84kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
NBPDLNN030PAUNVSENSOR 30PSIA 0.13" .105V |
0 |
|
Datasheet |
NBP | 4-DIP (0.453", 11.50mm), Top Port | Bulk | Obsolete | Board Mount | Absolute | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 105 mV (5V) | ±0.25% | 1.8V ~ 12V | Male - 0.13" (3.18mm) Tube | Barbless | - | PC Pin | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
NBPMANN005PGUNVSENSOR 5PSIG 0.11" .075V |
0 |
|
Datasheet |
NBP | 4-SMD, J-Lead, Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 75 mV (5V) | ±0.25% | 1.8V ~ 12V | Male - 0.11" (2.74mm) Tube | Barbed | - | J Lead | 30PSI (206.84kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
