Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPXHZ6115AC6T1SENSOR 16.68PSIA 0.13" 4.7V SSOP |
0 |
|
Datasheet |
MPXHZ6115A | 8-SOIC (0.335", 8.50mm Width), Top Port | Tape & Reel (TR) | Active | Board Mount | Absolute | 2.18PSI ~ 16.68PSI (15kPa ~ 115kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±1.5% | 4.75V ~ 5.25V | Male - 0.13" (3.3mm) Tube | Barbless | Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SSOP |
|
MPXV5100GPSENSOR 14.5PSIG 0.13" 4.7V 8SOP |
0 |
|
Datasheet |
MPXV5100 | 8-SMD, Gull Wing, Side Port | Tray | Active | Board Mount | Vented Gauge | 14.5PSI (100kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±2.5% | 4.75V ~ 5.25V | Male - 0.13" (3.17mm) Tube | Barbless | Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SOP |
|
MPX5010DPSENSOR 1.45PSID 0.19" 4.7V |
0 |
|
Datasheet |
MPX5010 | 6-SIP Module | Tray | Active | Board Mount | Differential | 1.45PSI (10kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±5% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 5.8PSI (40kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
MPXV7007GPSENSOR 1.02PSIC 0.13" 4.5V 8SOP |
0 |
|
Datasheet |
MPXV7007 | 8-SMD, Gull Wing, Side Port | Tray | Active | Board Mount | Compound | ±1.02PSI (±7kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±5% | 4.75V ~ 5.25V | Male - 0.13" (3.17mm) Tube | Barbed | Temperature Compensated | Gull Wing | ±10.88PSI (±75kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SOP |
|
SDP816-500PASENSOR 0.07PSID 0.2" 4.5V |
0 |
|
Datasheet |
SDP800 | Module | Tray | Active | Board Mount | Differential | -0.07PSI ~ 0.07PSI (-0.5kPa ~ 0.5kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±3% | 3V ~ 5.5V | Male - 0.2" (5.2mm) Tube, Dual | Barbed | Temperature Compensated | - | 14.5PSI (100kPa) | -20°C ~ 85°C | - | - | - | - |
|
BLVR-L05D-B1NS-NSENSOR 0.18PSID 0.08" .024V 4SIP |
0 |
|
Datasheet |
BLVR | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.18PSI (±1.25kPa) | Wheatstone Bridge | 0 mV ~ 24 mV (3.3V) | ±2% | 6V | Male - 0.08" (2.04mm) Tube, Dual | Barbless | - | PC Pin | ±7.23PSI (±49.83kPa) | -25°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
MIPAN2XX500PSAAXSENSOR 500PSIS 1/8"NPT 4.5V |
0 |
|
Datasheet |
MIP | Cylinder, Threaded | Bulk | Active | - | Sealed Gauge | 500PSI (3447.38kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.15% | 4.75V ~ 5.25V | Male - 1/8" (3.18mm) NPT | Threaded | Temperature Compensated | Connector | 1740.45PSI (12000kPa) | -40°C ~ 125°C | - | - | - | - |
|
NPI-19A-200GVSENSOR 200PSIG 0.1V |
0 |
|
Datasheet |
NPI-19 | Cylinder | Bulk | Active | Board Mount | Vented Gauge | 200PSI (1378.95kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.5% | 10V | - | No Port | Temperature Compensated | Flex Cable | 400PSI (2757.9kPa) | -40°C ~ 125°C | - | - | - | - |
|
4525-DS5A001DPSENSOR 1PSID 0.14" 4.5V |
0 |
|
Datasheet |
MS4525 | 8-DIP Module | Tray | Active | Board Mount | Differential | 1PSI (6.89kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 5V | Male - 0.14" (3.56mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | 20PSI (137.9kPa) | -25°C ~ 105°C | - | - | Through Hole | - |
|
5 INCH-D-MVSENSOR 0.18PSID 0.19" .02V |
0 |
|
Datasheet |
ADCX | 6-SIP Module | Tube | Active | Board Mount | Differential | 0.18PSI (1.25kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±0.25% | 16V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 7.23PSI (49.83kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
86-050A-RSENSOR 50PSIA 0.1V |
0 |
|
Datasheet |
- | Cylinder | Tube | Active | Board Mount | Absolute | 50PSI (344.74kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 150PSI (1034.21kPa) | -40°C ~ 125°C | - | - | - | - |
|
86BSD150PG-3AICSENSOR 150PSIG 14BIT |
0 |
|
Datasheet |
- | - | Tube | Active | - | Gauge | 150PSI (1034.21kPa) | I2C | 14 b | ±1% | 2.7V ~ 5.5V | - | No Port | Temperature Compensated | - | 300PSI (2068.43kPa) | -40°C ~ 125°C | - | - | - | - |
|
IPT0020A33RSENSOR 20PSIA 0.26" 24BIT |
0 |
|
Datasheet |
- | Module | Bulk | Active | Board Mount | Absolute | 20PSI (137.9kPa) | SPI | 24 b | ±0.04% | 4V ~ 12V | Male - 0.26" (6.71mm) Tube | Barbless | Temperature Compensated | Connector | 60PSI (413.69kPa) | -40°C ~ 85°C | - | - | - | - |
|
|
PSA071040PRESSURE SENSOR 40KPA 5VDC |
0 |
|
Datasheet |
PSA | 6-SMD, Gull Wing, Top Port | Bag | Active | Board Mount | Gauge | -5.8PSI ~ 5.8PSI (-40kPa ~ 40kPa) | Analog Voltage | 0 mV ~ 135 mV | ±0.3% | 4.7V ~ 10V | Male - 0.12" (3mm) Tube | Barbless | - | Gull Wing | 58.02PSI (400kPa) | -20°C ~ 85°C | - | - | Surface Mount | 6-SMD |
|
MPX2202GPSENSOR 29.01PSIG 0.19" .04V |
0 |
|
Datasheet |
MPX2202 | 4-SIP Module | Tray | Active | Board Mount | Vented Gauge | 29.01PSI (200kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | - | 10V ~ 16V | Male - 0.19" (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
MPX2202DPSENSOR 29.01PSID 0.19" .04V |
0 |
|
Datasheet |
MPX2202 | 4-SIP Module | Tray | Active | Board Mount | Differential | 29.01PSI (200kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | - | 10V ~ 16V | Male - 0.19" (4.93mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
ABP2LANT150PG2A3XXSENSOR 150PSIG 0.11" 14BIT 6SMT |
2 |
|
- |
ABP2 | 6-SMD, No Lead, Top Port | Bulk | Active | - | Vented Gauge | 150PSI (1034.21kPa) | I2C | 14 b | ±0.25% | 1.8V ~ 3.6V | Male - 0.11" (2.74mm) Tube | Barbed | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 250PSI (1723.69kPa) | -40°C ~ 110°C | - | - | Surface Mount | 6-SMT |
|

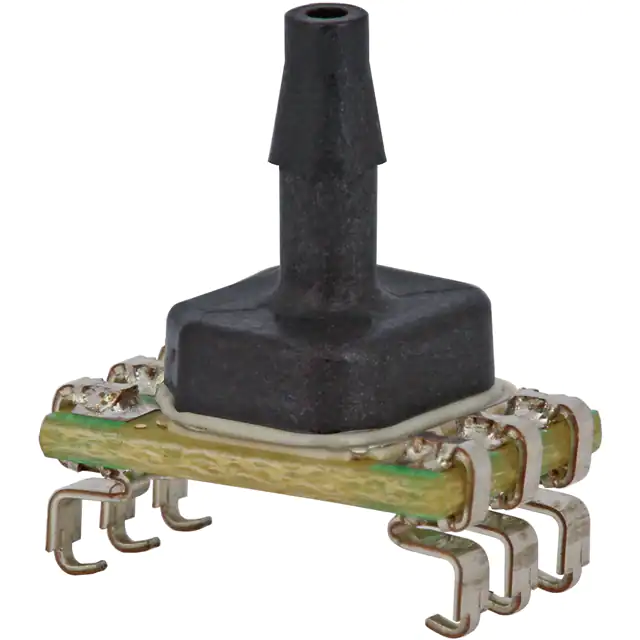

ABP2MANT001BGAA5XXSENSOR 14.5PSIG 0.108" 4.5V 6SMD |
3 |
|
- |
ABP2 | 6-SMD, J-Lead, Top Port | Box | Active | - | Gauge | 14.5PSI (100kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.108" (2.74mm) Tube | Barbed | Amplified Output, Temperature Compensated | J Lead | 232.06PSI (1600kPa) | -40°C ~ 110°C | - | - | Surface Mount | 6-SMD |
|
P-2000-352G-15-BNSENSOR 49.75PSIG 0.13" .09V 6DIP |
0 |
|
Datasheet |
P-2000 | 6-DIP (0.472", 12.00mm), Top Port | Bulk | Active | Board Mount | Gauge | 49.75PSI (343kPa) | Analog Voltage | 0 mV ~ 90 mV | ±0.15% | - | Male - 0.13" (3.2mm) Tube | Barbless | Temperature Compensated | PC Pin | 99.5PSI (686kPa) | -20°C ~ 80°C | - | - | Through Hole | 6-DIP |
|
ABP2MANT010BAAA5XXSENS 145.04PSIA 0.108" 4.5V SMD |
0 |
|
- |
ABP2 | 6-SMD, J-Lead, Top Port | Box | Active | - | Absolute | 145.04PSI (1000kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.108" (2.74mm) Tube | Barbed | Amplified Output, Temperature Compensated | J Lead | 232.06PSI (1600kPa) | -40°C ~ 110°C | - | - | Surface Mount | 6-SMD |
Pressure Sensors, Transducers Electronic Components
Explore Pressure Sensors, Transducers electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
