Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADJ35012RELAY GEN PURPOSE SPST 16A 12V |
0 |
|
Datasheet |
ADJ | Box | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 16 A | 250VAC - Max | 4000VA | 20.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 9 VDC | 1.2 VDC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
ADJ35024RELAY GEN PURPOSE SPST 16A 24V |
0 |
|
Datasheet |
ADJ | Box | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 16 A | 250VAC - Max | 4000VA | 10.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 18 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
ADJ36005RELAY GEN PURPOSE SPST 16A 5V |
0 |
|
Datasheet |
ADJ | Box | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 16 A | 250VAC - Max | 4000VA | 50 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
ADJ36006RELAY GEN PURPOSE SPST 16A 6V |
0 |
|
Datasheet |
ADJ | Box | Active | Through Hole | 6VDC | SPST-NC (1 Form B) | 16 A | 250VAC - Max | 4000VA | 41.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.5 VDC | 0.6 VDC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
ADJ36012RELAY GEN PURPOSE SPST 16A 12V |
0 |
|
Datasheet |
ADJ | Box | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 16 A | 250VAC - Max | 4000VA | 20.8 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
ADJ36024RELAY GEN PURPOSE SPST 16A 24V |
0 |
|
Datasheet |
ADJ | Box | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 16 A | 250VAC - Max | 4000VA | 10.4 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
15500.2RELAY GEN PURPOSE SPDT 6A 5V |
0 |
|
Datasheet |
PRC | Box | Active | Socketable | 5VDC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | 34 mA | Non Latching | - | Plug In | - | - | 3.5 VDC | 0.25 VDC | 12 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
15502.2RELAY GEN PURPOSE SPDT 6A 24V |
0 |
|
Datasheet |
PRC | Box | Active | Socketable | 24VDC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | 7.1 mA | Non Latching | - | Plug In | - | - | 16.8 VDC | 1.2 VDC | 12 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
2765010000RELAY GEN PURPOSE DPDT 10A 12V |
0 |
|
Datasheet |
DRR | Bulk | Active | Socketable | 12VDC | DPDT (2 Form C) | 10 A | 250VAC, 24VDC - Max | 2500VA, 240W | 125 mA | Non Latching | Lighted Indicator, Mechanical Indicator | Plug In, 8 Pin (Octal) | - | - | - | - | 30 ms | 20 ms | -25°C ~ 55°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ2700-1A-220ATWFRELAY GEN PURPOSE SPST 30A 220V |
0 |
|
Datasheet |
AZ2700 | Box | Active | Chassis Mount | 220VAC | SPST-NO (1 Form A) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 10 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 176 VAC | 33 VAC | 30 ms | 30 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
PC730-2C-C1-208ARELAY GEN PURPOSE DPDT 30A 208V |
0 |
|
Datasheet |
PC730 | Bag | Active | Chassis Mount | 208VAC | DPDT (2 Form C) | 30 A | 330VAC, 36VDC - Max | 9900VA, 1080W | 57.4 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 166 VAC | 62 VAC | 25 ms | 15 ms | -25°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
PC730-2C-C1-24ARELAY GEN PURPOSE DPDT 30A 24V |
0 |
|
Datasheet |
PC730 | Bag | Active | Chassis Mount | 24VAC | DPDT (2 Form C) | 30 A | 330VAC, 36VDC - Max | 9900VA, 1080W | 500 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 19 VAC | 7 VAC | 25 ms | 15 ms | -25°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
PC730-2C-C1-120ARELAY GEN PURPOSE DPDT 30A 120V |
0 |
|
Datasheet |
PC730 | Bag | Active | Chassis Mount | 120VAC | DPDT (2 Form C) | 30 A | 330VAC, 36VDC - Max | 9900VA, 1080W | 99.5 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 96 VAC | 36 VAC | 25 ms | 15 ms | -25°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
1415066-1RELAY GEN PURPOSE 4PDT 6A |
0 |
|
Datasheet |
PT, SCHRACK | Bulk | Active | Socketable | - | 4PDT (4 Form C) | 6 A | 240VAC - Max | 1440VA | - | Non Latching | Diode, Lighted Indicator, Mechanical Indicator | Plug In | - | Class F | - | - | 15 ms | 10 ms | -40° ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
LY2I4-DC24RELAY GEN PURPOSE DPDT 10A 24V |
0 |
|
Datasheet |
LY | Bulk | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 36.9 mA | Non Latching | Test Button | Plug In | - | - | 19.2 VDC | 2.4 VDC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|
ADJH24124RELAY GEN PURPOSE SPST 50A 24V |
0 |
|
Datasheet |
ADJH | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 50 A | 480VAC - Max | 24000VA | 83.3 mA | Latching, Dual Coil | Test Button | PC Pin | Sealed - Flux Protection | Class F | 18 VDC | - | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
.JPG)
|
MY2 AC100/110 (S)RELAY GEN PURPOSE DPDT 5A 110V |
0 |
|
Datasheet |
MY | Bulk | Obsolete | Socketable | 110VAC | DPDT (2 Form C) | 5 A | 250VAC, 125VDC - Max | 1250VA, 625W | 29.3 mA | Non Latching | - | Plug In | - | - | 88 VAC | 33 VAC | 20 ms | 20 ms | -55°C ~ 70°C | Silver (Ag) | General Purpose | - | - |
|

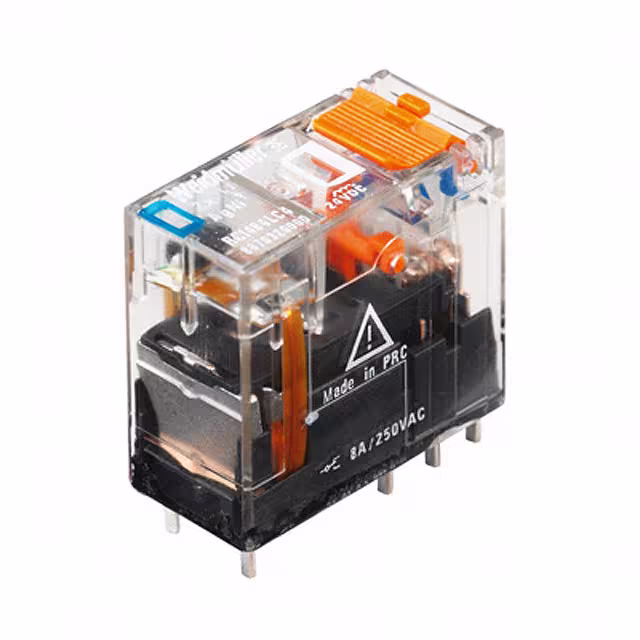

8869950000RELAY GEN PURPOSE SPDT 16A 12V |
0 |
|
Datasheet |
RCI | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 250VAC - Max | 4000VA | 33.3 mA | Non Latching | Test Button | PC Pin | - | - | 8.4 VDC | 1.2 VDC | 8 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
8869910000RELAY GEN PURPOSE DPDT 8A 110V |
0 |
|
Datasheet |
RCI | Bulk | Active | Through Hole | 110VDC | DPDT (2 Form C) | 8 A | 250VAC - Max | 2000VA | 4.1 mA | Non Latching | - | PC Pin | - | - | 77 VDC | 11 VDC | 10 ms | 4 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
RJ2S-C-D48RELAY PLUG-IN DPDT 8A 48VDC |
0 |
|
- |
RJ | Bulk | Active | Socketable | 48VDC | DPDT (2 Form C) | 8 A | 250VAC, 30VDC - Nom | - | 11 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 33.6 VDC | 4.8 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
