Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADJ15012RELAY GEN PURPOSE SPDT 16A 12V |
0 |
|
Datasheet |
ADJ | Box | Active | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 250VAC - Max | 4000VA | 20.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 9 VDC | 1.2 VDC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
PT370548RELAY GEN PURPOSE 3PDT 10A 48V |
0 |
|
Datasheet |
PT, SCHRACK | Bulk | Obsolete | Socketable | 48VAC | 3PDT (3 Form C) | 10 A | 400VAC - Max | 4000VA | 61.8 mA | Non Latching | Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.110" (2.8mm) | - | Class F | 38.4 VAC | 14.4 VAC | - | - | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
RV2H-2G-D18LOW PROFILE 14MM 2C RELAY 18V |
0 |
|
- |
RV2 | Bulk | Active | Through Hole | 18VDC | DPDT (2 Form C) | 8 A | 250VAC - Nom | - | - | Non Latching | - | PC Pin | - | - | 14.4 VDC | 1.26 VDC | 15 ms | 15 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
RV2H-2G-D24LOW PROFILE 14MM 2C RELAY 24V |
0 |
|
- |
RV2 | Bulk | Active | Through Hole | 24VDC | DPDT (2 Form C) | 8 A | 250VAC - Nom | - | - | Non Latching | - | PC Pin | - | - | 19.2 VDC | 1.68 VDC | 15 ms | 15 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
DE1A-L-6VRELAY GEN PURPOSE SPST 10A 6V |
0 |
|
Datasheet |
DE | Tube | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 16.7 mA | Latching, Single Coil | - | PC Pin | - | - | 4.2 VDC | - | 10 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
DE1A-L-9VRELAY GEN PURPOSE SPST 10A 9V |
0 |
|
Datasheet |
DE | Tube | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 11.1 mA | Latching, Single Coil | - | PC Pin | - | - | 6.3 VDC | - | 10 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ2701-2A-110DTWFRELAY GEN PURPOSE DPST 30A 110V |
0 |
|
Datasheet |
AZ2701 | Box | Active | Chassis Mount | 110VDC | DPST-NO (2 Form A) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 17.5 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | Class F | 82.5 VDC | 5.5 VDC | 30 ms | 30 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
RRM002D12VRELAY GEN PURPOSE DPDT 10A 12V |
3 |
|
Datasheet |
RRM | Bulk | Obsolete | Socketable | 12VDC | DPDT (2 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 75 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
RRM002D5VRELAY GEN PURPOSE DPDT 10A 5V |
1 |
|
Datasheet |
RRM | Bulk | Obsolete | Socketable | 5VDC | DPDT (2 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 178 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In | - | - | 4 VDC | 0.5 VDC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

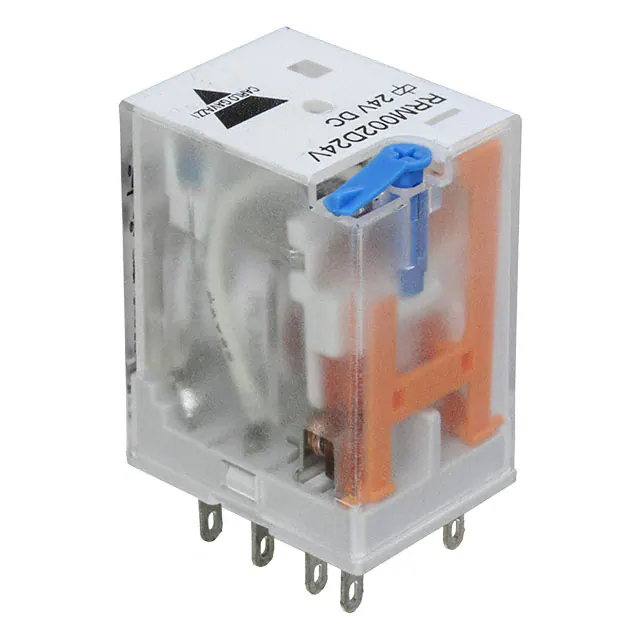

RRM002D24VRELAY GEN PURPOSE DPDT 10A 24V |
0 |
|
Datasheet |
RRM | Bulk | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 36.9 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ2701-2A-110DTFRELAY GEN PURPOSE DPST 30A 110V |
0 |
|
Datasheet |
AZ2701 | Box | Active | Chassis Mount | 110VDC | DPST-NO (2 Form A) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 17.5 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | Class F | 82.5 VDC | 5.5 VDC | 30 ms | 30 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ2700-2A-6ATWFRELAY GEN PURPOSE DPST 30A 6V |
0 |
|
Datasheet |
AZ2700 | Box | Active | Chassis Mount | 6VAC | DPST-NO (2 Form A) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 319 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 4.8 VAC | 0.9 VAC | 30 ms | 30 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
RJ1V-C-A120RELAY PCB SPDT 12A 120VAC |
0 |
|
- |
RJ | Bulk | Active | Through Hole | 120VAC | SPDT (1 Form C) | 12 A | 250VAC, 125VDC - Nom | - | 7.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 96 VAC | 36 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
AZ2700-2A-24ATWFRELAY GEN PURPOSE DPST 30A 24V |
0 |
|
Datasheet |
AZ2700 | Box | Active | Chassis Mount | 24VAC | DPST-NO (2 Form A) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 80 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 19.2 VAC | 3.6 VAC | 30 ms | 30 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ2700-1A-220AWRELAY GEN PURPOSE SPST 30A 220V |
0 |
|
Datasheet |
AZ2700 | Box | Active | Chassis Mount | 220VAC | SPST-NO (1 Form A) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 10 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 176 VAC | 33 VAC | 30 ms | 30 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
HJ4-L-T-AC120VRELAY GEN PURPOSE 4PDT 5A 120V |
0 |
|
Datasheet |
HJ | Bulk | Active | Socketable | 120VAC | 4PDT (4 Form C) | 5 A | 250VAC, 125VDC - Max | 1250VA, 625W | 9.1 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 96 VAC | 36 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver (Ag) | General Purpose | - | - |
|
APF30218RELAY GEN PURPOSE SPDT 6A 18V |
0 |
|
Datasheet |
APF | Tube | Active | Through Hole | 18VDC | SPDT (1 Form C) | 6 A | 250VAC - Max | - | 9.4 mA | Non Latching | - | PC Pin | - | - | 12.6 VDC | 0.9 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
AZ2700-2A-48ARELAY GEN PURPOSE DPST 30A 48V |
0 |
|
Datasheet |
AZ2700 | Box | Active | Chassis Mount | 48VAC | DPST-NO (2 Form A) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 40 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 38.4 VAC | 7.2 VAC | 30 ms | 30 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
AZ2701-2A-12DTWFRELAY GEN PURPOSE DPST 30A 12V |
0 |
|
Datasheet |
AZ2701 | Box | Active | Chassis Mount | 12VDC | DPST-NO (2 Form A) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 160 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | Class F | 9 VDC | 0.6 VDC | 30 ms | 30 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
55.32.9.012.0000RELAY GEN PURPOSE DPDT 10A 12V |
0 |
|
Datasheet |
55 | Bulk | Active | Socketable | 12VDC | DPDT (2 Form C) | 10 A | 400VAC - Max | 4000VA | 86 mA | Non Latching | - | Plug In | - | - | 9.6 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
Power Relays, Over 2 Amps Electronic Components
Frequently Asked Questions
Q1: What products are included in Power Relays, Over 2 Amps?
This category includes related Power Relays, Over 2 Amps subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Power Relays, Over 2 Amps components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Power Relays, Over 2 Amps and other electronic components.
