Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

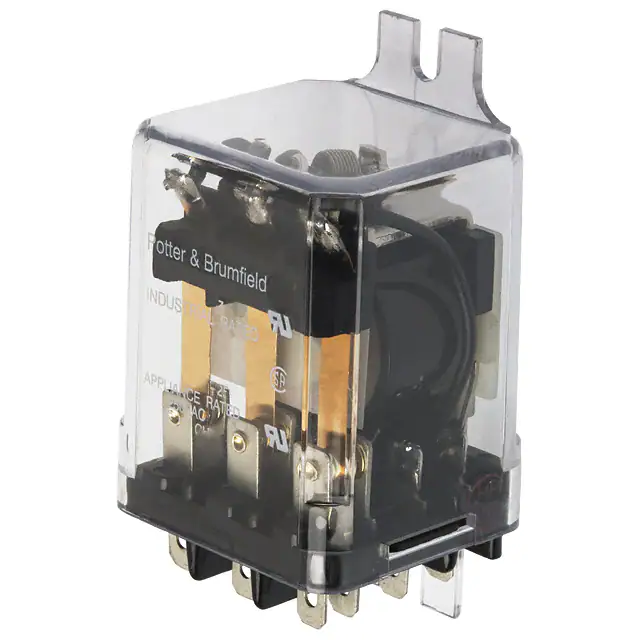

KUP-14D55-24RELAY GEN PURPOSE 3PDT 10A 24V |
224 |
|
Datasheet |
KUP | Bulk | Active | Chassis Mount | 24VDC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 51 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 18 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
KUP-14D15-110RELAY GEN PURPOSE 3PDT 10A 110V |
150 |
|
Datasheet |
KUP | Bulk | Active | Socketable | 110VDC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 11 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 82.5 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
T92P11A22-24RELAY GEN PURPOSE DPDT 30A 24V |
184 |
|
Datasheet |
T92 | Bulk | Active | Chassis Mount | 24VAC | DPDT (2 Form C) | 30 A | 600VAC - Max | 18000VA | 167 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 19.2 VAC | 2.4 VAC | 15 ms | 15 ms | -55°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
T92S11A22-24RELAY GEN PURPOSE DPDT 30A 24V |
319 |
|
Datasheet |
T92 | Bulk | Active | Chassis Mount | 24VAC | DPDT (2 Form C) | 30 A | 600VAC - Max | 18000VA | 167 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 19.2 VAC | 2.4 VAC | 15 ms | 15 ms | -55°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
T92P11A22-12RELAY GEN PURPOSE DPDT 30A 12V |
110 |
|
Datasheet |
T92 | Bulk | Active | Chassis Mount | 12VAC | DPDT (2 Form C) | 30 A | 600VAC - Max | 18000VA | 333 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 9.6 VAC | 1.2 VAC | 15 ms | 15 ms | -55°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
T92S11A12-120RELAY GEN PURPOSE DPDT 30A 120V |
164 |
|
Datasheet |
T92 | Bulk | Active | Through Hole | 120VAC | DPDT (2 Form C) | 30 A | 600VAC - Max | 18000VA | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 96 VAC | 12 VAC | 15 ms | 15 ms | -55°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
KHAU-17A11-120RELAY GEN PURPOSE 4PDT 3A 120V |
230 |
|
Datasheet |
KHA | Bulk | Active | Socketable | 120VAC | 4PDT (4 Form C) | 3 A | 240VAC - Nom | - | 11 mA | Non Latching | - | Plug In | - | Class B | 102 VAC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver (Ag) | General Purpose | - | - |
|
|
T92S11A22-240RELAY GEN PURPOSE DPDT 30A 240V |
203 |
|
Datasheet |
T92 | Bulk | Active | Chassis Mount | 240VAC | DPDT (2 Form C) | 30 A | 600VAC - Max | 18000VA | 16.7 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 192 VAC | 24 VAC | 15 ms | 15 ms | -55°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
T92S11A22-208RELAY GEN PURPOSE DPDT 30A 208V |
194 |
|
Datasheet |
T92 | Bulk | Active | Chassis Mount | 208VAC | DPDT (2 Form C) | 30 A | 600VAC - Max | 18000VA | 19.2 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 166.4 VAC | 20.8 VAC | 15 ms | 15 ms | -55°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
KHAU-17A12-120RELAY GEN PURPOSE 4PDT 5A 120V |
158 |
|
Datasheet |
KHA | Tray | Active | Socketable | 120VAC | 4PDT (4 Form C) | 5 A | 240VAC - Nom | - | 11 mA | Non Latching | - | Plug In | - | Class B | 102 VAC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
KUP-14D15-48RELAY GEN PURPOSE 3PDT 10A 48V |
222 |
|
Datasheet |
KUP | Bulk | Active | Socketable | 48VDC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 26.7 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 36 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
KUHP-11D51-24RELAY GEN PURPOSE DPDT 20A 24V |
824 |
|
Datasheet |
KUHP | Bulk | Active | Chassis Mount | 24VDC | DPDT (2 Form C) | 20 A | 240VAC - Max | 4800VA | 51 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 18 VDC | - | 20 ms | 20 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
RV8H-2L-D24-C1D2RELAY GEN PURPOSE DPDT 8A 24V |
175 |
|
Datasheet |
RV8 | Bulk | Active | DIN Rail | 24VDC | DPDT (2 Form C) | 8 A | 250VAC - Nom | - | 20 mA | Non Latching | Socket Included | Screw Terminal | - | - | 19.2 VDC | 1.68 VDC | 15 ms | 15 ms | -40°C ~ 55°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
KUP-14A15-240RELAY GEN PURPOSE 3PDT 10A 240V |
108 |
|
Datasheet |
KUP | Bulk | Active | Socketable | 240VAC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 12 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 204 VAC | - | 15 ms | 10 ms | -45°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
KUP-14A55-24RELAY GEN PURPOSE 3PDT 10A 24V |
166 |
|
Datasheet |
KUP | Bulk | Active | Chassis Mount | 24VAC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 115 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 20.4 VAC | - | 15 ms | 10 ms | -45°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
KRPA-11AG-24RELAY GEN PURPOSE DPDT 10A 24V |
164 |
|
Datasheet |
KRPA | Tray | Active | Socketable | 24VAC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 84 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | Class B | 20.4 VAC | - | - | - | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
MJN2C-DC12RELAY GEN PURPOSE DPDT 10A 12V |
108 |
|
Datasheet |
MJN | Bulk | Active | Socketable | 12VDC | DPDT (2 Form C) | 10 A | 600VAC, 28VDC - Max | 6000VA, 280W | 100 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 9 VDC | - | 20 ms | 10 ms | -45°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
T92P7A52-120RELAY GEN PURPOSE DPST 30A 120V |
673 |
|
Datasheet |
T92 | Bulk | Active | Chassis Mount | 120VAC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 33.3 mA | Non Latching | - | Screw Terminal | - | Class F | 96 VAC | 12 VAC | 15 ms | 15 ms | -55°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
KRPA-11DN-24RELAY GEN PURPOSE DPDT 10A 24V |
178 |
|
Datasheet |
KRPA | Tray | Active | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 51 mA | Non Latching | Lighted Indicator | Plug In, 8 Pin (Octal) | - | Class B | 18 VDC | - | - | - | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
KRPA-11DN-12RELAY GEN PURPOSE DPDT 10A 12V |
123 |
|
Datasheet |
KRPA | Tray | Active | Socketable | 12VDC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 100 mA | Non Latching | Lighted Indicator | Plug In, 8 Pin (Octal) | - | Class B | 9 VDC | - | - | - | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
