Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

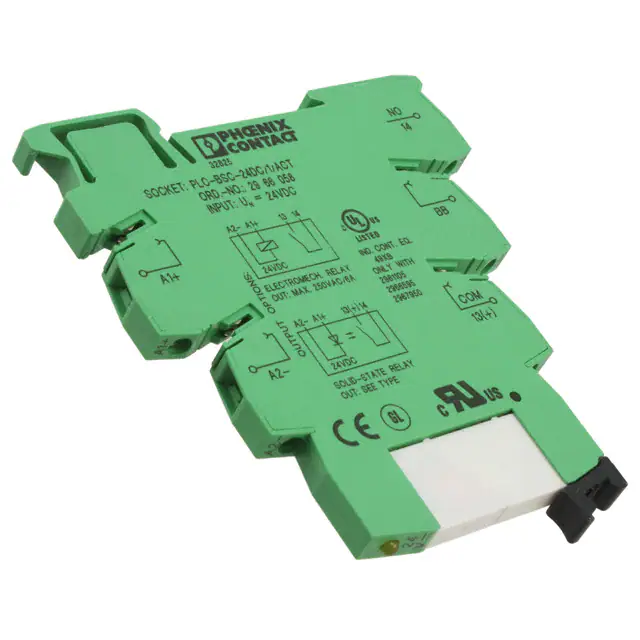

2966210RELAY GEN PURPOSE SPST 6A 24V |
133 |
|
Datasheet |
PLC-RSC | Bulk | Active | DIN Rail | 24VDC | SPST-NO (1 Form A) | 6 A | 250VAC, 250VDC - Max | - | 9 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 5 ms | 8 ms | -25°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
T92P7D12-12RELAY GEN PURPOSE DPST 30A 12V |
1,774 |
|
Datasheet |
T92 | Bulk | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 140 mA | Non Latching | - | PC Pin | - | Class F | 9 VDC | 1.2 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
MY2N-D2-GS-R DC24RELAY GEN PURPOSE DPDT 5A 24V |
419 |
|
Datasheet |
MY | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 7 A | 250VAC, 220VDC - Max | 1750VA, 1540W | 36.3 mA | Non Latching | Diode, Lighted Indicator, Mechanical Indicator | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 70°C | Silver (Ag) | General Purpose | - | - |
|
T92S7D22-18RELAY GEN PURPOSE DPST 30A 18V |
1,256 |
|
Datasheet |
T92 | Bulk | Active | Chassis Mount | 18VDC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 94.4 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 13.5 VDC | 1.8 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
NC4D-P-DC12VRELAY GEN PURPOSE 4PDT 5A 12V |
189 |
|
Datasheet |
NC | Tray | Active | Through Hole | 12VDC | 4PDT (4 Form C) | 5 A | 250VAC - Max | 1250VA | 60 mA | Non Latching | - | PC Pin | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 10 ms | -40°C ~ 55°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
T92S7D14-24RELAY GEN PURPOSE DPST 30A 24V |
1,372 |
|
Datasheet |
T92 | Bulk | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 70.8 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | General Purpose | - | - |
|

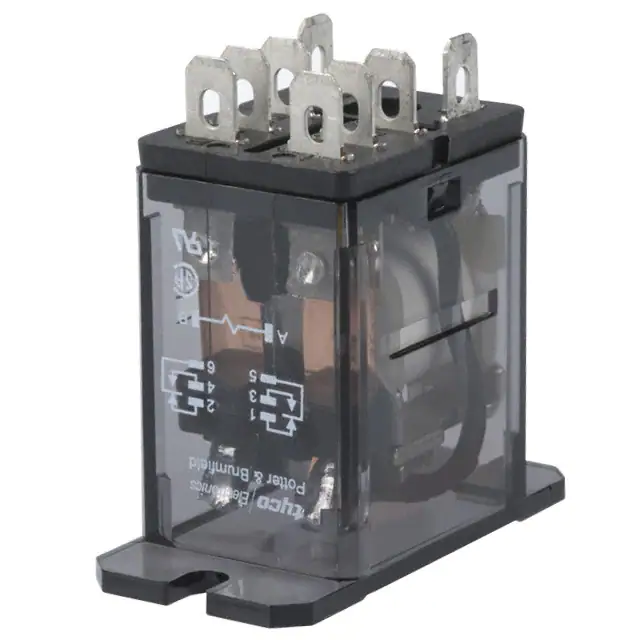

K10P-11DT5-12RELAY GEN PURPOSE DPDT 15A 12V |
746 |
|
Datasheet |
K10 | Bulk | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 15 A | 120VAC - Nom | - | 75 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 9 VDC | 1.2 VDC | 13 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
HE2AN-SW-DC24VRELAY GEN PURPOSE DPST 25A 24V |
179 |
|
Datasheet |
HE | Tube | Active | Chassis Mount | 24VDC | DPST-NO (2 Form A) | 25 A | 277VAC, 30VDC - Max | 6925VA, 750W | 80 mA | Non Latching | - | Screw Terminal | - | - | 16.8 VDC | 2.4 VDC | 30 ms | 10 ms | -50°C ~ 55°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
G2R-1-T-AC240RELAY GEN PURPOSE SPDT 10A 240V |
136 |
|
Datasheet |
G2R | Tray | Active | Chassis Mount | 240VAC | SPDT (1 Form C) | 10 A | 380VAC, 125VDC - Max | 3800VA, 1250W | 3.8 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | Sealed - Flux Protection | - | 192 VAC | 72 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
|
T92S7A22-24RELAY GEN PURPOSE DPST 30A 24V |
287 |
|
Datasheet |
T92 | Bulk | Active | Chassis Mount | 24VAC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 167 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 19.2 VAC | 2.4 VAC | 15 ms | 15 ms | -55°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
G2R-14 AC240RELAY GEN PURPOSE SPDT 8A 240V |
472 |
|
Datasheet |
G2R | Tray | Active | Through Hole | 240VAC | SPDT (1 Form C) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 3.8 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 192 VAC | 72 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|

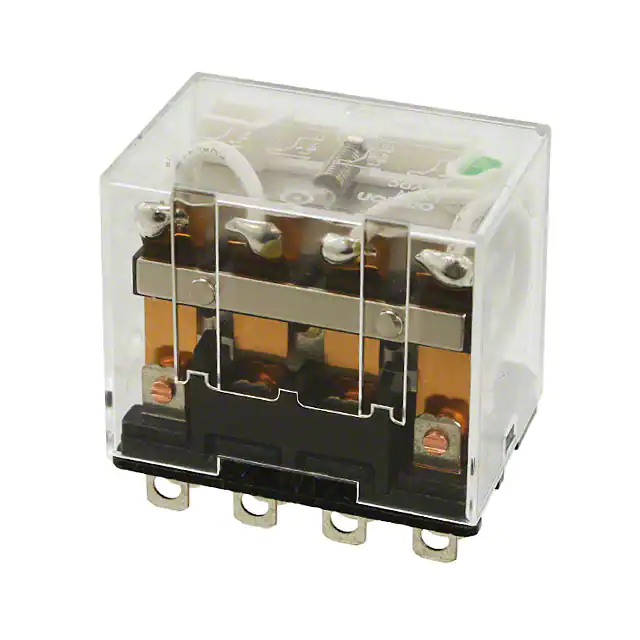

LY4-0-DC24RELAY GEN PURPOSE 4PDT 10A 24V |
202 |
|
Datasheet |
LY | Bulk | Active | Through Hole | 24VDC | 4PDT (4 Form C) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 69 mA | Non Latching | - | PC Pin | - | - | 19.2 VDC | 2.4 VDC | 25 ms | 25 ms | -25°C ~ 40°C | Silver Alloy | General Purpose | - | - |
|
|
T92P7A22-24RELAY GEN PURPOSE DPST 30A 24V |
4,615 |
|
Datasheet |
T92 | Bulk | Active | Chassis Mount | 24VAC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 167 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 19.2 VAC | 2.4 VAC | 15 ms | 15 ms | -55°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
LY4-DC12RELAY GEN PURPOSE 4PDT 10A 12V |
183 |
|
Datasheet |
LY | Bulk | Active | Socketable | 12VDC | 4PDT (4 Form C) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 120 mA | Non Latching | - | Plug In | - | - | 9.6 VDC | 1.2 VDC | 25 ms | 25 ms | -25°C ~ 40°C | Silver Alloy | General Purpose | - | - |
|
AHES4191RELAY GEN PURPOSE 3PST 35A 12V |
1,927 |
|
Datasheet |
HE-S | Tray | Active | Through Hole | 12VDC | 3PST-2NO/1NC (2 Form A, 1 Form B) | 35 A | 277VAC - Nom | - | 157 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 0.6 VDC | 30 ms | 10 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
T92S7A22-240RELAY GEN PURPOSE DPST 30A 240V |
1,046 |
|
Datasheet |
T92 | Bulk | Active | Chassis Mount | 240VAC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 16.7 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 192 VAC | 24 VAC | 15 ms | 15 ms | -55°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
LY4-AC100/110RELAY GEN PURPOSE 4PDT 10A 110V |
176 |
|
Datasheet |
LY | Bulk | Active | Socketable | 110VAC | 4PDT (4 Form C) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 21.8 mA | Non Latching | - | Plug In | - | - | 88 VAC | 33 VAC | 25 ms | 25 ms | -25°C ~ 40°C | Silver Alloy | General Purpose | - | - |
|
ADJ54005RELAY GEN PURPOSE DPDT 10A 5V |
135 |
|
Datasheet |
ADJ | Box | Active | Through Hole | 5VDC | DPDT (2 Form C) | 10 A | 250VAC - Max | 2500VA | 50 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 3.5 VDC | - | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO), Gold (Au) | General Purpose | - | - |
|
T92P11D22-24RELAY GEN PURPOSE DPDT 30A 24V |
588 |
|
Datasheet |
T92 | Bulk | Active | Chassis Mount | 24VDC | DPDT (2 Form C) | 30 A | 600VAC - Max | 18000VA | 70.8 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 18 VDC | 2.4 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
ADZS22112RELAY GEN PURPOSE SPST 90A 12V |
141 |
|
Datasheet |
ADZS | Tray | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 90 A | 276VAC - Max | 24840VA | 250 mA | Latching, Dual Coil | - | Screw Terminal | - | - | 8.4 VDC | - | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
